23
15. Fixating Y-axis Motor Cable
Required parts:
• 3× Profiler Seal

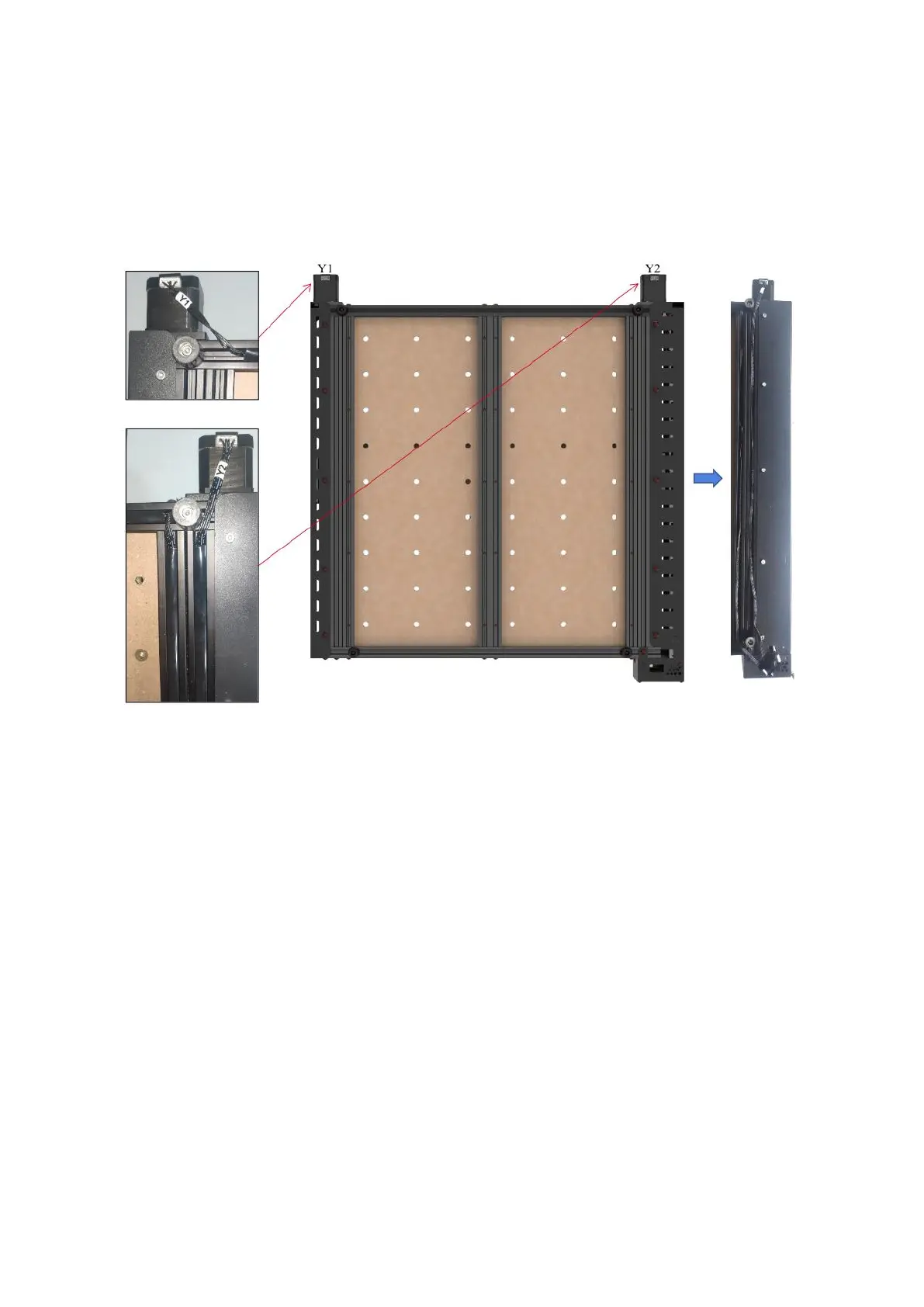

Gently guide the Y-axis motor wire into the dedicated slot located at the bottom of the
setup. To ensure a secure fit, firmly press the profile seal onto the designated spot,
providing both protection and stability.
With the preparatory steps completed, proceed to delicately insert the motor line into
the awaiting Y-axis stepper motor port. This pivotal connection not only facilitates
seamless communication but also contributes to the overall efficiency and precision of
the system's performance.
