Set up TTC450 Pro
8
Set up TTC450 Pro
9
Required parts
775 spindle motor*1
775 motor chuck*1
3.0 hexagonal wrench
4.0 hexagonal wrench
M5X12 screw*2
Cup head M5X12 screw*2

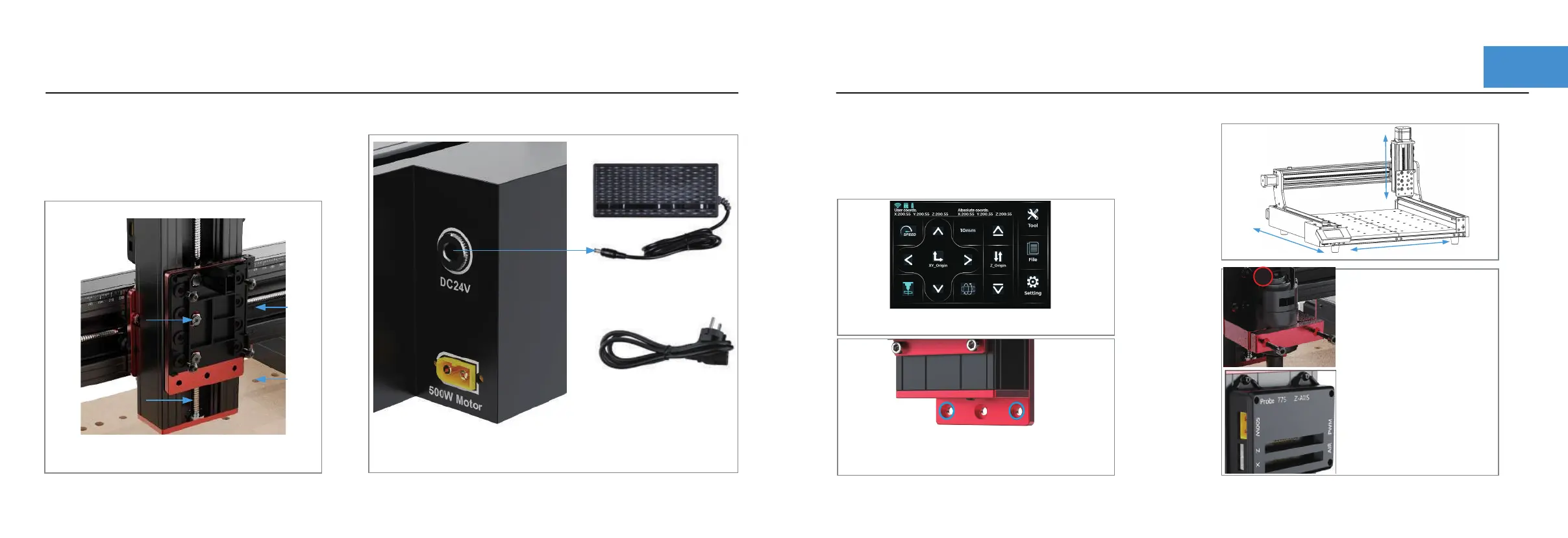

Step 5 ：775 motor chuck installation
Required parts
M5X8 screws through the Motor protection cover to
lock the Z-axis assembly.
Step 4 ：Installation of the motor housing base and access to the power supply
Power adapter*1
Power cable*1
M5X8 screw*4
M5X12 screwS lock the motor chuck through the
other two holes of the Z-axis assembly.
Place the 775 spindle
motor in the motor chuck
Cup head M5X12 screws
lock the rear through the
front of the motor chuck.
Red dot connected to red
cable.
Click the X+axis to move to the right.Click Z-axis to
move down.
500W spindle input
Power adapter
Power cable
Connecting the Power adapter to the Power cable and pluging into the
socket of the machine to supply power to the machine.
X+
Z-
Z+
X-
Y-
Y+
Z+
Z-
X+X-
Y-
Y+
