TXR 425 - Introduction

Standard Frequency Series Generators
Operation
1
M-2008-7-14
SECTION 1
INTRODUCTION
This manual contains all the information necessary to understand and operate the Standard Frequency
Generators with Rad Consoles. It provides a general description, safety and regulatory information, operating
instructionsandspecicationsconcerningtheequipment.
This standard frequency X-ray generator is designed for general radiography. It provides all the advantages
of full wave generators including highest reliability, long life, lower repair costs, greater accuracy and
consistency.
The generator is controlled by multiple processors providing simple technique selection, exposure consistency,
efcientoperationandextendedtubelife.Self-diagnosticsmakesservicingeasy,reducingdowntime.
Allfunctions,displaysandcontrolsarelogicallyarranged,easilyaccessibleandidentiedtopreventconfusion.
Technique factors are chosen by using simple selectors and displayed on LED readouts on the console.

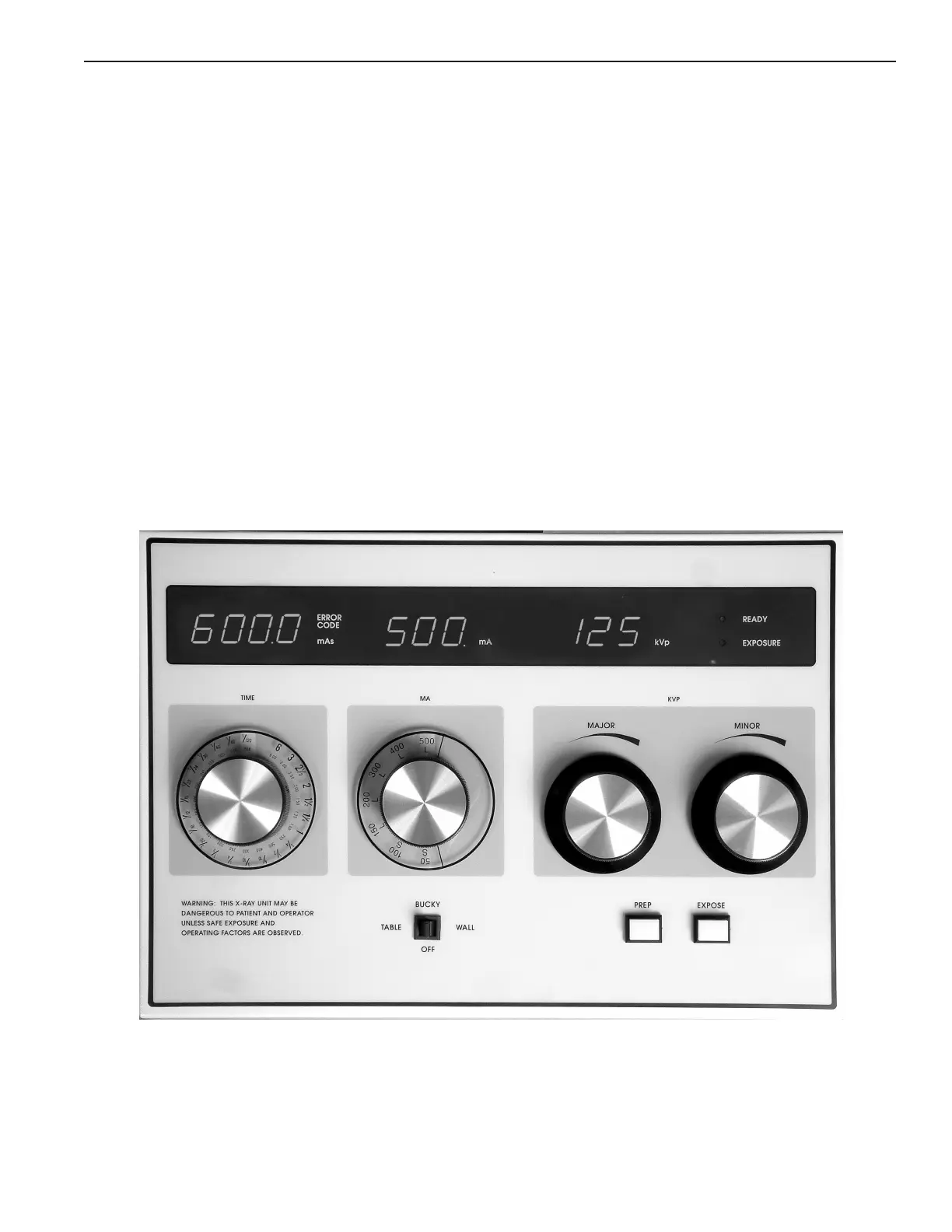

Illustration 1-1
Rad Console
NOTICE:Model325and425Seriesindicates50-400ma•525Seriesindicates50-500ma
The generator consists of the following essential parts.
• ControlConsole,operatorcontrolsanddisplaysforradiographicoperations.Theconsoleisdesigned
for ease of operation. It is the interface with the Power Cabinet and other related X-ray system
devices.
• HVGenerator(HighVoltageTransformer)
