7.1 CONTROLS
7.1.1 Buttons and Knobs
The P5300 portable radios feature two rotary control knobs, an emergency button, and a dual-position A/B switch
located on the top of the radio (Figure 7-2). The Push-To-Talk (PTT) button and two option buttons are located on
th
e side (Figure 7-3).

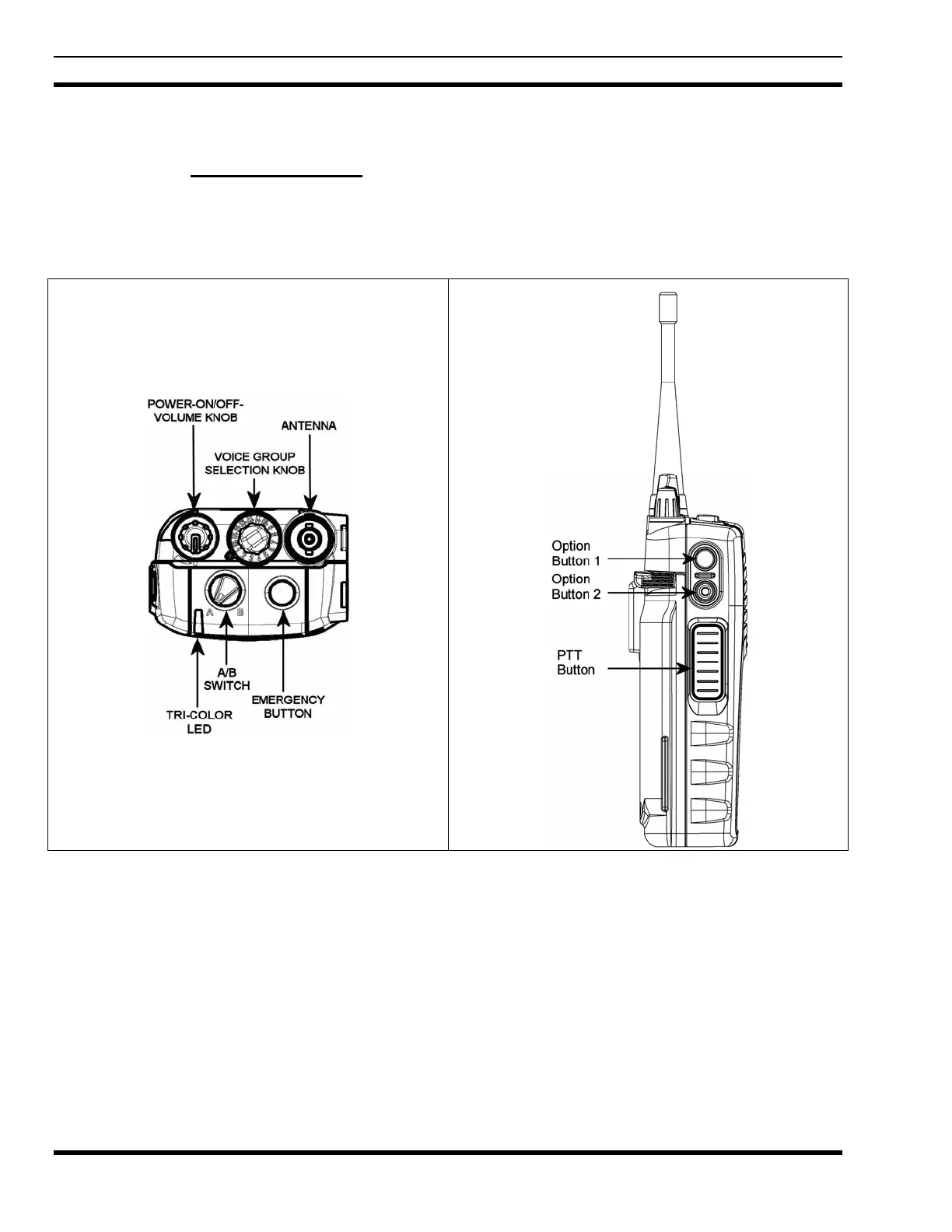

Figure 7-2: Top View Figure 7-3: Side View
