7.1.2 Keypad

The front mounted keypad of the P5350 “Scan” model has six buttons and P5370 “System” model has 15

buttons. Refer to Figure 7-4: P5350 “Scan” Radio Front Panel and Figure 7-5: P5370 “System” Model

Front Panel, respectively

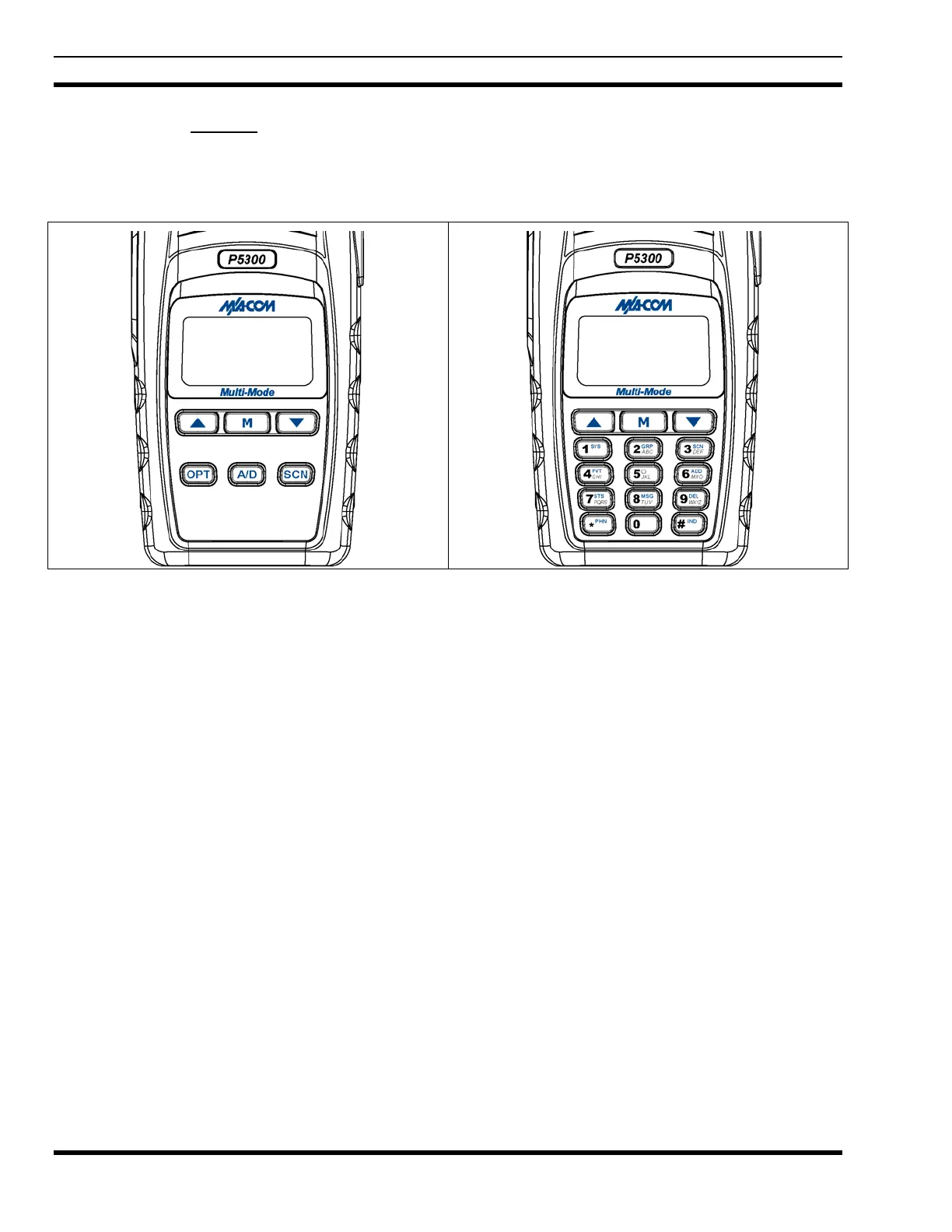

Figure 7-4: P5350 “Scan” Radio Front Panel Figure 7-5: P5370 “System” Model Front Panel
