TFP1326
Page 14 of 22
Note:
When inlet pressure falls
below set pressure.
Note:
When inlet pressure falls
below set pressure.
Note:
When inlet pressure falls
below set pressure.
0 100 200 300 400 500
1 PSI = 0,06895 BAR; 1 GPM = 3,785 LPM
FLOW RATE IN GALLONS PER MINUTE (GPM)
0
2
4
6
8
10
NOMINAL PRESSURE DROP IN
POUNDS PER SQUARE INCH (PSI)
0 100 200 300 400 500 600 700 800 900
0
2
4
6
8
10
0 200 400 600 800 1000 1200 1400 1600 1800
0
1
2
3
4
5
6
7

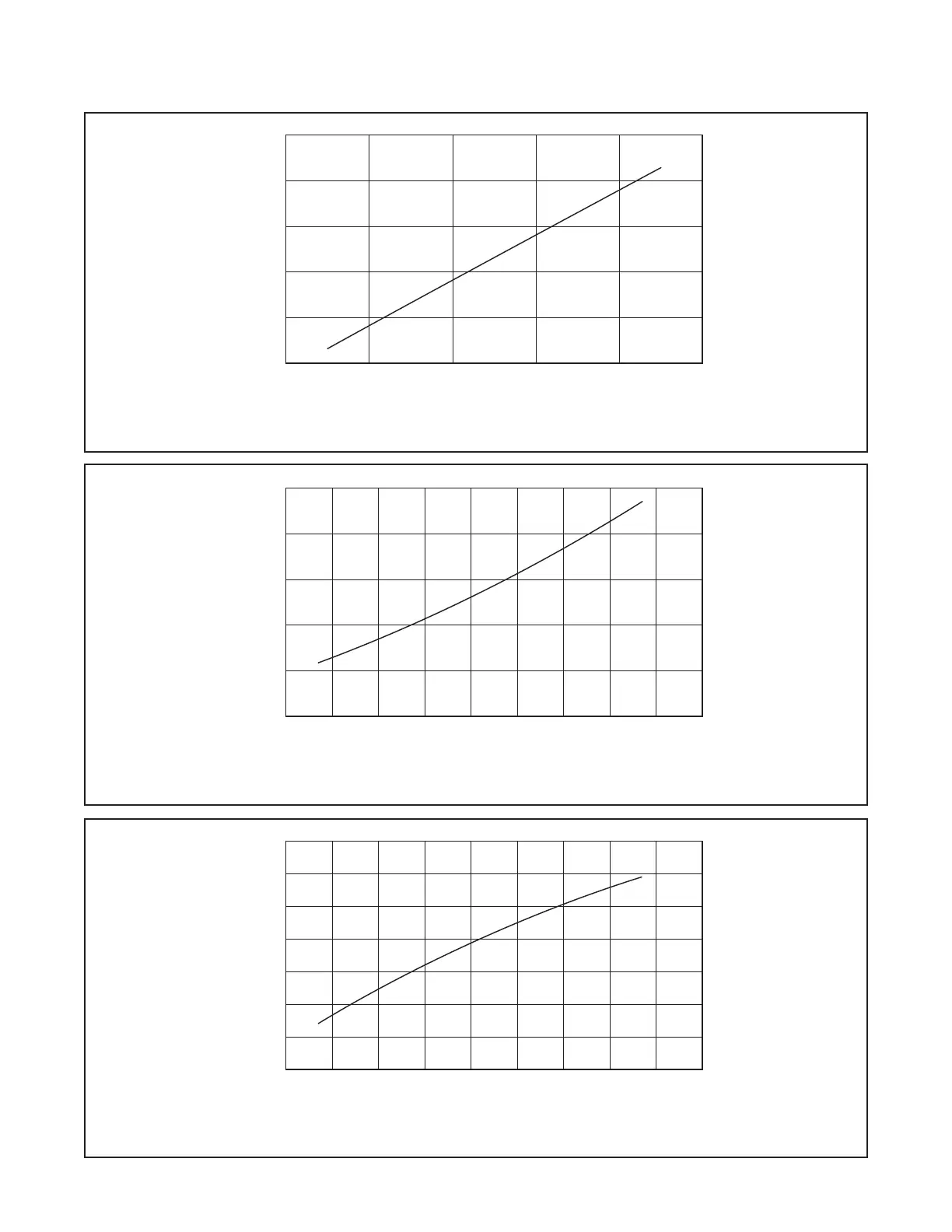

GRAPH B
4 INCH (DN100) DV-5a DELUGE VALVE WITH REMOTE-RESETTING, PRESSURE-REDUCING TRIM
MINIMUM PRESSURE DROP
GRAPH A
3 INCH (DN80) DV-5a DELUGE VALVE WITH REMOTE-RESETTING, PRESSURE-REDUCING TRIM
MINIMUM PRESSURE DROP
GRAPH C
6 INCH (DN150) DV-5a DELUGE VALVE WITH REMOTE-RESETTING, PRESSURE-REDUCING TRIM
MINIMUM PRESSURE DROP
