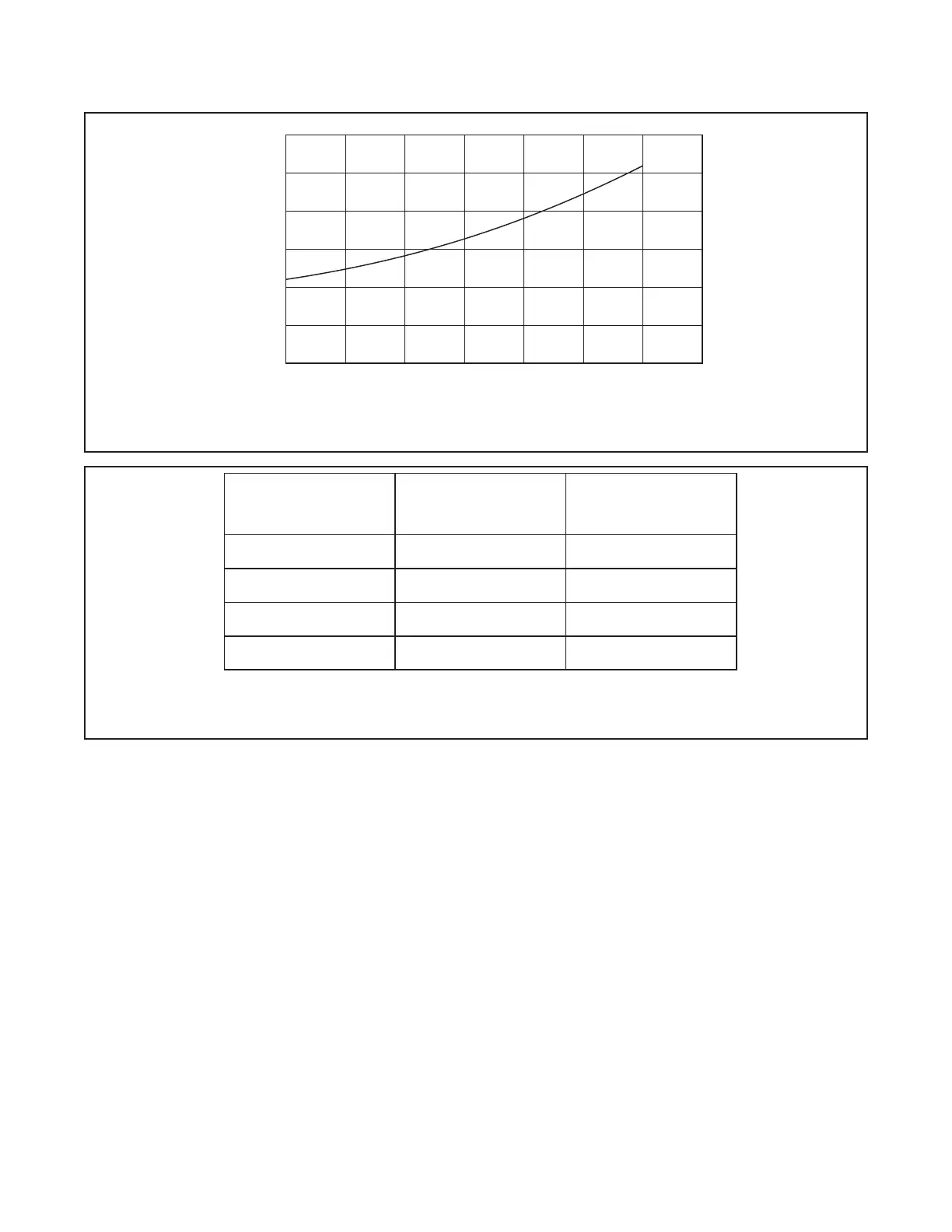

TFP1326
Page 15 of 22
Note:
When inlet pressure falls
below set pressure.
Nominal Valve Size
ANSI Inches
(DN)
Max Rated Inlet
Pressure
psig
(bar)
Outlet
Pressure Setting Range
psig
(bar)
3
(80)
250
(16,0)
90 - 175
(6,2 - 12,1)
4
(100
250
(16,0)
80 - 175
(5,5 - 12,1)
6
(150)
250
(16,0)
90 - 175
(6,2 - 12,1)
8
(200)
250
(16,0)
80 - 175
(5,5 - 12,1)
0 500 1000 1500 2000 2500 3000 3500
0
1
2
3
4
5
6
GRAPH D
8 INCH (DN200) DV-5a DELUGE VALVE WITH REMOTE-RESETTING, PRESSURE-REDUCING TRIM
MINIMUM PRESSURE DROP
TABLE B
DV-5a DELUGE VALVE WITH REMOTE-RESETTING,
PRESSURE-REDUCING TRIM
MAXIMUM INLET PRESSURE AND OUTLET SETTING RANGE
