Tyco Star A-1 User Manual

STAR SPRINKLER INC.
Page 4
2-2.1.31
36
28
8
34
44
12
43
18
31
45
16
4
17
27
39
29
15
37
26
42
37
25
37
11
37
26
10
7
14
29
3
1
13
21
31
31
6
29
4
32
21
5
13
35
33
20
24
41
9
37
31
14
19
31
18
11
38
22
37
30
23
39
24
40
2
3
13

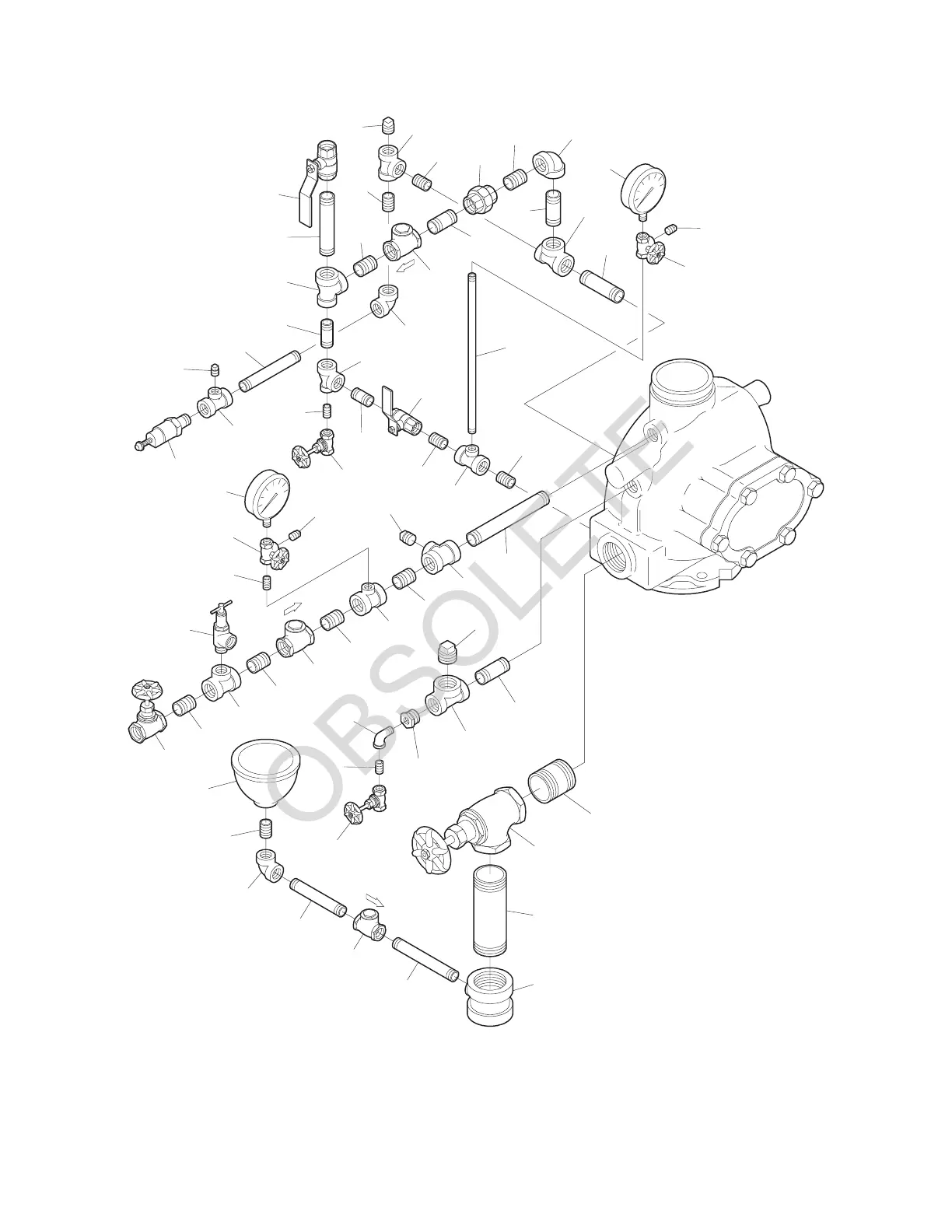

FIGURE 4 — 4 INCH (DN100) MODEL A-1 DRY PIPE VALVE TRIM (#1210)
NO. DESCRIPTION....QTY. PART
1 250 lb. Air Pressure
Gauge ......... 1 #923001005
2 300 lb. Water Pressure
Gauge ......... 1 #923001003
3 1/4" Gauge Test Valve . 2 #460051002
4 1/4"GlobeValve.... 2 #460471002
5 1/2" Automatic Drain
Valve,S410 ...... 1 #923001004
6 1/2"BallValve..... 1 #923001002
7 1/2" Pressure Relief
Valve.......... 1 2283
8 1/2" Swing Check Valve 1 #460491004
9 3/4"BallValve..... 1 #923001007
10 3/4"GlobeValve.... 1 #460471005
NO. DESCRIPTION .....QTY. PART
11 3/4" Swing Check Valve 2 #460491005
12 2"AngleValve .....1 #460481009
13 1/4"Plug ........3 CH
14 1/2"Plug ........2 CH
15 1"Plug..........1 CH
16 3/4" x 1/4" Bushing . . . 1 CH
17 1/4"StreetElbow....1 CH
NO. DESCRIPTION . . . .QTY. PART
18 1/2"90°Elbow..... 2 CH
19 1/2"Tee ........1 CH
20 1/2" x 1/4" x 1/2" Tee . 1 CH
21 1/2" x 1/2" x 1/4" Tee . 2 CH
22 3/4"Union ....... 1 CH
23 3/4"90°Elbow..... 1 CH
24 3/4" x 1/2" x 3/4" Tee . 2 CH
25 3/4" x 3/4" x 1/4" Tee . 1 CH
26 3/4" x 3/4" x 1/2" Tee . 2 CH
27 3/4" x 3/4" x 1" Tee . . 1 CH
28 2" x 2" x 1/2" Tee . . . 1 CH
29 1/4" x close Nipple . . . 3 CH
30 1/4"x14"Nipple.... 1 CH
31 1/2" x close Nipple . . . 5 CH
32 1/2" x 1-1/2" Nipple . . 1 CH
33 1/2"x2"Nipple..... 1 CH
34 1/2"x5"Nipple..... 1 CH
35 1/2" x 5-1/2" Nipple . . 1 CH
36 1/2"x6"Nipple..... 1 CH
37 3/4" x close Nipple . . 6 CH
38 3/4"x2"Nipple..... 1 CH
39 3/4" x 2-1/2" Nipple . . 2 CH
40 3/4" x 3-1/2" Nipple . . 1 CH
41 3/4"x5"Nipple..... 1 CH
42 3/4" x 7-1/2" Nipple . . 1 CH
43 2" x 2-1/2" Nipple . . . 1 CH
44 2" x 6-1/2" Nipple . . . 1 CH
45 Drip Funnel ....... 1 2360
CH: Common Hardware
OBSOLETE
