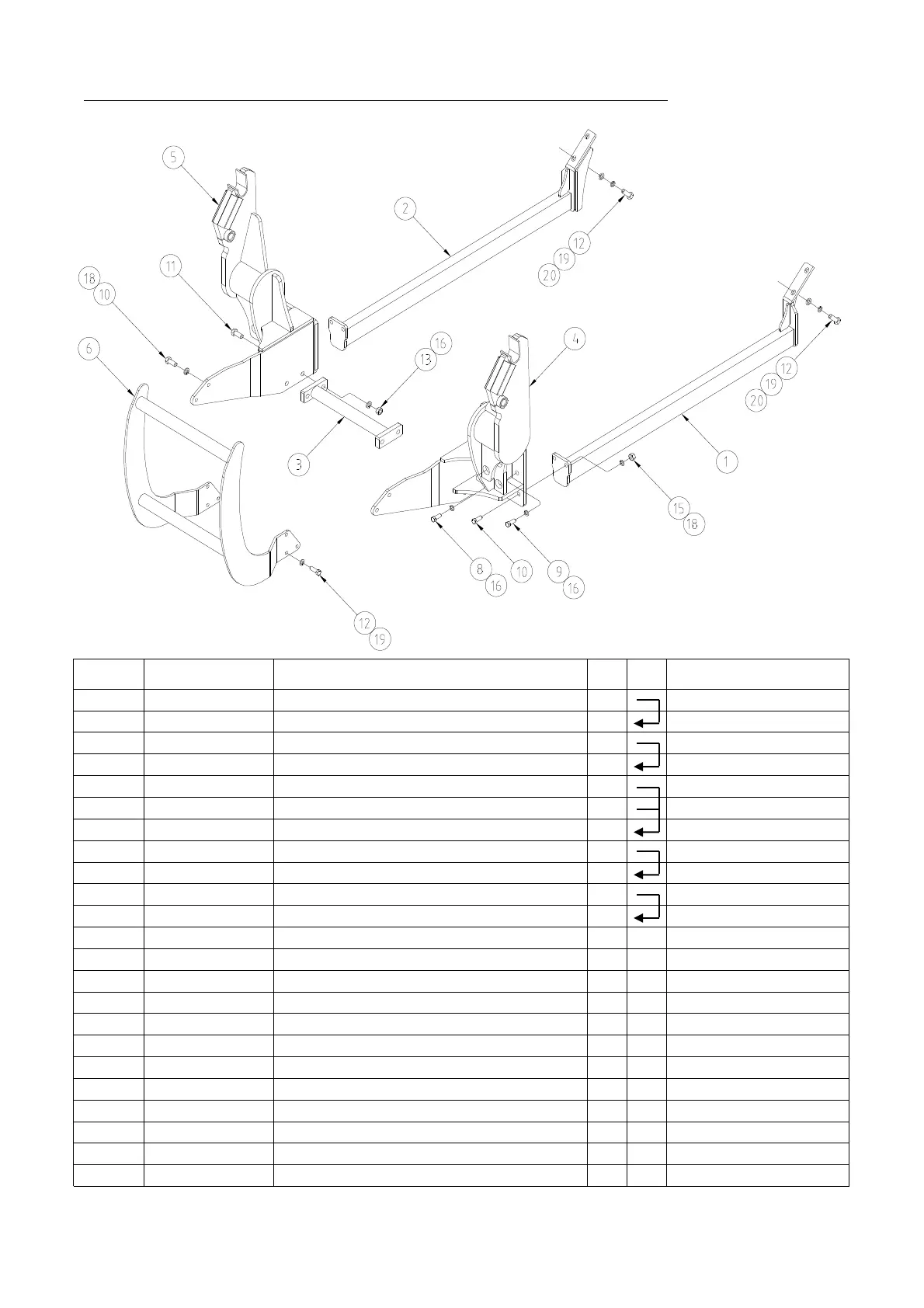

MOUNTING FRAME ASSEMBLY (UPDATED 09, 20, 2007)
REF.NO
REF.NOREF.NO
REF.NO PART.NO
PART.NOPART.NO
PART.NO DESCRIPTION
DESCRIPTIONDESCRIPTION
DESCRIPTION QTY
QTYQTY
QTY I.C
I.CI.C
I.C SERIAL OR DATE
SERIAL OR DATESERIAL OR DATE
SERIAL OR DATE
1 LYS12-11100-01 REAR FRAME-LH 1
1 LYS12-11100-02 REAR FRAME-LH 1 70223010~
2 LYS12-11200-01 REAR FRAME-RH 1
2 LYS12-11200-02 REAR FRAME-RH 1 70223010~
3 LYS05-23000-01 CROSS BAR 1
3 LYS05-23000-02 CROSS BAR 1 70223010~
3 FT407-24200 CROSS BAR 1 09.20.2007~
4 LYS12-11300-01 MOUNTING FRAME LH 1
4 LYS12-11300-04 MOUNTING FRAME LH 1 70223010~
5 LYS12-11400-01 MOUNTING FRAME RH 1
5 LYS12-11400-04 MOUNTING FRAME RH 1 70223010~
6 LYS12-12200-01 GRILLE 1
8 10191-M1606-30 HEX.BOLT, M16-2.0P 30L 4
9 10191-M1606-45 HEX.BOLT, M16-2.0P 45L 4
10 10191-M1406-50 HEX.BOLT, M14-2.0P 50L 8
11 10191-M1606-55 HEX.BOLT, M16-2.0P 55L 4
12 10191-M1205-40 HEX.BOLT, M12-1.75P 40L 10
13 10261-M1606 HEX.NUT, M16-2.0P 4
15 10261-M1406 HEX.NUT, M14-2.0P 4
16 10316-M1600 WASHER SPRING, M16 12
18 10316-M1400 WASHER SPRING, M14 8
19 10316-M1200 WASHER SPRING, M12 10
20 10321-M1200 WASHER PLAIN, M12 4
