TYM LT600 - Hydraulic Connecting Components

To Next Page

To Previous Page

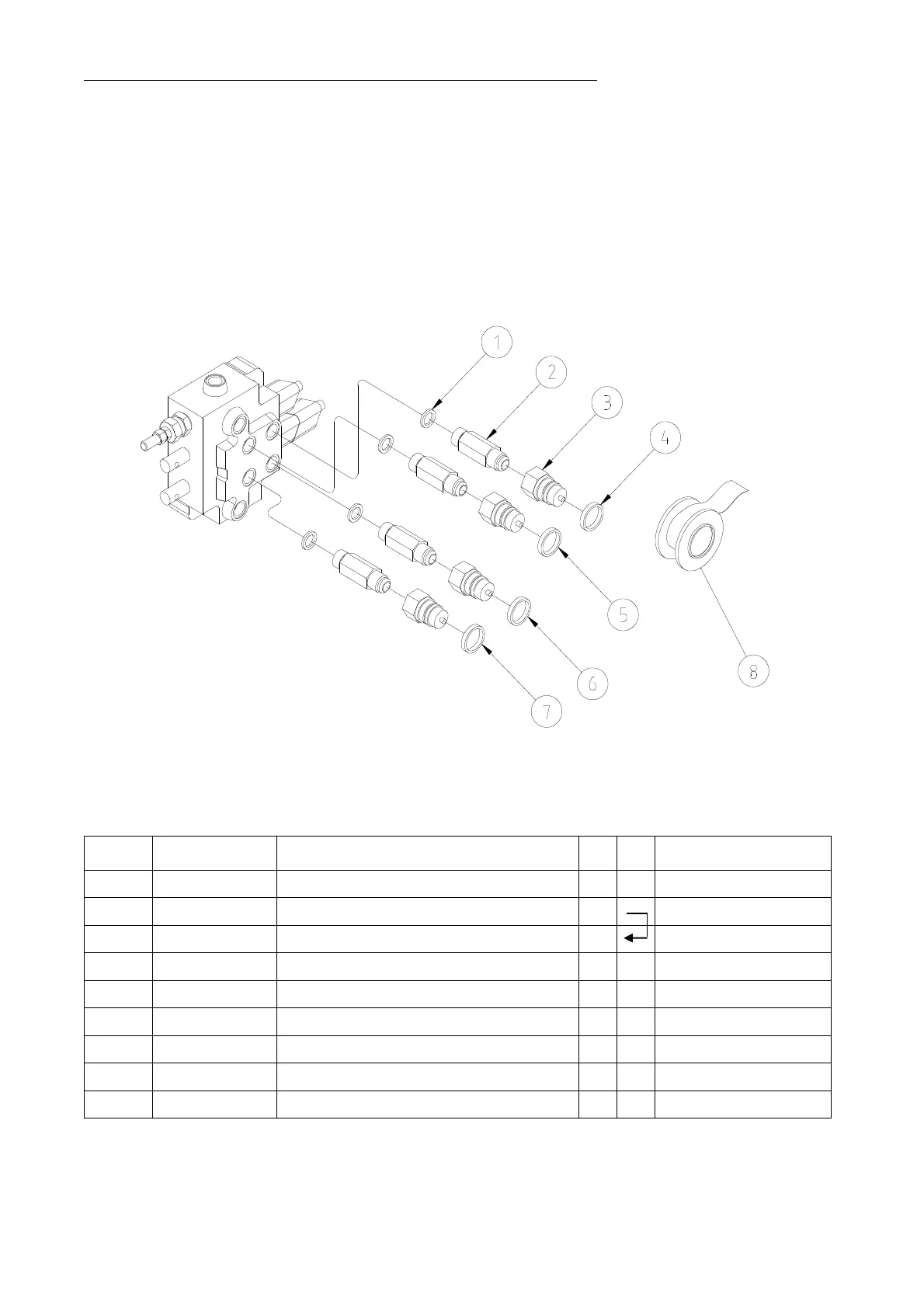

HYDRAULIC CONNECTING

(UPDATED 09, 18, 2008)

- 32 -

REF.NO

REF.NOREF.NO

REF.NO PART.NO

PART.NOPART.NO

PART.NO DESCRIPTION

DESCRIPTIONDESCRIPTION

DESCRIPTION QTY

QTYQTY

QTY I.C

I.CI.C

I.C SERIAL OR DATE

SERIAL OR DATESERIAL OR DATE

SERIAL OR DATE

1 81300-S0906 O-RING, Φ1.98xΦ11.89 (AS#906)-HS90 4

2 802N1-F75P4-62 NIPPLE, 9/16-18UNF(O-RING), PF3/8, 46L 4 WRONG NO.

2 802N0-F75T4-6L NIPPLE, 9/16-18UNF, O-RINGxPT3/8, 46L 4

3 80410-T3360 QUICK COUPLER, PT3/8" MALE 4

4 50120-M103W CABLE TIE, 4"x0.1"-WHITE 1

5 50120-M103R CABLE TIE, 4"x0.1"-RED 1

6 50120-M103B CABLE TIE, 4"x0.1"-BLUE 1

7 50120-M103Y CABLE TIE, 4"x0.1"-YELLOW 1

8 99400-00001 TEFLON TAPE 1
