TYM LT600 User Manual

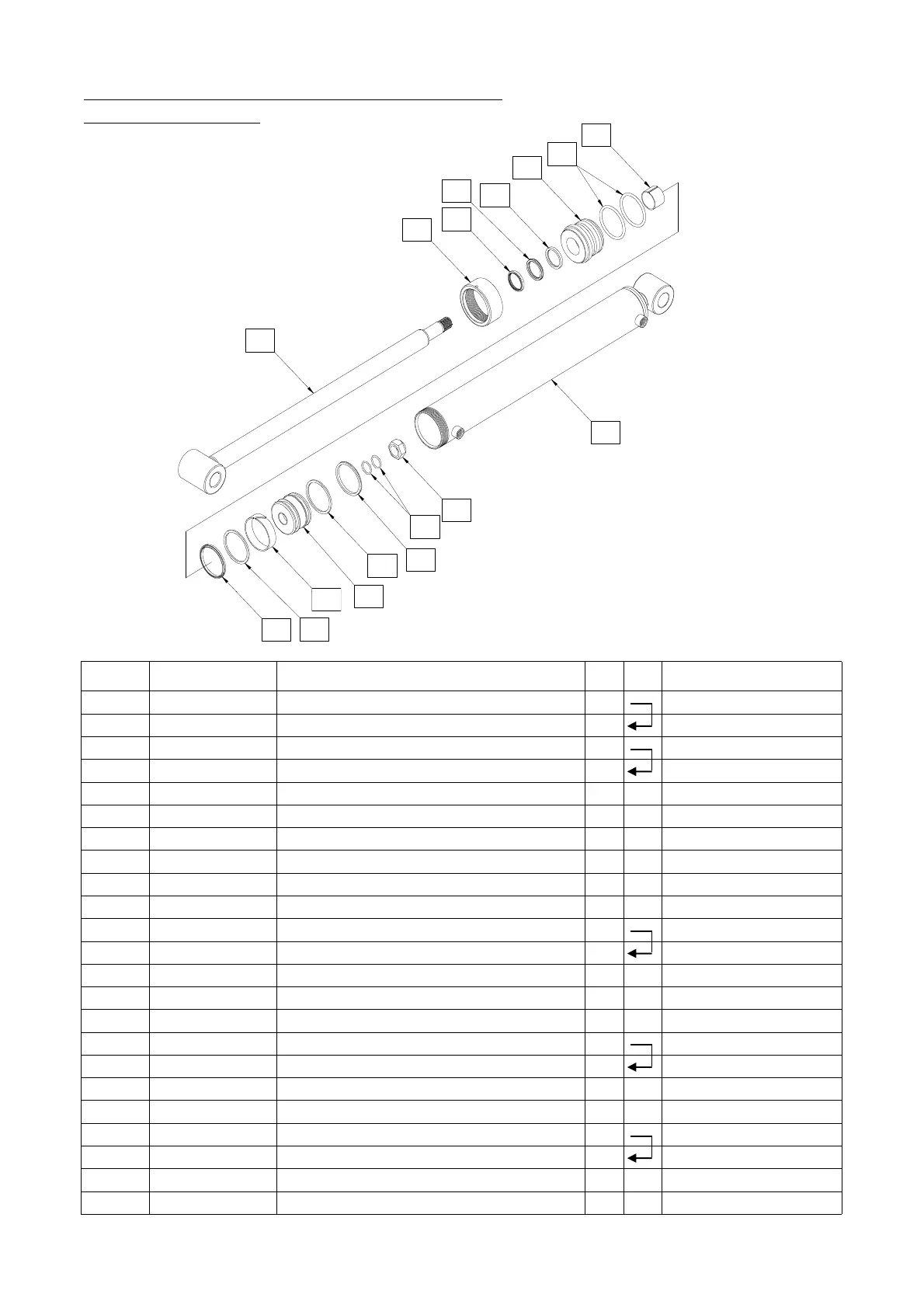

BOOM CYLINDER (UPDATED 09, 20, 2007)
(SELF-LEVEL TYPE)
1
2
4
5
6
3
7
8
15
9
12
11
10
14
REF.NO
REF.NOREF.NO
REF.NO PART.NO
PART.NOPART.NO
PART.NO DESCRIPTION
DESCRIPTIONDESCRIPTION
DESCRIPTION QTY
QTYQTY
QTY I.C
I.CI.C
I.C REMARK
REMARKREMARK
REMARK
0 2260-1000 BOOM CYLINDER ASS'Y 1
0 225603 BOOM CYLINDER ASS'Y 1
03.01.2007~
1 2260-1100 ROD ASS'Y 1
1 225603-R ROD ASS'Y 1
03.01.2007~
2 OC60-7037 CAP OUTER, Φ60x70x37L 1
3 IC60-3555 COVER INNER, Φ60x35x55L 1
4 DSSD-R035 DUST, SDR 35x43x5/6.5 1
5 UPSK-Y035 PACKING U, SKY 35x45x6 1
6 UPIS-I035 PACKING U, ISI 35x45x6 1
7 OR1B-G055 O-RING, 1BG55 2
8 DU03-5030 BUSHING DU 1
8 DU03-5020 BUSHING DU, 35x39x20 1
03.01.2007~
9 PI60-2746 PISTON, Φ60x27x46L 1
10 OR1B-G027 O-RING, 1BG27 2
11 UPOS-I060 PACKING U, OSI 60x50x6 2
12 TRBR-0050 BACKUP RING, 2
12 TRBR-0060 BACKUP RING, 60x50x3 2
03.01.2007~
13 WEWR-0060 WEARING, WR 60x55x15 1
14 NTP0-U100-C NUT, 1-14UN 1
15 2248-1200 TUBE ASS'Y 1
15 225603-T TUBE ASS'Y 1
03.01.2007~
16 IA60-3555 SEAL KIT HEAD, NO.3~8 1
17 PA60-2746 SEAL KIT POSTON, NO.9~13 1
11
12
13
9
- 33 -
