TYM LT600 - Page 37

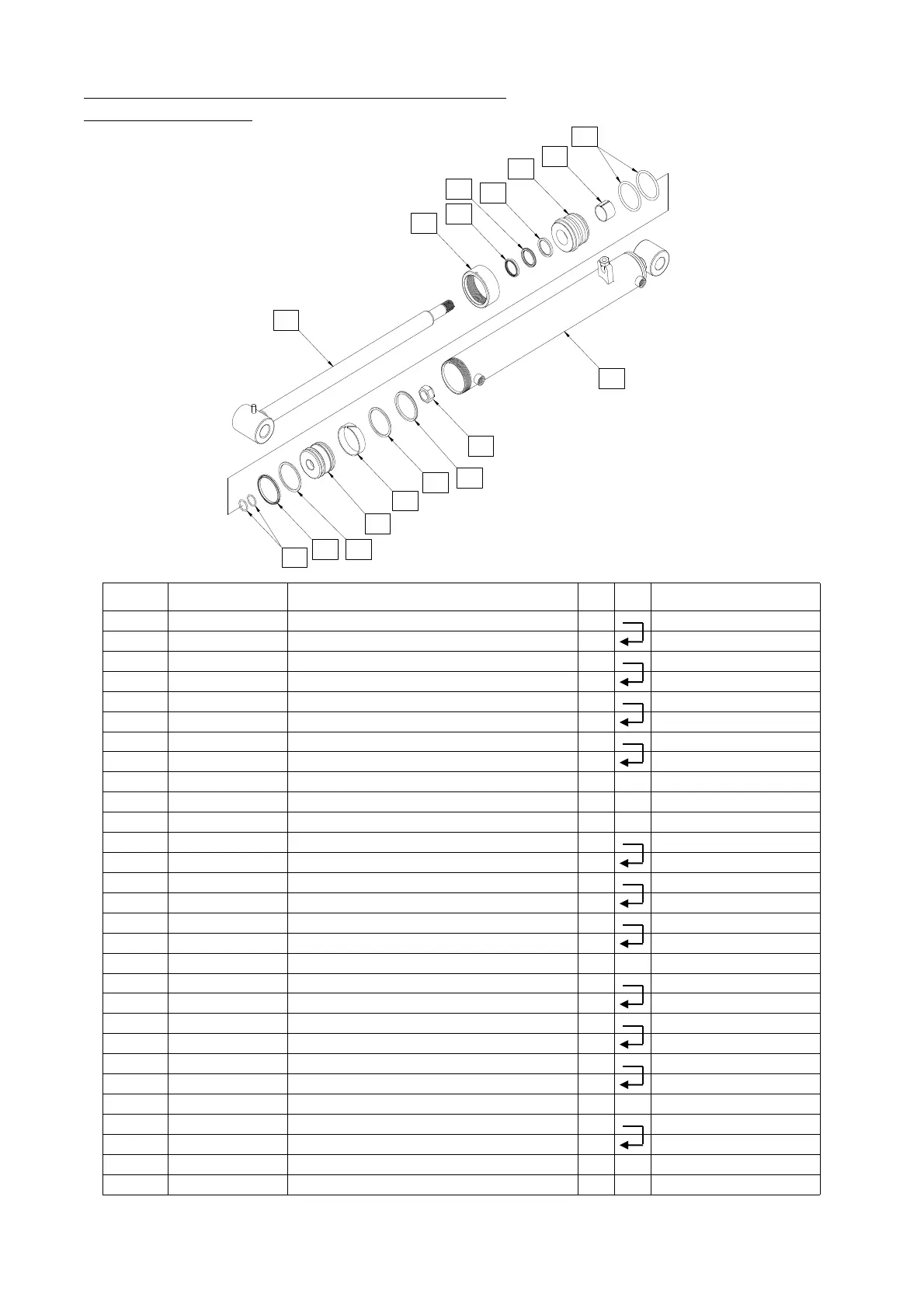

BUCKET CYLINDER (UPDATED 09, 20, 2007)
(SELF-LEVEL TYPE)
REF.NO
REF.NOREF.NO
REF.NO
PART.NO
PART.NOPART.NO
PART.NO
DESCRIPTION
DESCRIPTIONDESCRIPTION
DESCRIPTION
QTY
QTYQTY
QTY
I.C
I.CI.C
I.C
REMARK
REMARKREMARK
REMARK
1
2
4
5
6
3
8
7
15
11
12
13
9
12
11
10
14
REF.NO
REF.NOREF.NO
REF.NO
PART.NO
PART.NOPART.NO
PART.NO
DESCRIPTION
DESCRIPTIONDESCRIPTION
DESCRIPTION
QTY
QTYQTY
QTY
I.C
I.CI.C
I.C
REMARK
REMARKREMARK
REMARK
0 2243-4200 BUCKET CYLINDER ASS'Y-RH 1
0 226202 BUCKET CYLINDER ASS'Y-RH 1
03.01.2007~
1 2243-4200 ROD ASS'Y 1
1 226202-R ROD ASS'Y 1
03.01.2007~
2 OC60-7037 CAP OUTER, Φ60x70x37L 1
2 OC60-7040 CAP OUTER, Φ60x70x40L 1
03.01.2007~
3 IC50-3555 COVER INNER 1
3 IC60-3565 COVER INNER, Φ60x35x65L 1
03.01.2007~
4 DSSD-R035 DUST, SDR 35x43x5/6.5 1
5 UPSK-Y035 PACKING U, SKY 35x45x6 1
6 UPIS-I035 PACKING U, ISI 35x45x6 1
7 DU03-5020 BUSHING DU, 35x39x20 1
7 DU03-5030 BUSHING DU, 35x39x30 1
03.01.2007~
8 OR1B-G045 O-RING 2
8 OR1B-G055 O-RING, 1BG55 2
03.01.2007~
9 PI50-2750 PISTON 1
9 PI60-2746 PISTON, Φ60x27x46L 1
03.01.2007~
10 OR1B-G027 O-RING, 1BG27 2
11 UPOS-I050 PACKING U 2
11 UPOS-I060 PACKING U, OSI 60x50x6 2
03.01.2007~
12 TRBR-0050 BACKUP RING 2
12 TRBR-0060 BACKUP RING, 60x50x3 2
03.01.2007~
13 WEWR-0050 WEARING 1
13 WEWR-0060 WEARING, WR 60x55x15 1
03.01.2007~
14 NTP0-U100-C NUT, 1-14UN 1
15 2254-4200 TUBE ASS'Y-RH 1
15 226202-T TUBE ASS'Y-RH 1
03.01.2007~
16 IA60-3565 SEAL KIT HEAD, NO.3~8 1
17 PA60-2746 SEAL KIT PISTON, NO.9~13 1
