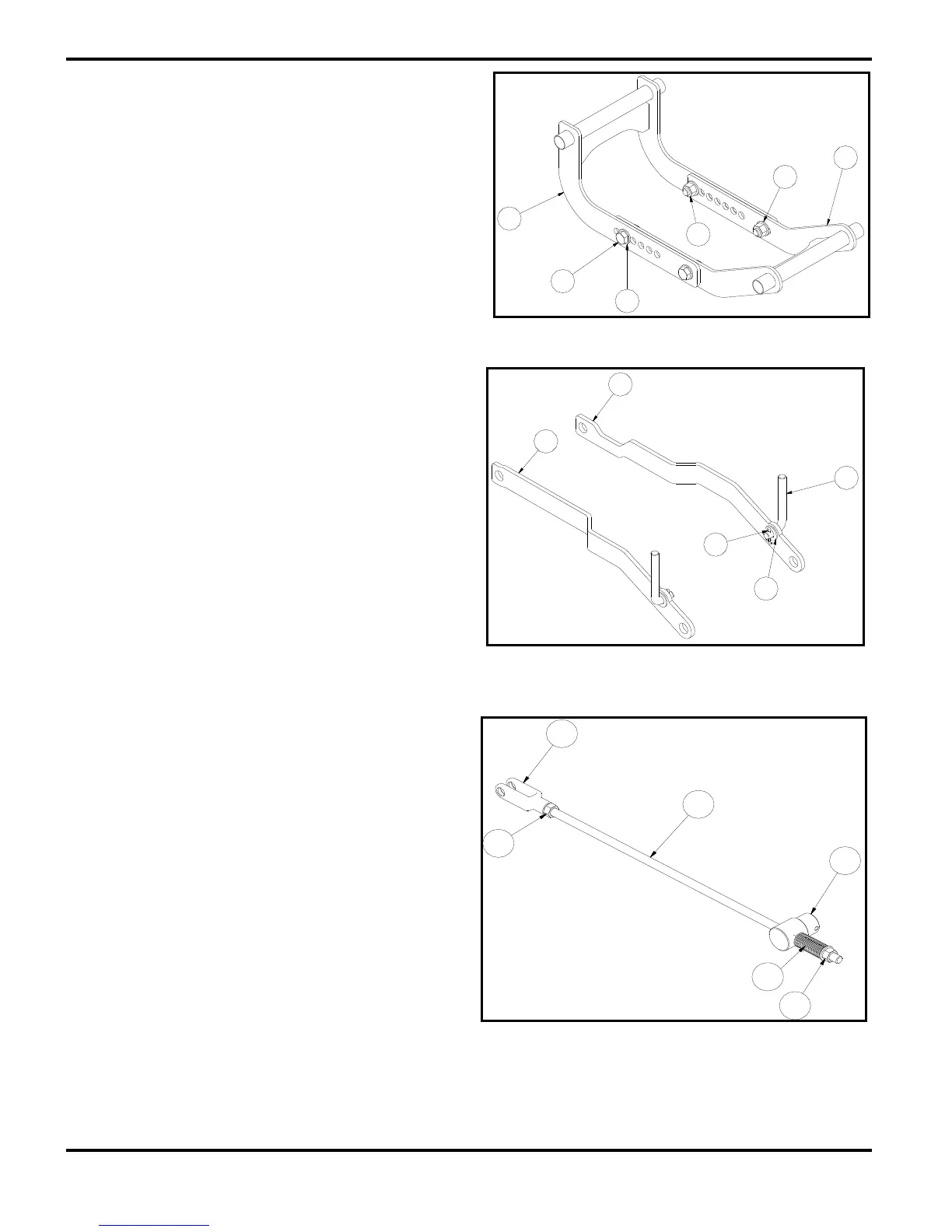

LOWER MOUNT LINK ASSEMBLY
1. MOVING WELDING ASSY-2 welded structures (5),
and the front link weldment (4) using the four
bolts to assemble. M14 X 40mm Bolt (37),
washers (44) and nuts (49) and shown to assemble.
Tractor mower deck is installed in the end will be
adjusting.
Do not tighten at this time.
MID LINKAGE ASSEMBLY
1 And the intermediate guide connection of the
link pin 14, the link plate 17, a washer 44 and a
cotter pin (53) is used to fix it.
2. LH assemble the same way.
REAR LIFT ROD ASSEMBLY
1 Link bolt 21 to the nut 50 and the link body 20,
to assemble. Link until the end of the bolt threads
inside the body touches the edge of the links,
the links for the bolt and tighten the nut.
2 Link bolt (21) is assigned to assay pin (30),
spring (32), lock nut (42) is assembled.
Threads up to 1/4 to tighten the lock nut.
Thread shows through the top of the lock nut.
Note: The mower deck is installed, additional adjustment for the lock nut will happen in the future
12
17
14
44
53
44
5
4
37
44
49
32
20
50
21
30
42
