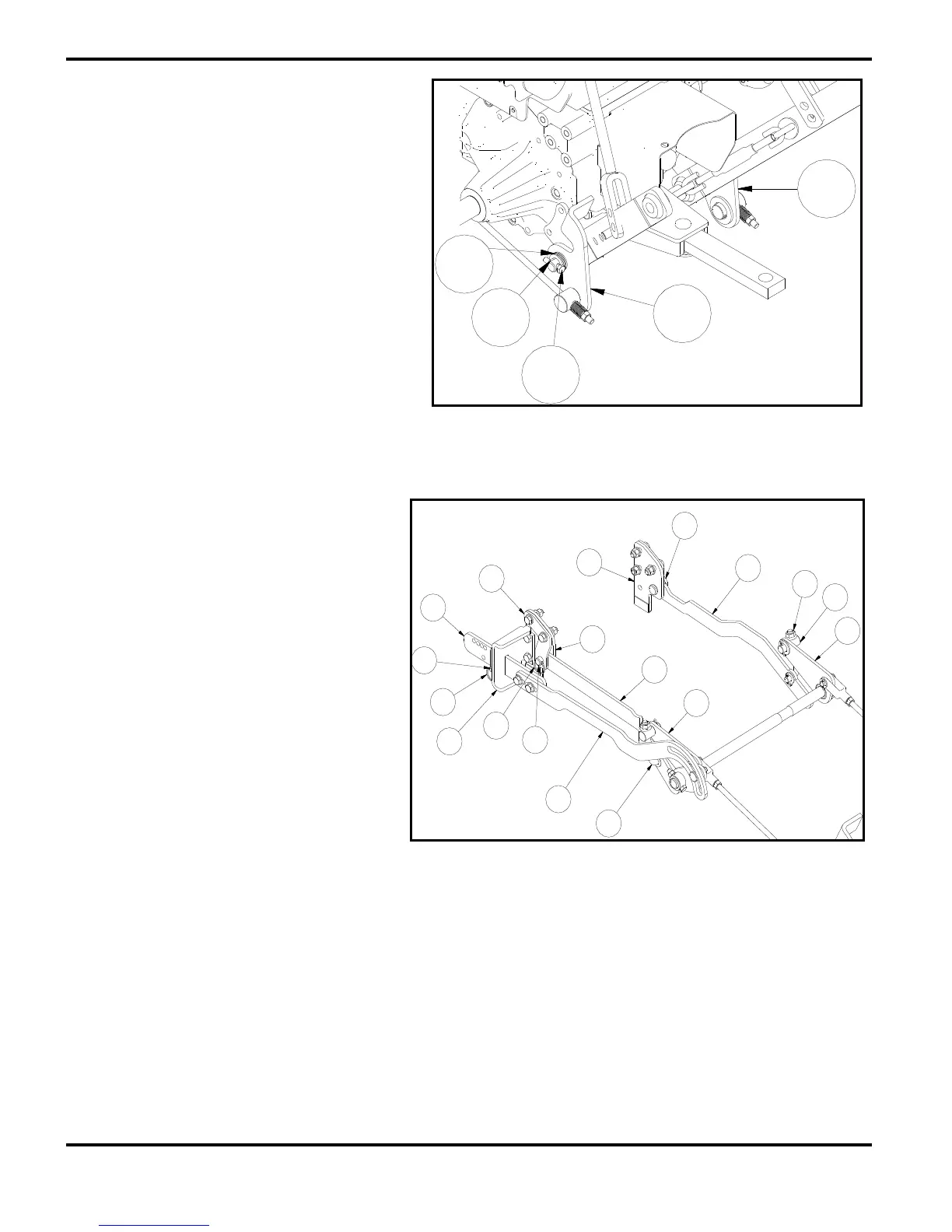

REAR LIFT INSTALLATION
1 under the tractor to push the link pin
bushings RH rear lift (23) to install. Flat
washers (59), insert four bolts M10 (40),
nut (51) with the screws.
1 under the tractor to push the link pin
bushings RH rear lift (24) to install. Flat
washers (59), insert four bolts M10 (40),
nut (51) with the screws.
MID LINKAGE INSTALLATION
1 Clevis pin (27) and the lynch pin (34) to
the right and left mid-mount (8, 9, 10)
on the right, left, middle link (11,17)
connection.
2 Install the lift rod. (14) has already been
right, on the left side of the bell crank (13)
and (15) are installed on the lift pins (28)
on the right and left middle link (11,17)
to be installed. Thread 1/2 "to (41)
lift rod (14) to tighten the lock nut to show
through the top of the nut.
3 A distance to the plate (6) and the link plate LH (12) once the rotation of the bolt assembly with the
bolt (31) is assembled. Locking pin (26) and then replacing the ring hole (34) fitted it.
51
40
24
23
59
8
10
8
9
34
27
6
34
26
7
11
12
13
15
17
41
28
14
