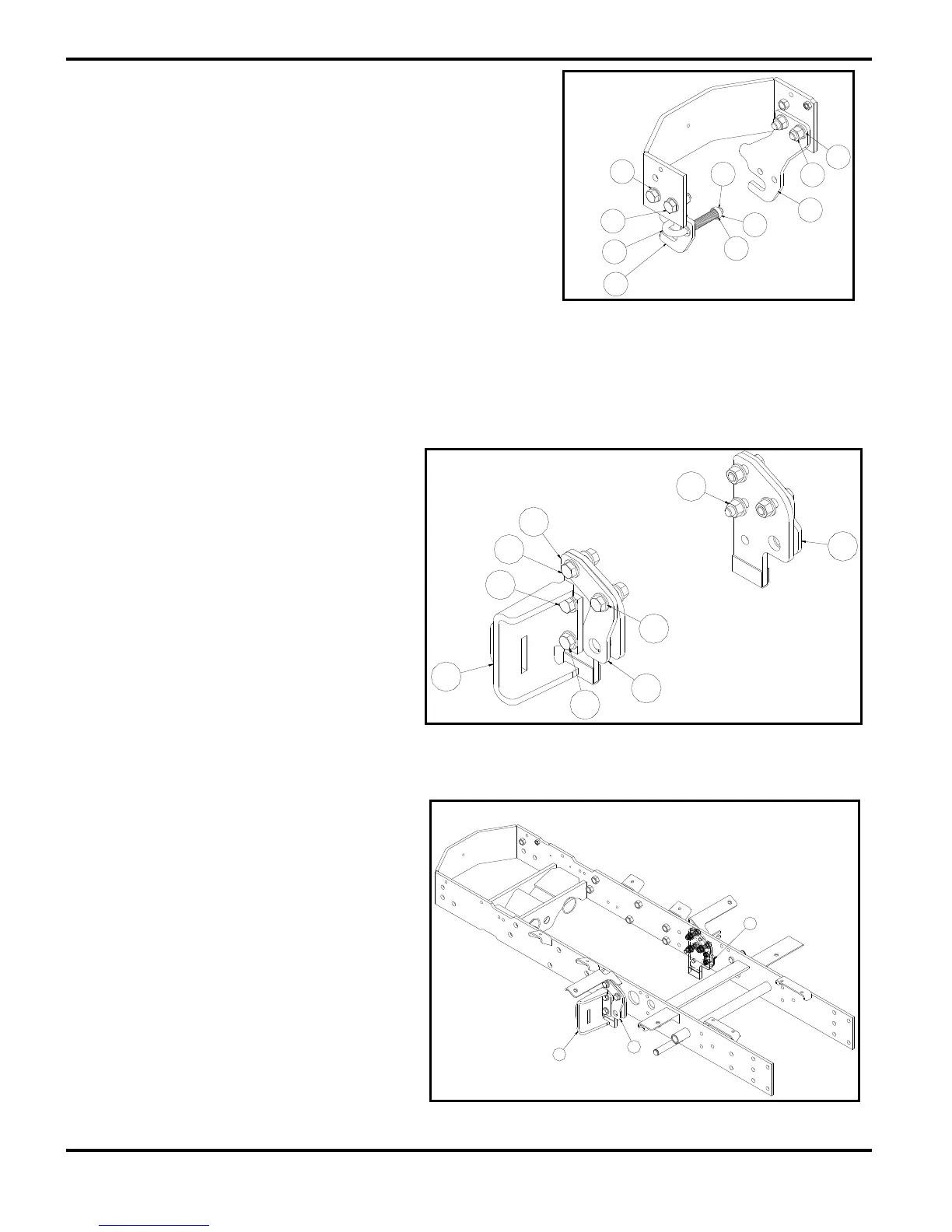

FRONT MOUNT HANGER PLATE INSTALLATION
1. Tractor on the front as shown in the illustration inside the
frame parts (1 & 2) and install it. Bolt M16 X 45mm (36),
using the four fixing plates and washers (43) and two M16
nuts (56) to assemble.
Note: The left-hand front fixed plate is pre-assembled
spring-loaded J-latch.
MID-MOUNT WELDMENT INSTALLATION
1 On the right side of the tractor (8) to the
mid-mounting bracket assembly and offset
(9,10) ANCHOR BRACKET (7) in two holes
in the bolt M12-1.75 X 45 (38),
M12-1.75 X 45 bolt (4) , at the bottom
bolt hole on the M12-1.75 X 40 (39),
washers M12 (45), and assemble the
M12 nut. Located on the outside of the
mount.
2 On the left side of the tractor bracket (10),
a tractor frame and the bracket to fit nine
people, M12-1.75 X 45 bolts (38),
M12 - 1.75 X 35 bolt (39) is used to
connect the washer (45), nut M12 the
assembly.
