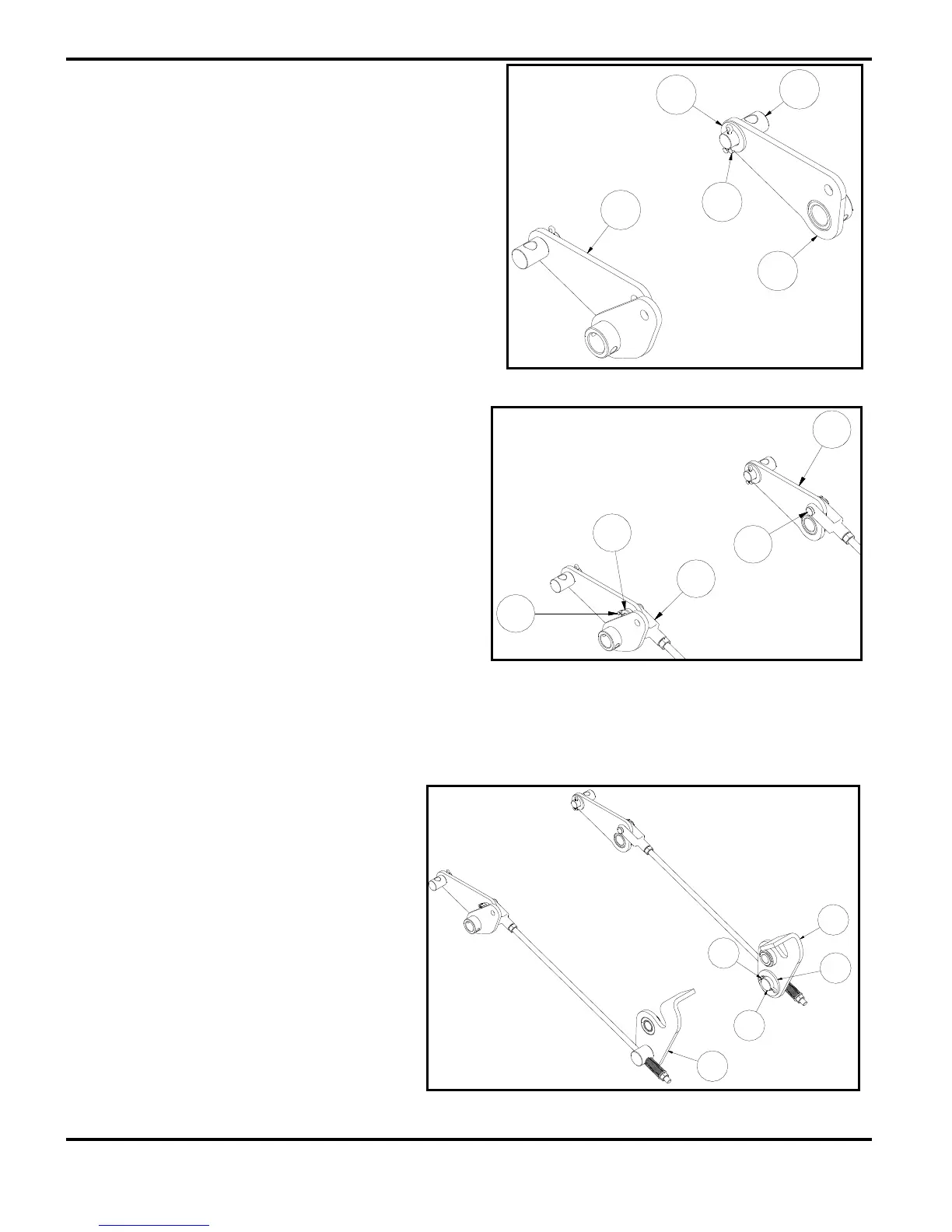

REAR LIFT ASSEMBLY
1 As shown in the figure the lift pin (28) to assemble
and also, the rotation link (15) with washer (41) and a
split pin (54) is used to fix it.
2 As shown in the figure lifts the pin (28) to assemble
and LH, rotary link (13), a washer 41 and a split pin (54)
is used to fix it.
3 Links as shown in the figure rotation (15) links the
body and assemble the assembly. A clevis pin (29)
and cotter pin (53) is used to fix it.
4. Assemble the rear lift and 30 link bolt (21) pins (30)
and lift. Washers (47) and cotter pin (55) is
used to secure it.
5, One of the clevis pin (29) and a split pin (53)
is used to fix it.
6. LH Rear Lift (24) tension rods (21) pins (30)
and lift. Washers (47) and cotter pin (55) is
used to secure it.
7. Left / Right assembled the same way.
15
54
28
41
13
24
55
23
47
30
29
20
53
45
15
