C
TRACTOR INSTRUMENTS
C
19
Do not operate the boom cylinder and
bucket cylinder at the same time.
A loader may mal-function due to
insufficient oil flow.
CAUTION

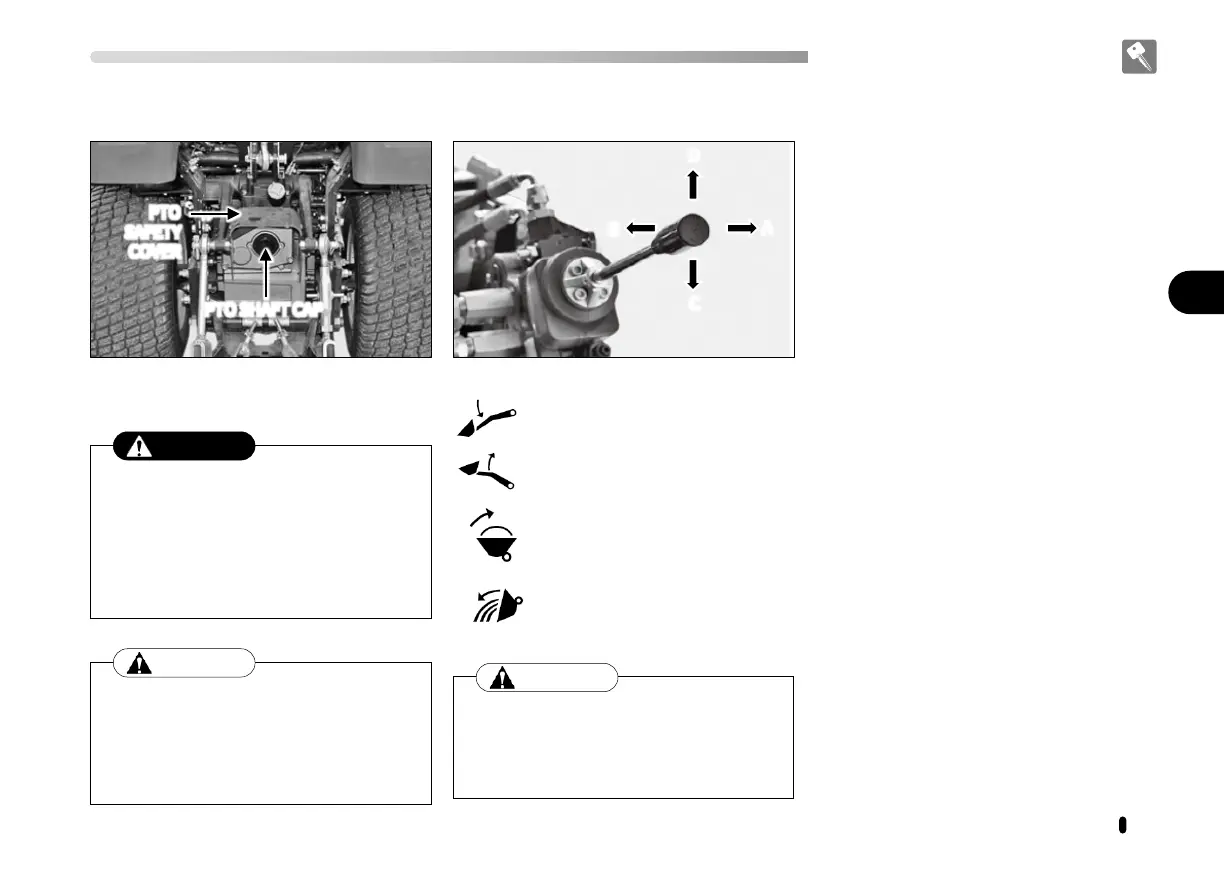

▶ PTO SHAFT CAP
When the PTO shaft is not in use, grease
the PTO shaft and install the cap to it.
▶ JOYSTICK LEVER
Use this lever to operate a front loader.
- Boom down (D)
- Boom up (C)
- Bucket up (B)
- Bucket down (A)
PTO
SAFETY
COVER
PTO SHAFT CAP
If caught by the PTO shaft, a severe
injury or even death can occur.
Stay out of the PTO shaft while it is
rotating.
When the PTO shaft is not in use, place
the cap over it. Also, never remove the
PTO safety cover.
DANGER
It is dangerous to use an imple-ment at
a high speed if it is de-signed to be
operated at a low speed.
Before using an implement, make sure
to read its owner's manual.
CAUTION
D
C
A
B
