DESCRIPTION OF OPERATING SYSTEM

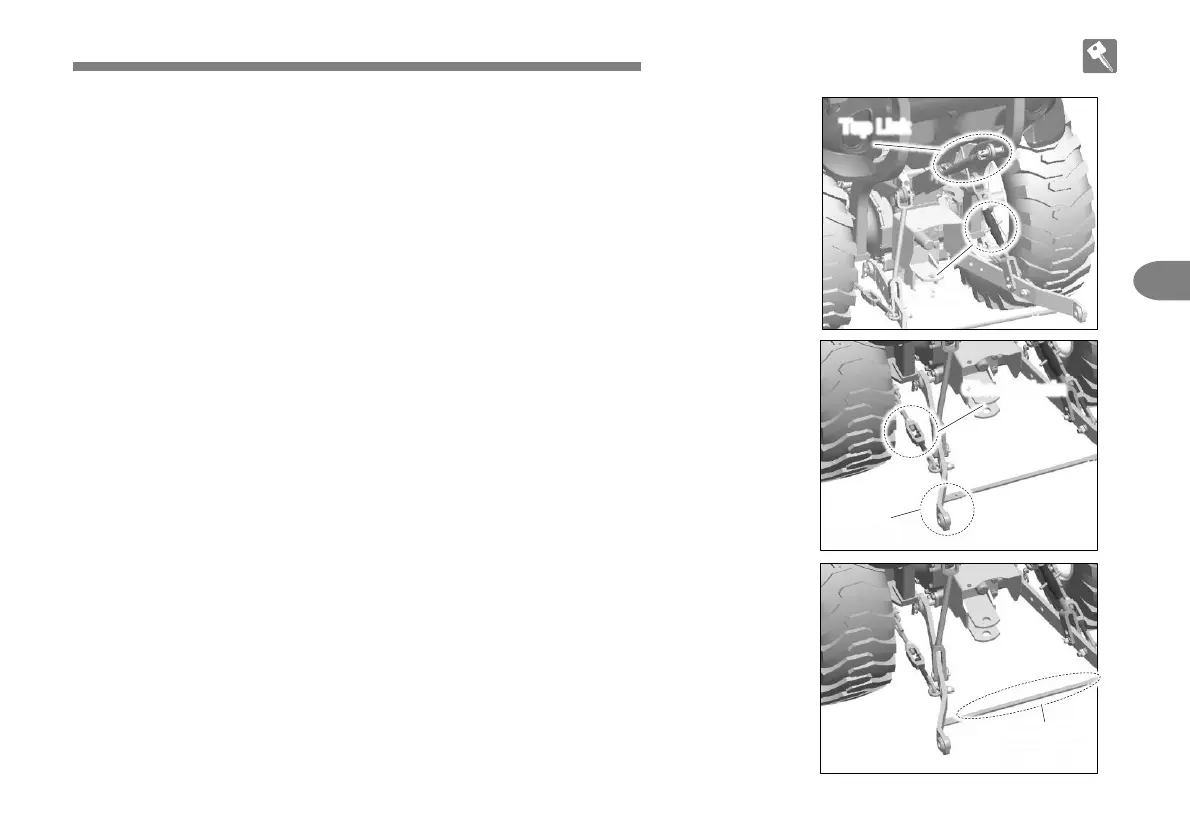

■ Adjustment of the Top Link
Lengthening or shortening the top link will change the angle of the implement.
■ Adjustment of the Lift Rod
The adjustment is done with the adjusting handle on the right hand lift rod.
To shorten or lengthen the lift rod turn the adjusting handle.
When adjusted correctly tighten the lock nut securely.
■ Adjustment of the Check Chain
To adjust the check chain, turn the turnbuckle to lengthen or shorten the chain and
tighten the lock nut when the correct adjustment is achieved.
■ Adjustment of the Lower Link
For different applications change the position of the yoke rod on the lower link holes as
shown and insert the pin in the direction of the arrow.
■ Use of the Retention Rubber
When not using implements on the three point linkage use the rubber as shown to
prevent tire damage.
Top Link
Lift Rod
Check Chain
Lower Link
Retention
Rubber
