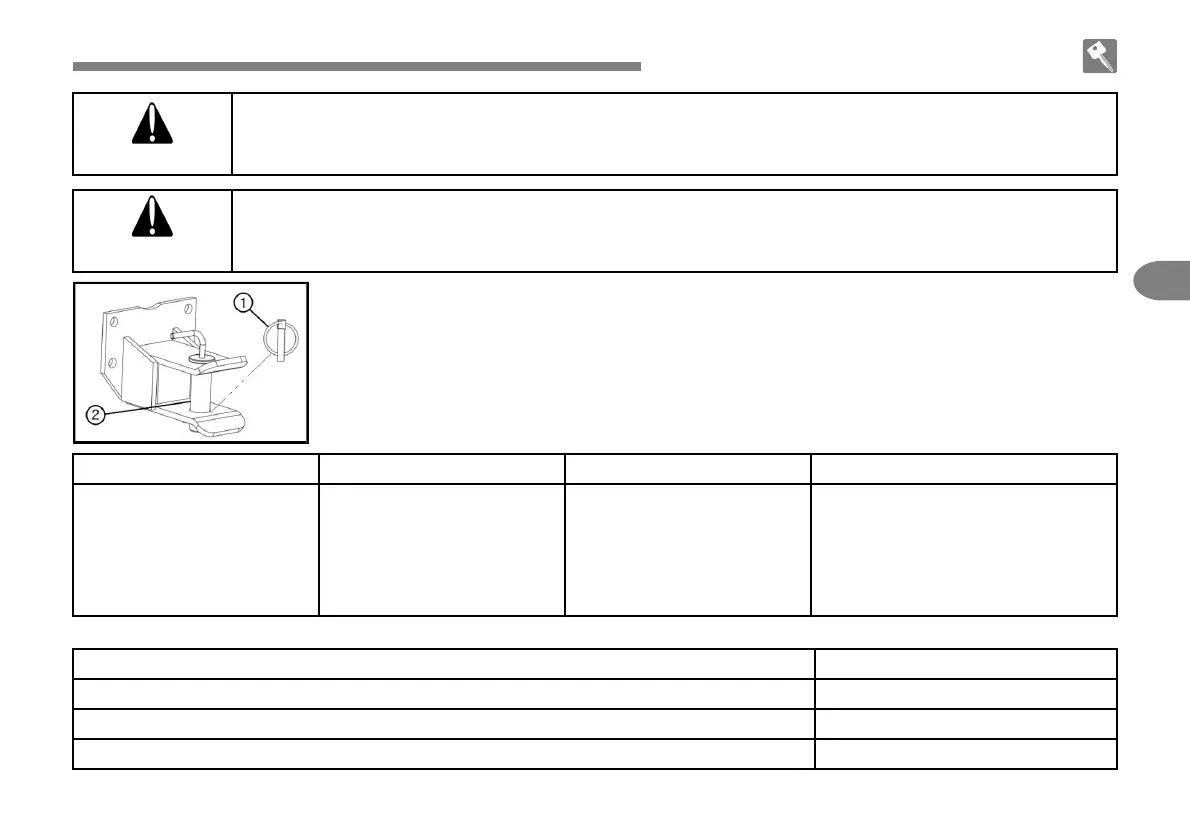

DESCRIPTION OF OPERATING SYSTEM
Drawbar Type Max. Horizontal load Max. Vertical load Rear Tire
T-CC1 6,613 lbs. 300daN
9.5 – 20, 8PR (Ag)
33x12.5 – 16.5, 4PR (Turf)
36x13.5 – 15, 4PR (Turf)
12 – 16.5, 6PR (Ind.)
14 – 17.5, 10PR (Ind.)
Technically permissible towable masses
Unbraked towable mass 2,204lbs
Independently braked towable mass 4,629lbs
Inertia-braked towable mass 6,613kg
Towable mass when fitted with hydraulic or pneumatic braking N/A
WARNING
The maximum permissible hitch load (horizontal and vertical), the maximum permissible hitch height for road.
Use and the maximum trailed load are indicated in the tractor registration document.
CAUTION
Do not allow anyone to ride on the drawbar or the lower links when the tractor is in motion.
Implement hitching and unhitching
To hitch an implement to the drawbar, proceed as follows
- Remove lock pin ①
- Remove pin ②
- Reverse the tractor slowly up to the implement
- Insert pin ②
- Insert lock pin ①
