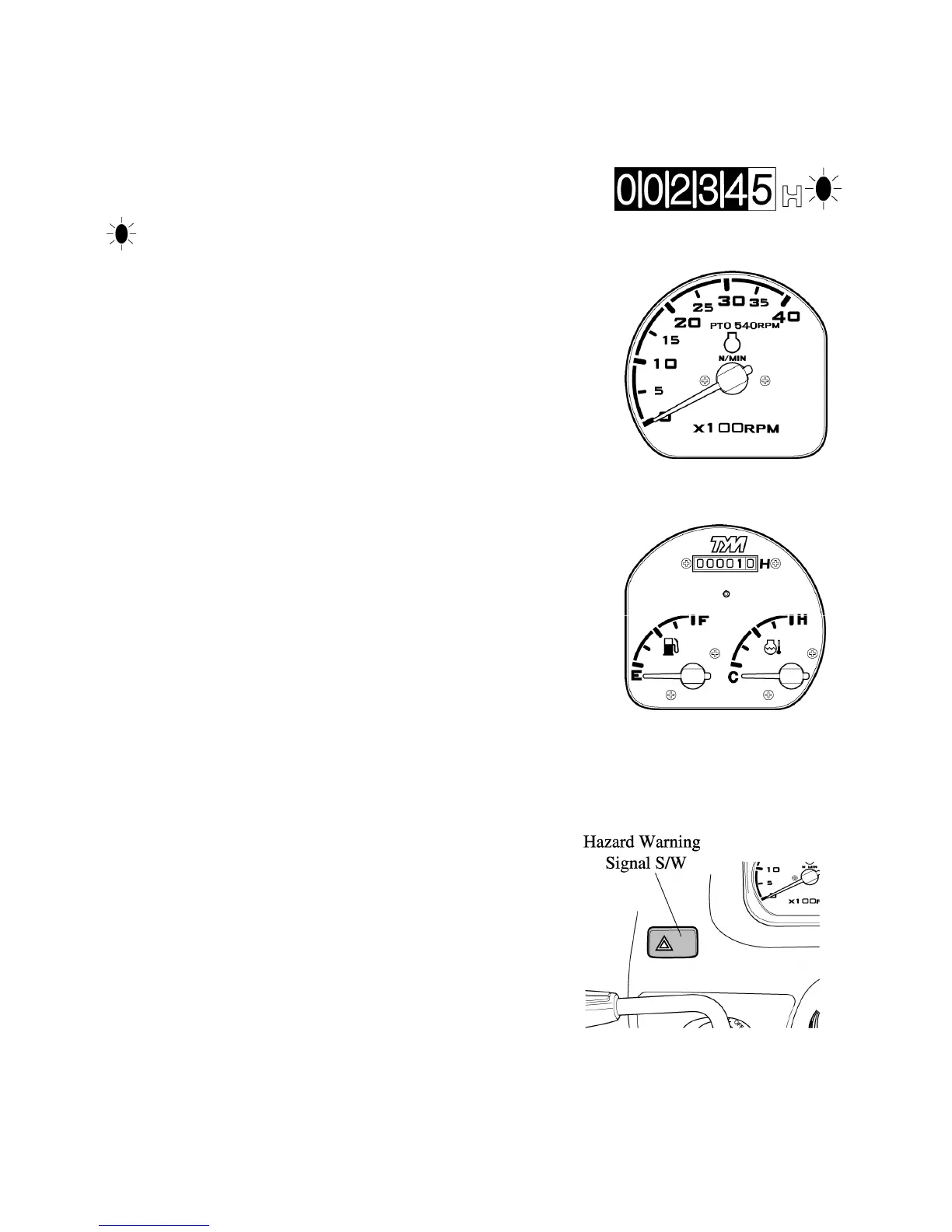

TACHOMETER
This meter shows the revolutions of the engine and the
PTO shafts as well as the travel speed in top gear.
HOUR METER
The hour meter consists of digits with the last digit
indicating 1/10
th
of an hour.
FUEL GAUGE
Shows the amount of fuel in the tank when the ignition
switch is ON.
WATER TEMPERATURE GAUGE
Symbol Illuminates when Hour meter is operated.
34
Shows the water temperature with the ignition switch ON.
C is low to normal temperature
H is high temperature
If the pointer is in the red H segment the engine is
overheating.
Refer this book to rectify the problem.
HAZARD WARNING SIGNAL SWITCH
Push the hazard warning signal once to operate the hazard
warning light. (Left and right turn indicators flash).
Push the hazard warning light switch again to switch off the
hazard warning lights.
