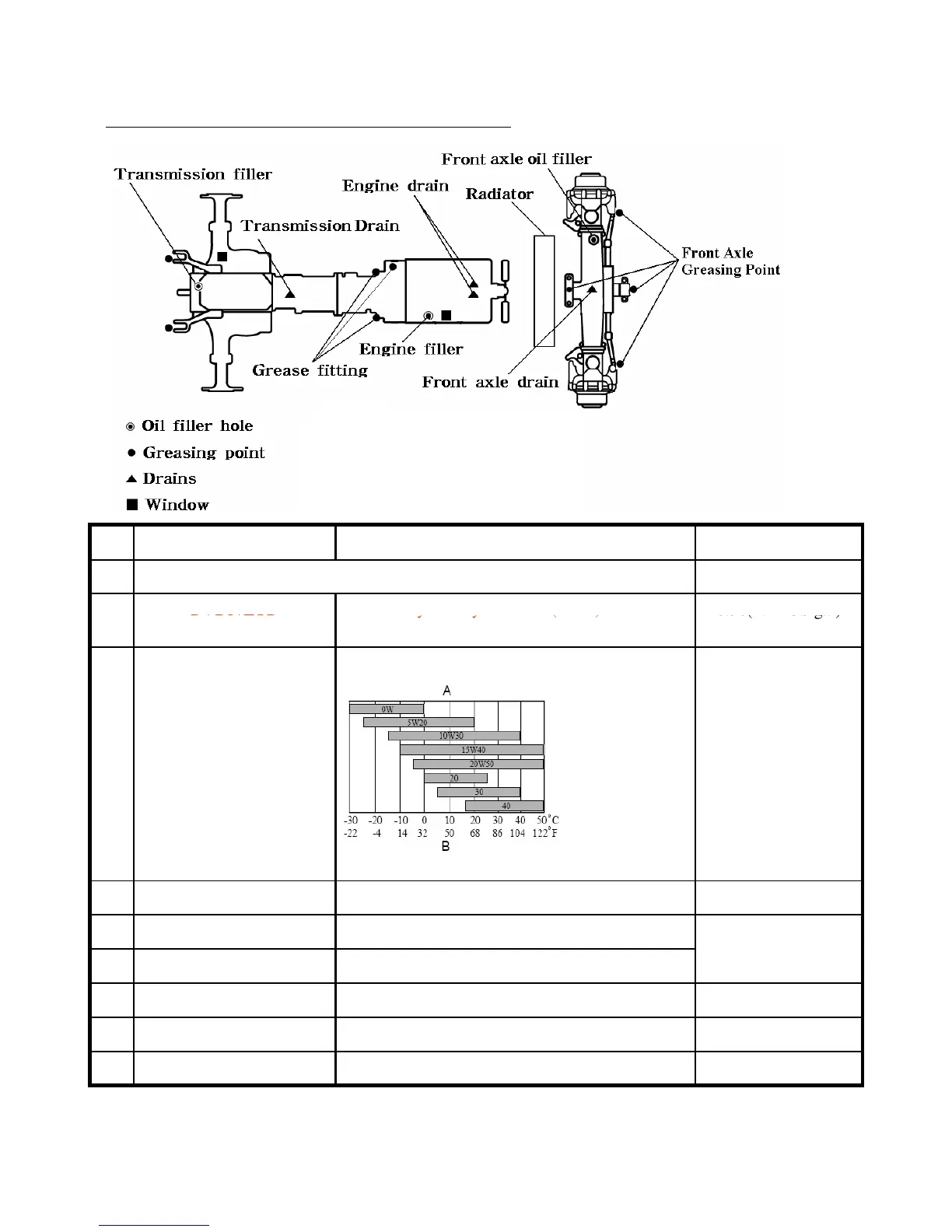

FILLING DIAGRAM & CAPACITY TABLE
No. Filling point Fillings Quantity Liter (gal.)
MODEL T503
1
RADIATOR
50/50 : Ethylene Glycol/Water (L.L.C)
8.5ℓ(2.24 US gal)
1
RADIATOR
50/50 : Ethylene Glycol/Water (L.L.C)
ASTM D4985 / D6210
8.5ℓ(2.24 US gal)
2
ENGINE
API : CH4 grades
Recommended SAE viscosity grades
8.2ℓ (2.16 gal)
3 TRANSMISSION CASE See next page * 35ℓ(9.24 US gal)
4 FRONT AXLE (API GL-4 Grades)Gear oil #80 or #90
10ℓ(2.64 US gal)
5 FINAL DRIVE CASE(B) (API GL-4 Grades) Gear oil #80 or #90
6 Clutch pedal shaft Grease As required
7 BALL JOINT Grease As required
8 FUEL TANK Diesel fuel 60ℓ(15.85 US gal)
64
A: Viscosity
B: Temperature
