TYM T433 - Foot Operated Accelerator; Clutch Cut-Off Alarm; Foot Operator Accelerator

►
►►
► BRAKE PEDAL
Caution
A connecting latch is provided to connect the right and left brake pedals for high
speed or road use.
In the interest of safety always use it on the road or at high speed as using one side
only can cause rollovers.
When servicing the tractor ensure that the adjustment on both sides in the same.
►
FOOT OPERATED ACCELATOR
Right and left brake pedals are provided to assist in turning the tractor in the field.
►
►►

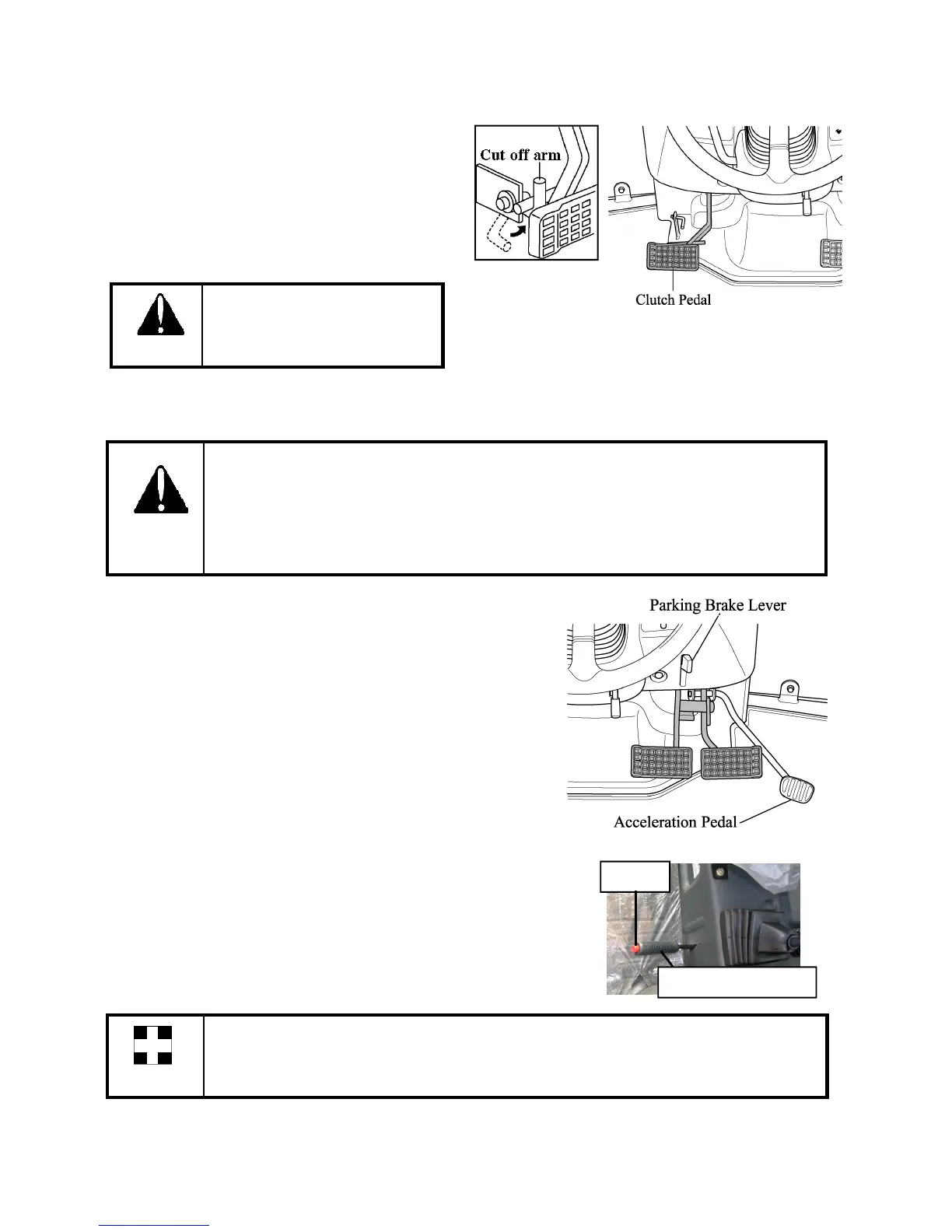

► CLUTCH CUT-OFF ARM
For long term storage of the Tractor it is possible
to latch the clutch in the disengaged position.
Push the clutch down and engage the latch to
hold it there.
Do not attempt to start engine
when this arm is being used.
warning
38
►
FOOT OPERATED ACCELATOR
This pedal can override a fixed hand throttle setting
►
►►
► PARKING BRAKE LEVER
Connect the brake pedals , push them down while
pulling the park brake up to engage. Press the parking
brake pedal and push the Brake pedal to release.
Traveling with the parking brake on will damage the brakes.
important
►
►►
► PARKING BRAKE (HANDLE TYPE) – IF EQUIPED
1. Lift brake handle up to set the park brake.
2. Lift park brake handle slightly until park brake release
button can be depressed. Hold button in and lower park
brake handle all the way down to release the park brake.
Button
Park brake handle
