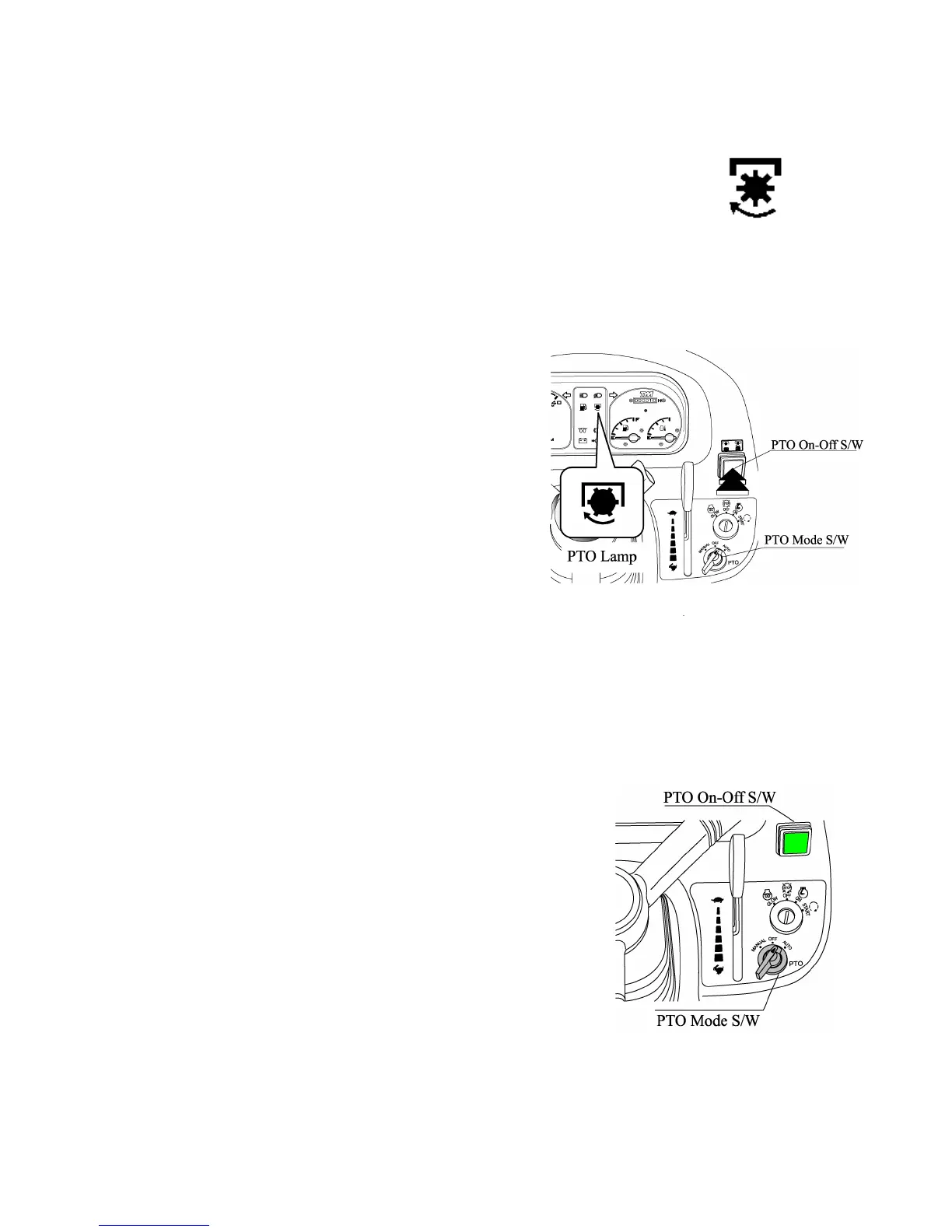

PTO monitor Lamp
Two switches operate the independent PTO.
1. PTO ON/OFF SWITCH: PTO ON/OFF switch is located
on the LHS. on the steering column and can be identified
easily with its built in red colored indicator. When the
switch is pushed down to start the PTO indicator glows to
indicate that the switch and the PTO are in ON position,
If the switch is pushed down again the indicator goes off
signaling that the PTO is OFF.
■ THE PTO MONITOR LAMP on the dash panel indicates the state
of the PTO shaft.
1. If the monitor glows: The PTO is rotating
2. If the monitor is off: The PTO is off
3. If the monitor blinks: The PTO is presently stationary but will
instantly start rotating of the clutch pedal is released or the implements lowered.
36
2. PTO CONTROL SWITCH: This switch is located near the
starting key location on the dash panel. There are three
positions marked for this switch.
■ OFF at the center
■
■■
■ MANUAL at the left
■
■■
■ AUTO AT THE RIGHT.
The PTO shaft will not rotate if either of the two switches is
in OFF position.
The following table explains how the PTO operates at the two
different (Manual & Auto) positions of the PTO control switch
with the PTO ON/OFF switch in the on position.
PTO control switch
