▶Drawing for fixing position of the fuse

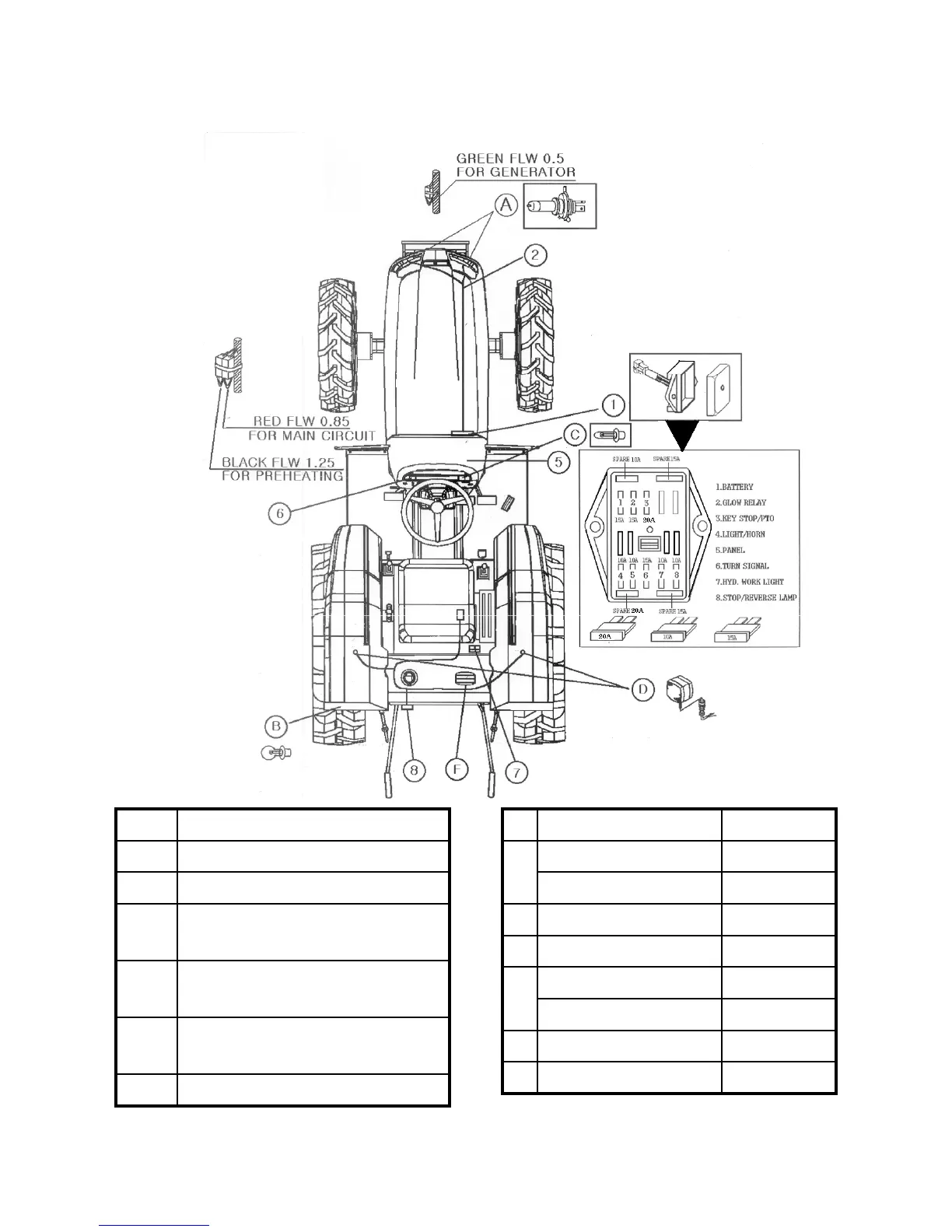

▶Wiring diagram of the electric instrument
100
1 Fuse box
2 3 pieces of fuse blinks
3 Power for the working
5 Units for direction
Signal relay for the power
6 PTO monitor
PTO safety relay
7 Coupler for the power
Max rated ampere
8 Coupler for the trailer
A Head lamp 12V45/45W
B Direction signal lamp 12V21W
Stop lamp back light 21/5W
C Meta panel light 12V3.4W
D Working lamp 12V35W
E Direction signal lamp 12V21W
Side lamp 21V5W
F Back lamp 12V20W
G Number lamp 12V10W
