Air conditioning system
The system is designed to ensure optimum temperature inside the cab and maximum comfort and safety
for the operator.
However, it is advisable to consult our specialized workshops whenever repairs or adjustments need to
be performed.
Do not approach the system with open flames, as any escape from the circuit may produce a lethal gas.

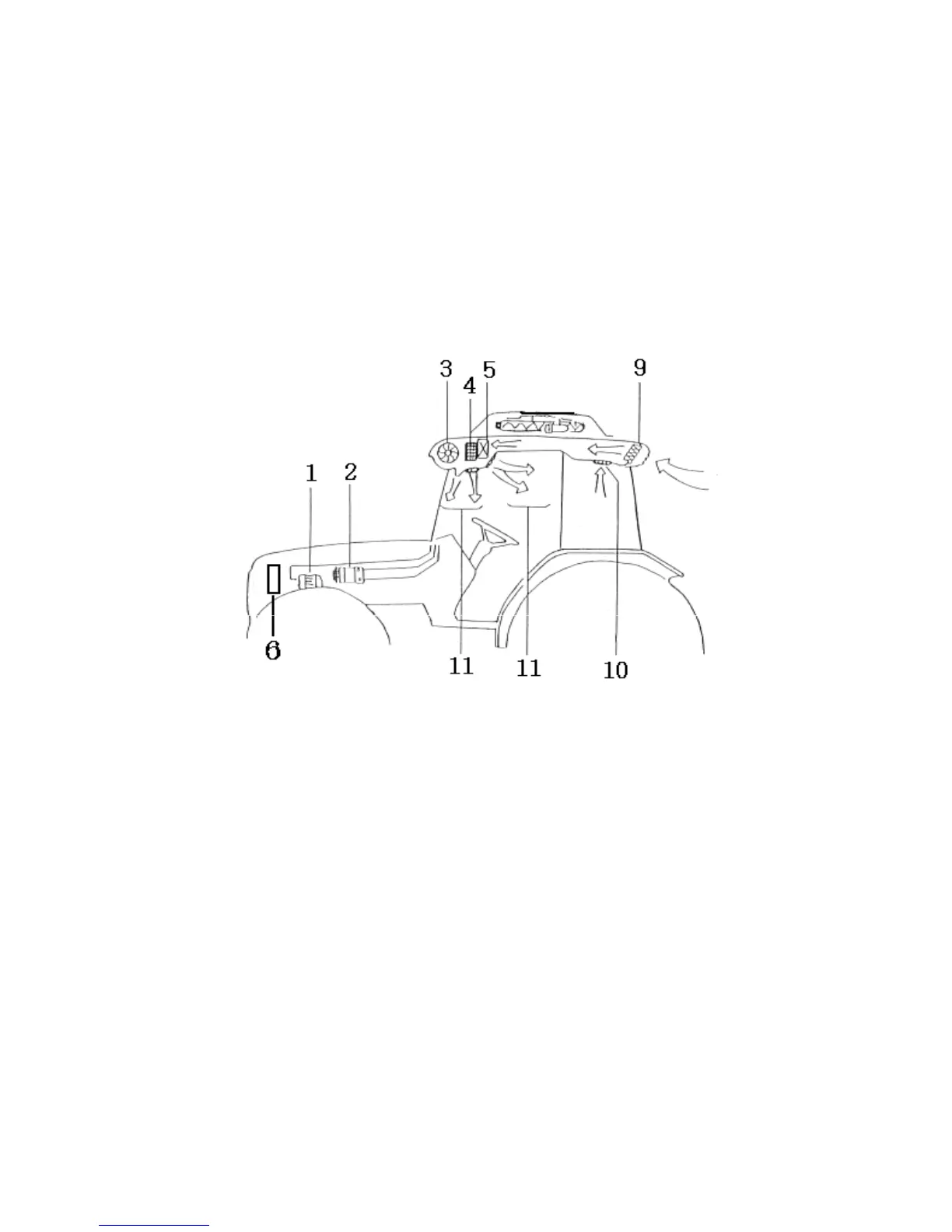

1.Alternator 2. Compressor 3.Speed fan 4.Electric resistance
5.Evaporator 6. Condenser 9.Air filter 10.Recirculation inlets
11.Pivotal air diffusers
80
