►Independent PTO
PTO monitor Lamp
Two switches operate the independent PTO.
■ It must be noted that the PTO shift lever on the LHS
below the driver seat should be shifted to position 1
(540 RPM) 0r 2 (1000RPM) depending upon the
implement specification. In no case the specified
speeds be crossed as serious damage to the
tractor/implement to person can result because of
this. When the PTO is not in use the shift lever must be
put in neutral position to avoid unnecessary use or
accidental use.
■ The PTO monitor lamp on the dash panel indicates the state of the
PTO shaft.
1. If the monitor glows: The PTO is rotating
2. If the monitor is off: The PTO is off
3. If the monitor blinks: The PTO is presently stationary but will
instantly start rotating of the clutch pedal is released or the implement
is lowered
34

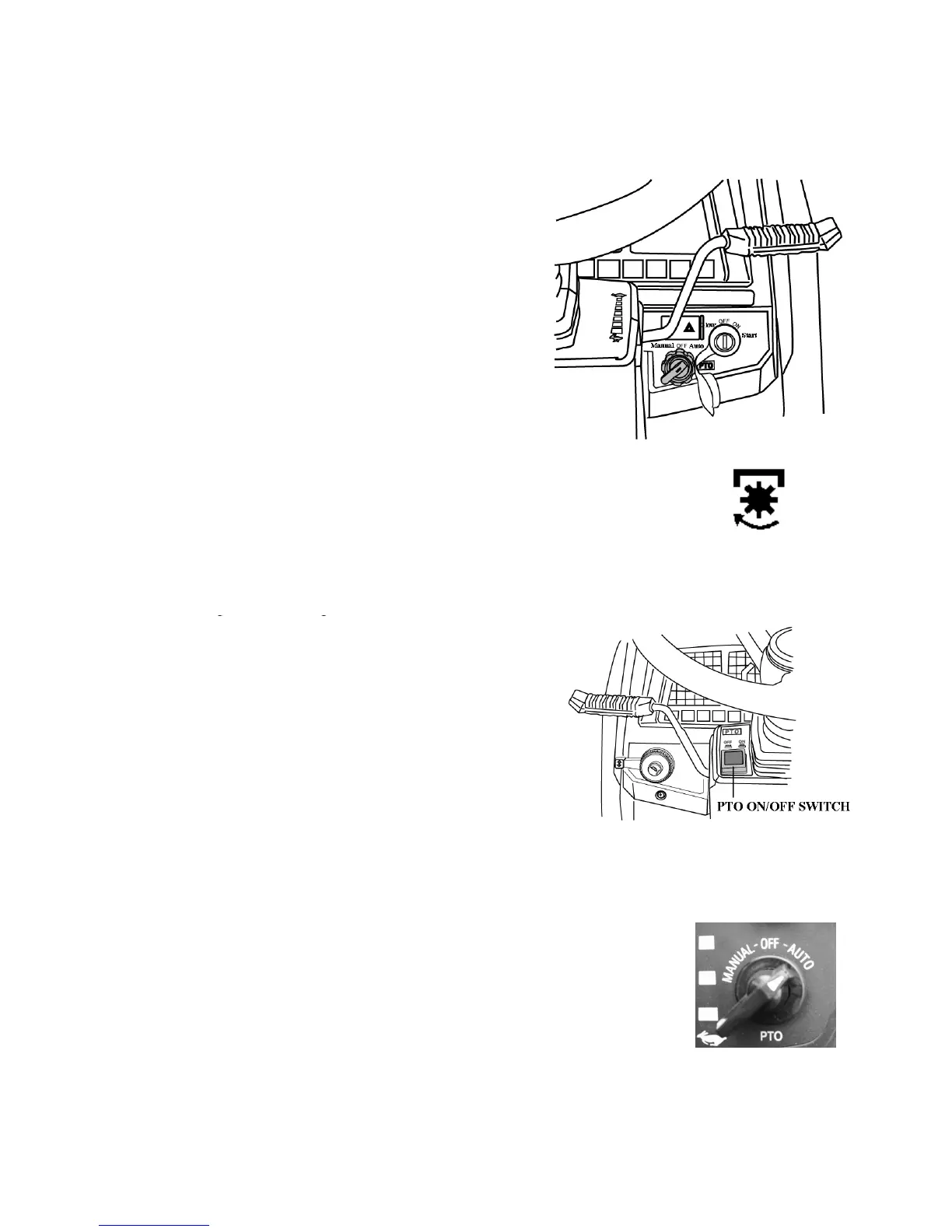

Two switches operate the independent PTO.
1.PTO ON/OFF switch: PTO ON/OFF switch is situated
on the LHS. on the steering column and can be identified
easily with its built in red colored indicator. When the
switch is pushed down to start the PTO indicator glows to
indicate that the switch and the PTO are in ON position,
If the switch is pushed down again the indicator goes off
signaling that the PTO is OFF.
2. PTO Control switch: This switch is situated near the
starting key location on the dash panel. There are three
positions marked for this switch.
■ Off at the center
■
■■
■ Manual at the left
■
■■
■ Auto at the right.
PTO ON,Off switch
PTO control switch
The PTO shaft will not rotate if either of the two switches is in OFF position.
The following table explains how the PTO operates at the two different (Manual
& Auto) positions of the PTO control switch with the PTO ON/OFF switch in the
on position.
