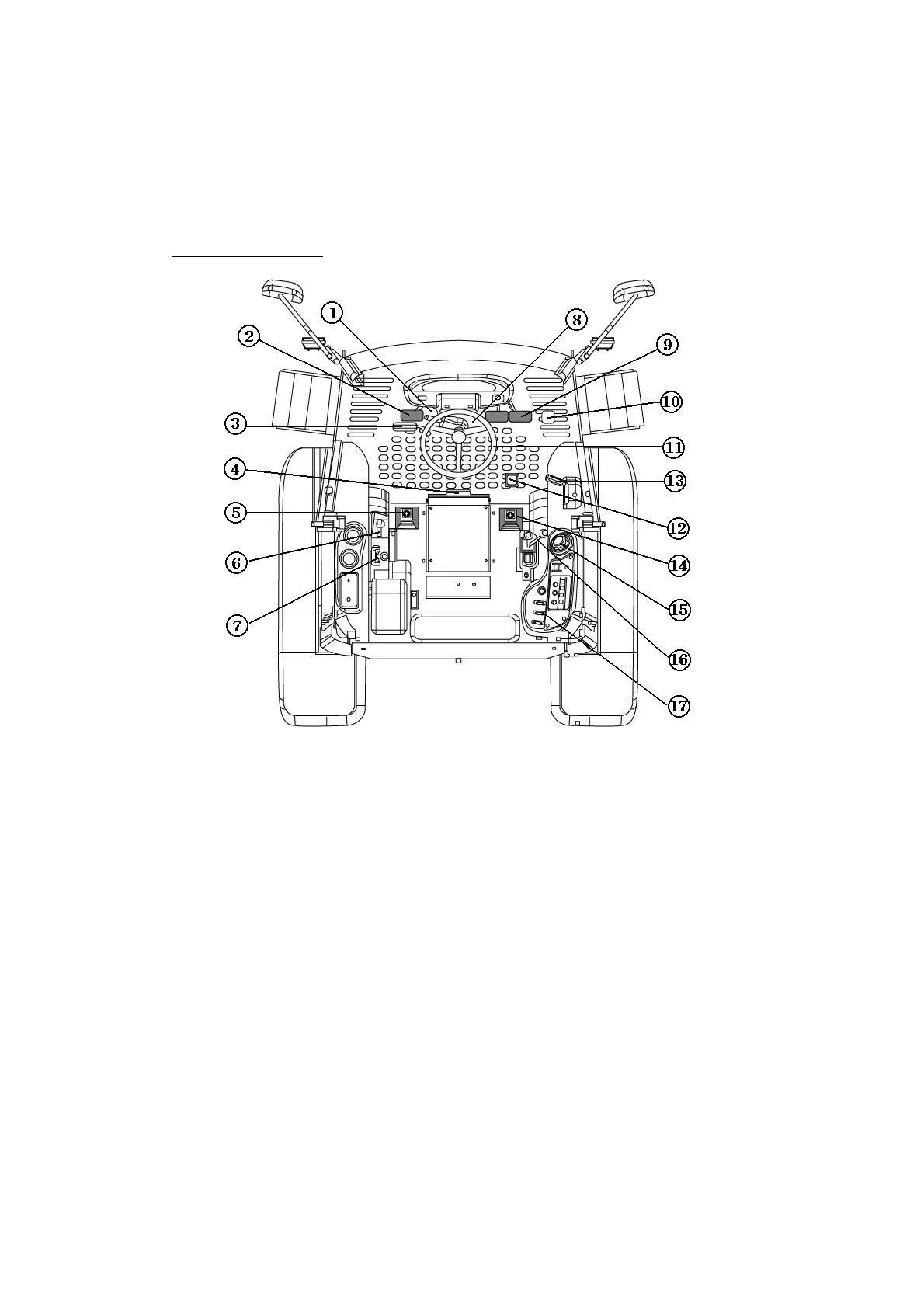

TRACTOR CONTROLS
1 Parking brake pedal 10 Acceleration pedal
2 Clutch pedal 11 Steering wheel
3 Shuttle shift lever 12 Diff-lock pedal
4 Hydraulic flow control knob 13 Throttle lever
5 Sub shift lever 14 Main shift lever
6 4WD shift lever 15 Position control Dial knob
7 PTO shift lever 16 Joy stick lever for hydraulics
8 Tilt pedal (steering column) 17 External hyd. levers
9 Brake pedal
