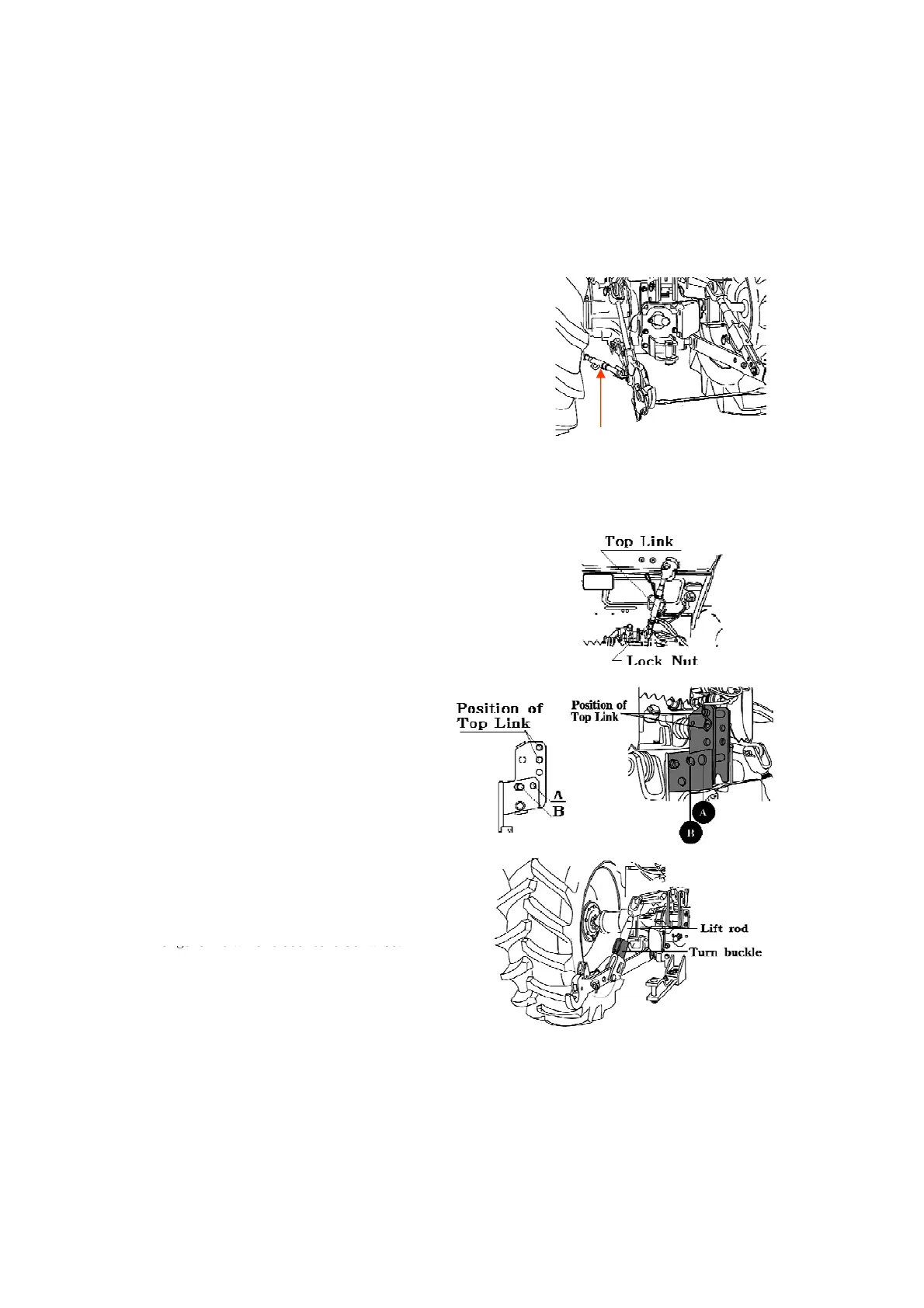

▶Telescopic stabilizers adjustment
The stabilizers are intended for limiting or preventing implement
side movement. There should be no clearance (Position A) during
implement transport and when working with graders, scrapers,
rollers, mowers, seeders, drills and similar implements.
However, a slight play is necessary (Position B) when working
with ploughs Harrows ditchers cultivators and the like ; that is
,
,
,
when working with “ draft control”.
The length of stabilizers is adjusted by removing the pin and
rotating the Turnbuckle barrel by which the two threaded ends are
interconnected..
To turn the barrel more easily, use a Tommy bar inserted through
the hole (Position C).
stabilizers
▶ADJUSTMENT OF THE TOP LINK
Lengthening or shortening the top link
will change the angle of the implement.
The locating hole of the top link varies
with the type of implement used.
The most common locations are the 1st
and 2nd hole from the top
1) For general implement :Use the Pin to “A:
point
2) For Draft control :Use the Pin to
▶ADJUSTMENT OF LOWER LINK
The adjustment is done with the adjusting handle
on the Right hand yoke rod
To shorten it wind the handle clockwise and to
lengthen it wind it counterclockwise.
“B”point
When adjusted correctly hold the turn buckle
with the stopper provided.
