▶The purpose of the 3-point hitch is to link the implements to the tractor and enable them to be lifted
hydraulic.
Once properly adjusted, it serves to link implements of category 2, and category 1 with the use of reducing
bushes.
▶ LEFT LIFTING ROD ADJUSTMENT
Withdraw it from the lower link and unscrew as necessary to carry out adjustment.
▶ RIGHT LIFTING ROD ADJUSTMENT
Used to vary the implement
’
ADJUSTMENT OF THE YOKE ROD ON
.
Rotate the handle on the link clockwise to shorten its and counterclockwise to lengthen its.
▶TOP LINK ADJUSTMENT
The length of the top link can be adjusted to give the implement a suitable angle with respect to ground level.
By shortening the top link, the angle increases.
Increase, while lengthening it decreases it.
Only use drawbar to tow and keep the 3 point linkage in raised

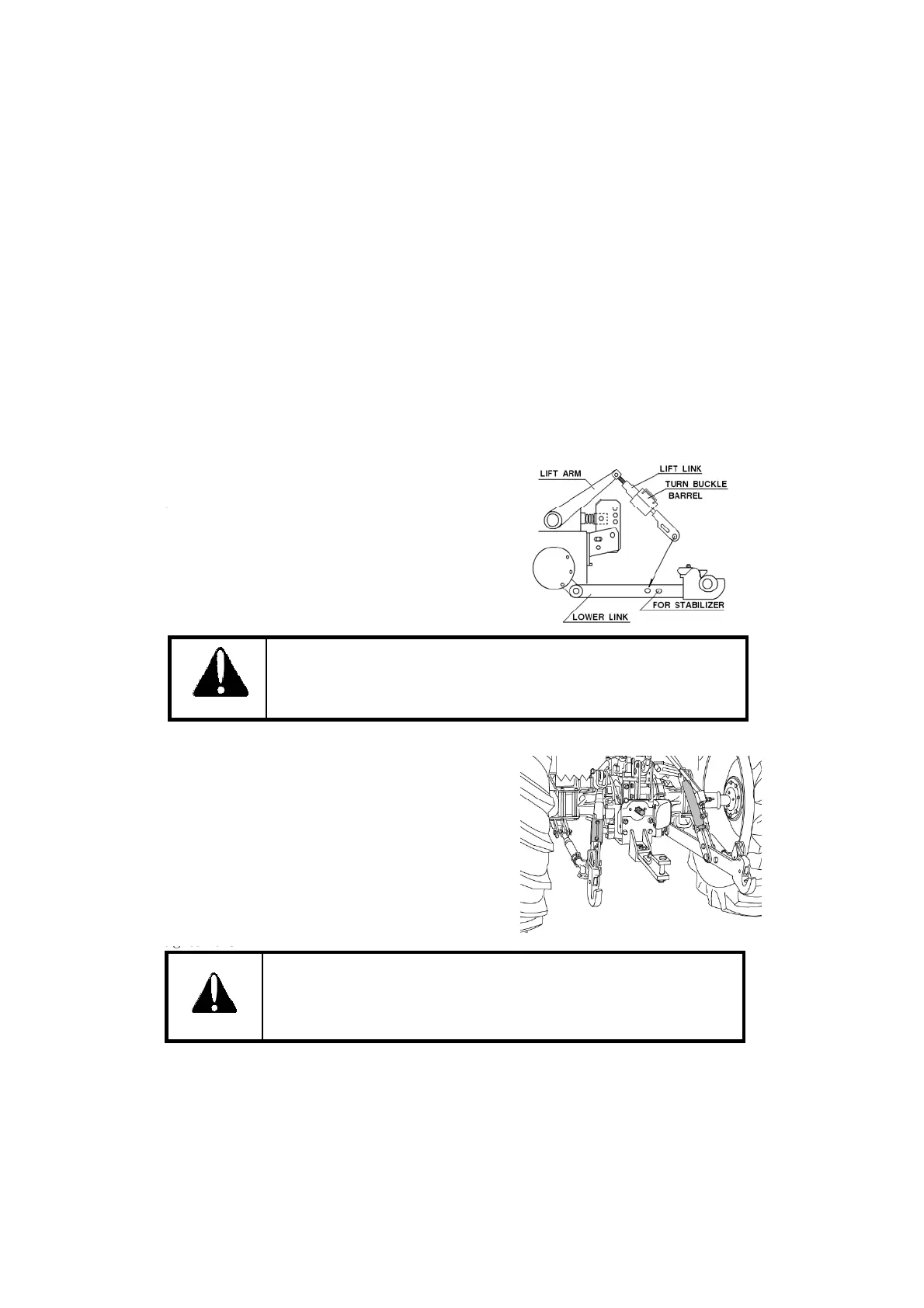

THE LOWER LINK
For standard position of the yoke rod on
the lower links as shown and insert the pin
in the direction of the arrow
position when toeing with the drawbar.
Position can create unbalance causing the Tractor to roll-over &
Result the death or serious injury.
Danger
▶MOUNTING IMPLEMENT
If the PTO is used, remove the safety cover off the
PTO shaft.
Adjust the yoke rod on the lower links to suit the
implement in
use.
Attach the left lower link, then attach the right lower
link
using the adjusting handle on the leveling box if
required.
Attach the top link.
Attach the PTO shaft to the tractor if used, making sure
that it
is locked in place.
Adjust the check chains to suit the implement and
49
Do not attach a PTO shaft with the engine running and ensure all
safety shields are in place.
locknuts.
To remove an implement reverses the procedure
Caution
