TYMCO 210 - Page 15

2008 5 210OPTRS
ITEM DESCRIPTION
1 Switch - Gutter Boom - LH
2 Switch - Broom Light - LH
3 Switch - Broom Tilt - LH
4 Switch - Broom Water - LH
5 Switch - Work Lights
6 Blank - Control Panel
7 Switch - Dump Door
8 Switch - Hopper Water
9 Pilot Lamp Assy - Lo Water/Pmp On
10 Switch - Kubota Ignition
11 Switch - Water System
12 Switch - Engine RPM
13 Switch - Pressure Bleeder
14 Switch - PUH Water/Press. Trans
ITEM DESCRIPTION
15 Switch - Broom Water - RH
16 Switch - Broom Tilt - RH
17 Switch - Gutter Broom - RH
18 Control Panel Plate
19 Gauge - Hour Meter
20 Switch - Broom Light - RH
21 Switch - Pick-Up Head
22 Plug - 5/8
23 Gauge - Engine Oil Pressure
24 Gauge - Tachometer
25 Pilot Lamp Assembly - Pre Heat/Blank
26 Switch - Warning Light
27 Gauge - Water Temperature
28 Gauge - Voltage Meter

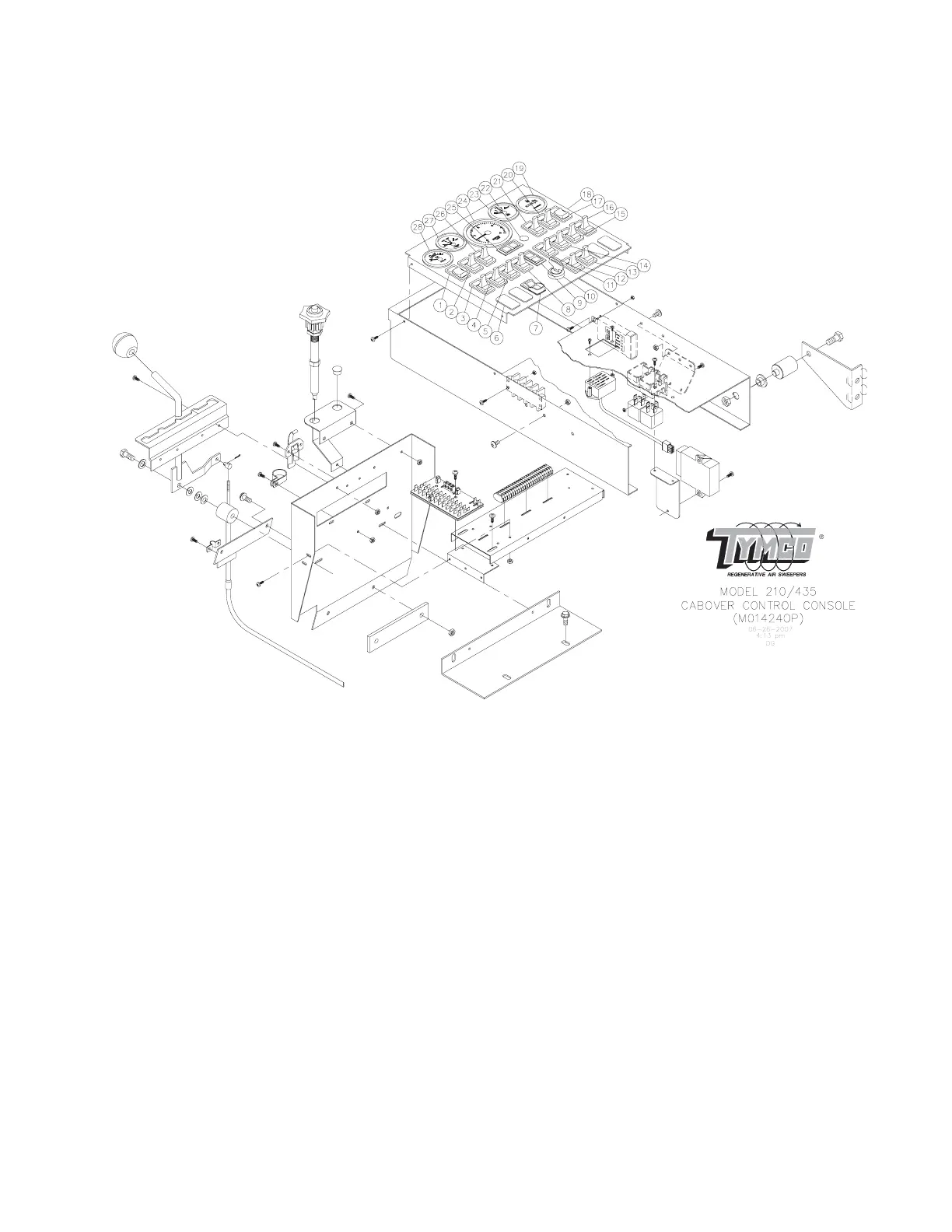

TYMCO MODEL 210
CAB-OVER CONTROL CONSOLE COMPONENTS
