TYMCO 210 - Console Control Panel Drawings

210OPTRS 4 2008

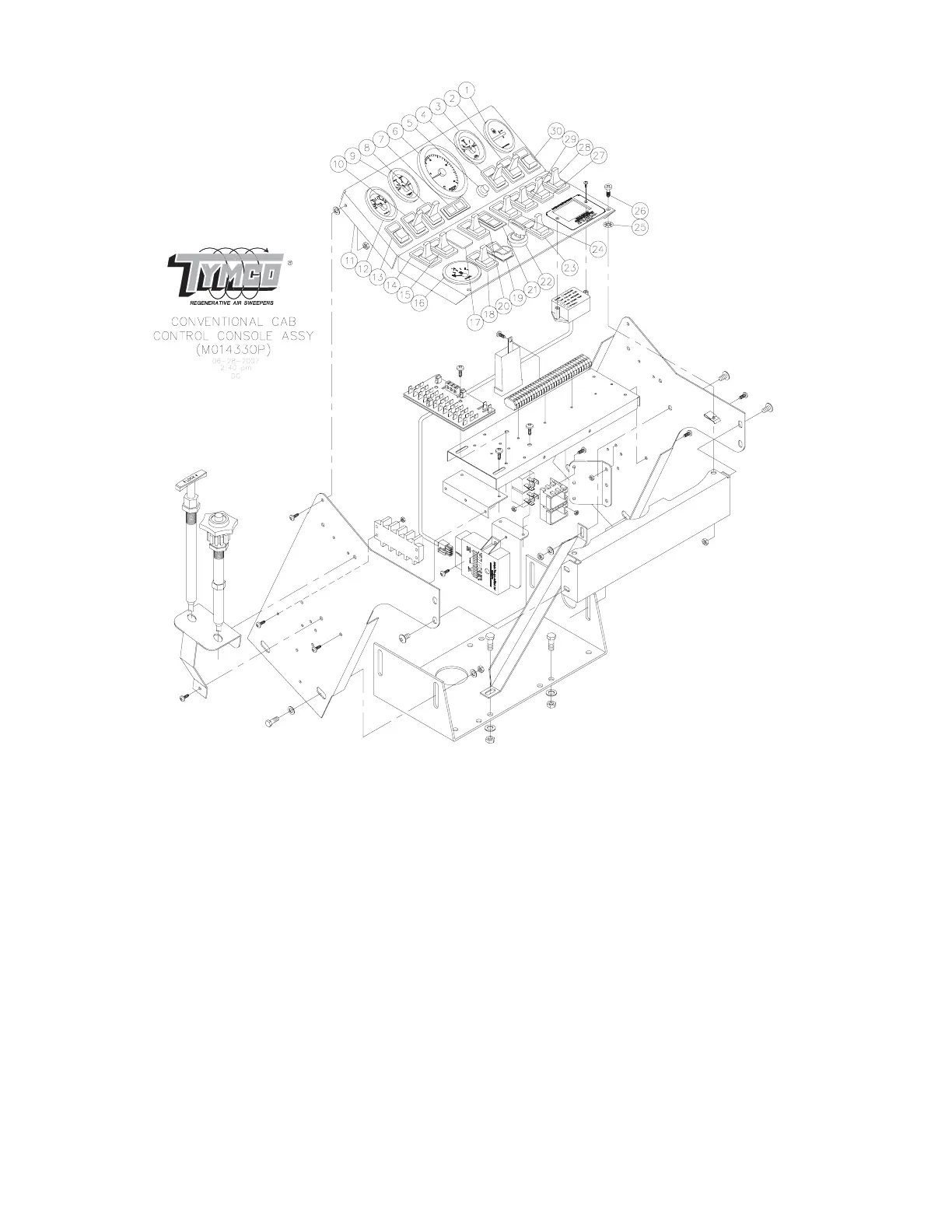

TYMCO MODEL 210
CONVENTIONAL CAB CONTROL CONSOLE COMPONENTS
ITEM DESCRIPTION
1 Gauge - Hour Meter
2 Switch - Gutter Broom Light - LH
3 Gauge - Engine Oil Pressure
4 Switch - Pick Up Head
5 Switch - Run Auxiliary Hydraulic
6 Gauge - Tachometer
7 Pilot Lamp Assembly - Pre Heat/Blank
8 Switch - Warning Lights
9 Gauge - Water Temperature
10 Switch - Gutter Broom Light - LH
11 Control Panel Plate
12 Gauge - Voltage Meter
13 Switch - Gutter Broom - LH
14 Switch - Gutter Broom Water - LH
15 Switch - Work Lights
ITEM DESCRIPTION
16 Gauge - Extra Fuel
17 Blank - Control Panel
18 Switch - Pressure Bleeder
19 Switch - Dump Door
20 Switch - Auxiliary Hydraulics
21 Pilot Lamp Assembly - Lo Water/Pmp On
22 Switch - Kubota Ignition
23 Switch - Engine RPM
24 Switch - Water System
25 Retainer - #12 Passivated
26 Screw - #12 Quick Opening Captive
27 Switch - Hopper Water
28 Switch - Broom Water - RH
29 Switch - Pick Up Head Water/Press. Trans.
30 Switch - Gutter Broom - RH
