B. BRISTLE REPLACEMENT
It will be necessary to replace the bristles once they are worn out. To do so, use the
following procedures:
1. Lower gutter broom and turn off sweeper engine.
2. Turn ignition switch on, but do not start engine. Shift gutter broom toggle switch
to UP position and observe the gutter broom spring to slightly raise the gutter
broom. Release the toggle switch once the gutter broom upward travel has
stopped and turn off ignition switch.
3. Remove bristle and disc assembly from hub by removing the three nuts located
on bottom side of disc assembly.
4. Remove three bolts holding top disc to bottom disc and separate discs. Discard
old bristle elements.
5. When installing new bristle elements, note line-up tabs on bristle segment ring.

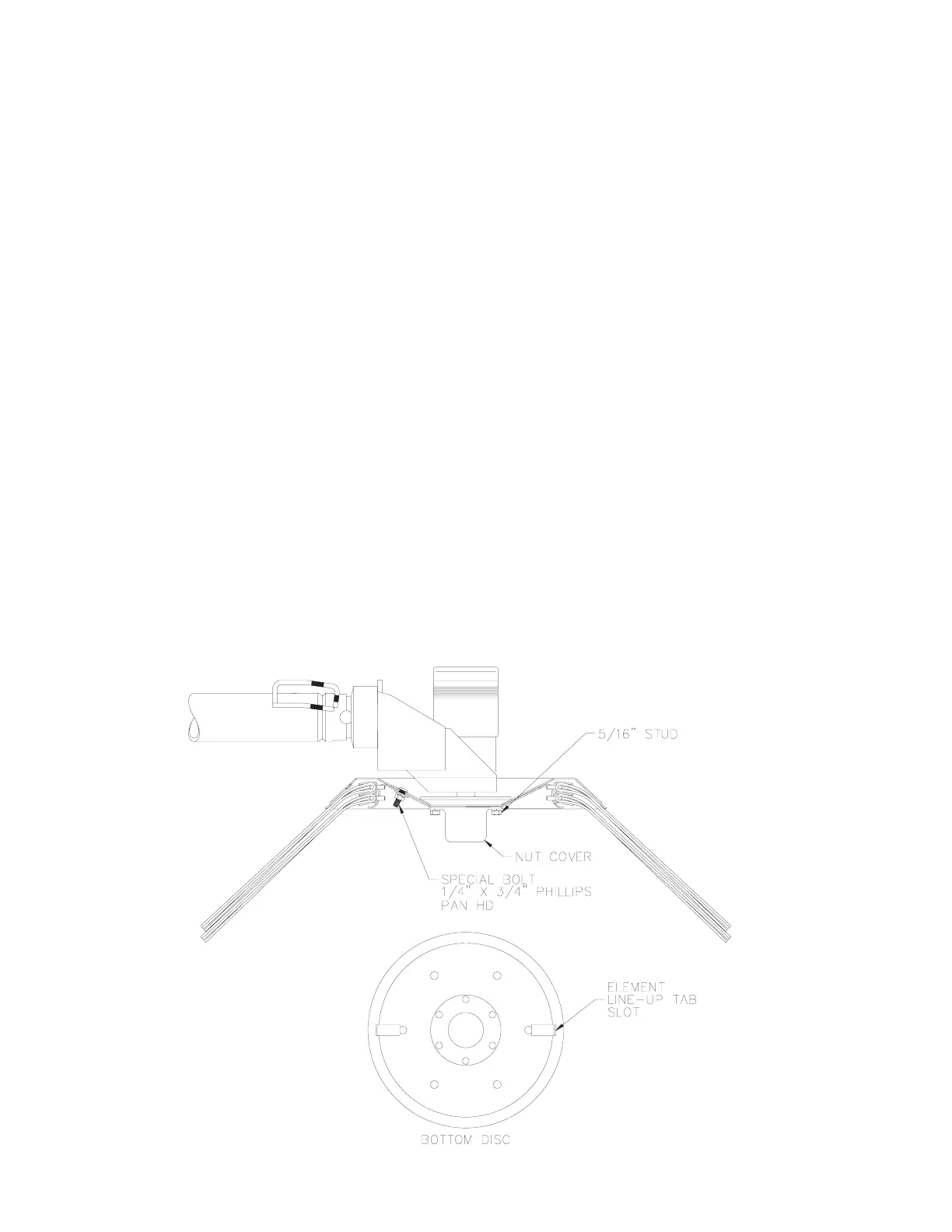

These tabs insert into slot provided on bottom disc (See Drawing below). Failure
to install bristles correctly could allow them to rotate in disc.
6. For re-assembly, reverse procedure outlined above.
NOTE: Be sure to tension gutter broom spring properly (if necessary) to pre-
vent premature bristle wear.
For more service information, consult your Parts & Service Manual or contact your
local TYMCO Dealer.
(M00692)
