4. Pick-Up Head Lock-Up Adjustment - The pick-up head is raised and lowered by
means of a hydraulic cylinder which rotates a lift arm assembly. Two chains (one on
each side) attach the lift arms to the pick-up head. These chains are attached to the
lift arms with an eye bolt (see Page 23). The pick-up head should fit snugly against
the up-stops when fully raised. If not, check to see if the up-stops are bent. If
up-stops are not bent, then use the lift chain eye bolts to take out slack in lift chains.
The pick-up head is locked in the UP or transit position hydraulically and electrically.
A check valve in the hydraulic valve bank ensures the head from drifting down.

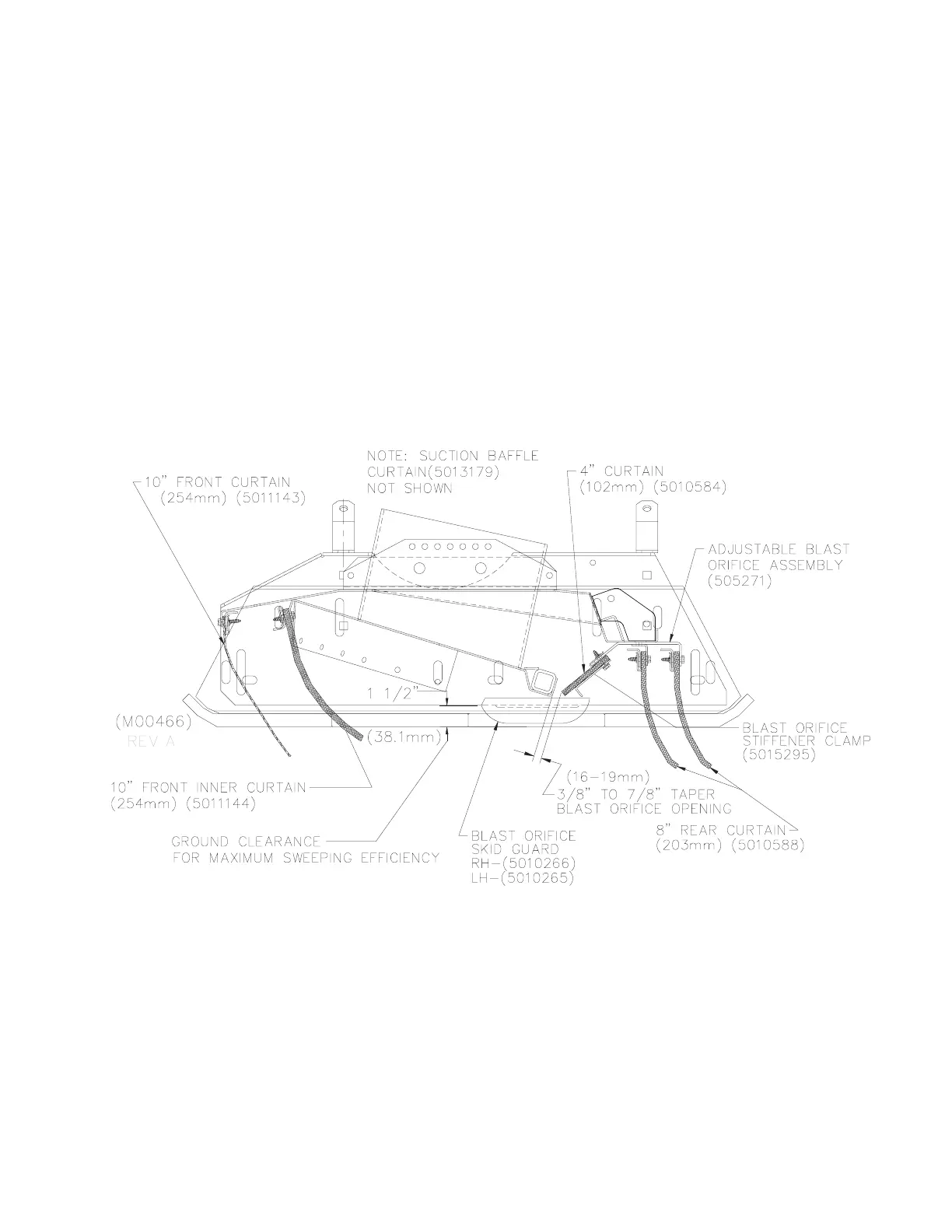

CROSS SECTION THRU
MODEL 210 PICK-UP HEAD
(M00466)
