B. SERVICE
There are essentially four service areas for the water system:
1. Water Tank
2. Pre-Filter
3. Water Pump
4. Spray Nozzles
Service these areas routinely according to the following directions:
1. Water Tank - The water tank should be flushed at the end of each shift to remove
contaminants. Fill tank and then allow to drain.
2. Pre-Filter - A pre-filter is located between tank and water pump to remove any
contaminants before they reach the pump. The pre-filter has a removable cleanout
bowl which should be removed and cleaned once a day. Use care not to lose the
bowl gasket when cleaning or water system will not work due to air leak.
3. Water Pump - The heart of the TYMCO water system is an electric pump capable of
5 GPM. The system relief valve is set at 25 PSI.
4. Spray Nozzles - The operator is responsible for keeping the spray nozzle tips clean
and spraying.
ATTENTION: On the Model 210 it is important to use only the correct output
spray tips in order to realize proper water system spray time and
pressure.
a. If a spray nozzle is clogged, the entire tip assembly must be removed for clean-
ing. To clean tip, use the edge of a knife or razor to clear tip spray slot. Grasp the
tip between the index finger and thumb with slotted side facing up and strike the
tip sharply against a clean, hard surface to dislodge blockage.
DO NOT USE DRILL TO MAKE ORIFICE LARGER!
b. To re-install tip, insert tip into cap and hand tighten cap to nozzle assembly. Hold
tip in desired position with the use of pliers in one hand. With the other hand, use
a wrench to tighten the cap which locks tip position.

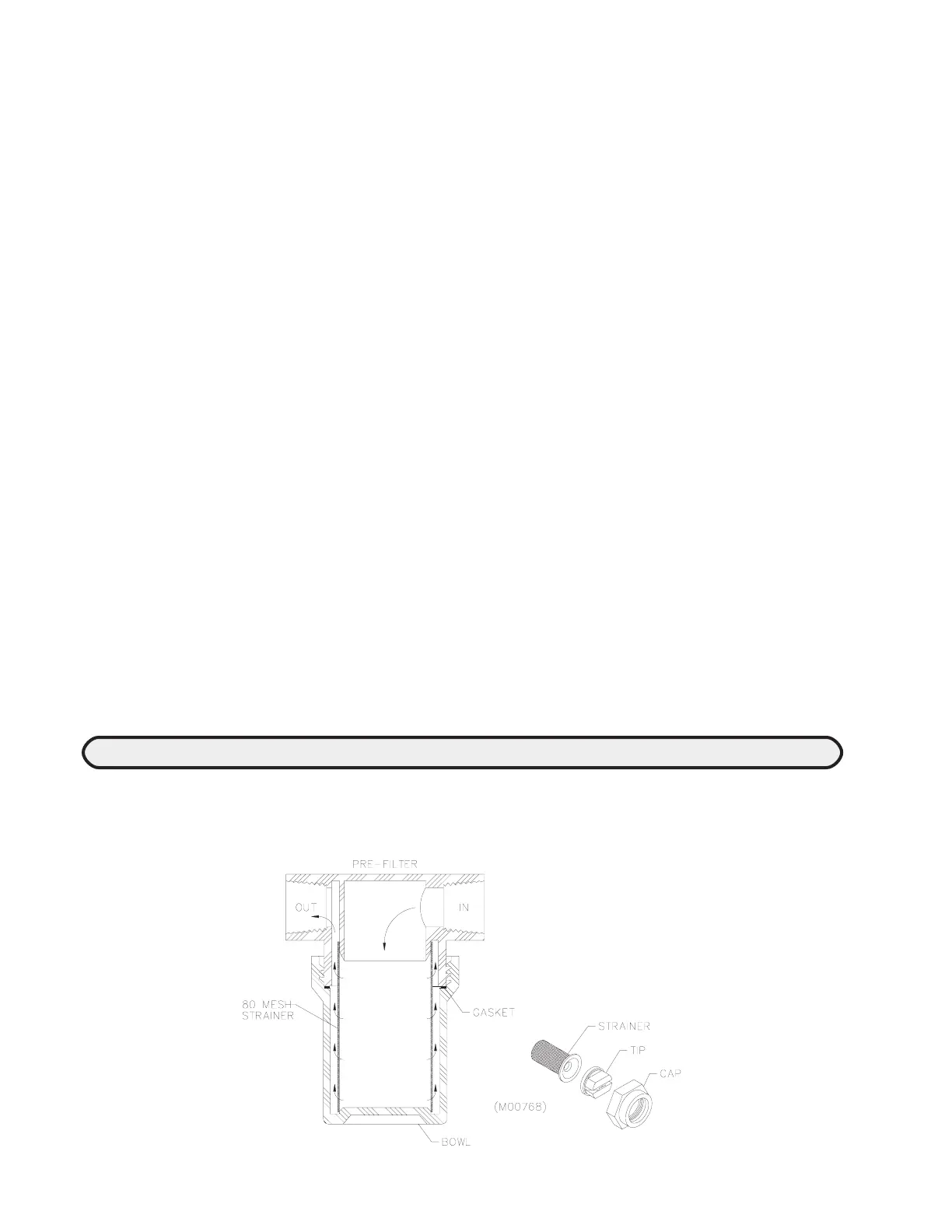

WATER SYSTEM
SERVICE AREAS
(M00768)
