Manufacturer Order No.
Atmel AT25FS010
Winbond W25X10A
Winbond W25X20A
AMIC A25L010
AMIC A25L020
Table 3 Supported SPI FLASH memory devices
1.6.4.2 SPI communication (connecting to an SPI master)
Figure 8 shows how to connect a u-blox GPS receiver to a host/master. The signal on the pins must meet the
conditions specified in the Data Sheet.
u-blox GPS Receiver SPI Master
SS_N
MISO
SCS_N
MI
VDD
MOMOSI
SCK SCK
VDD

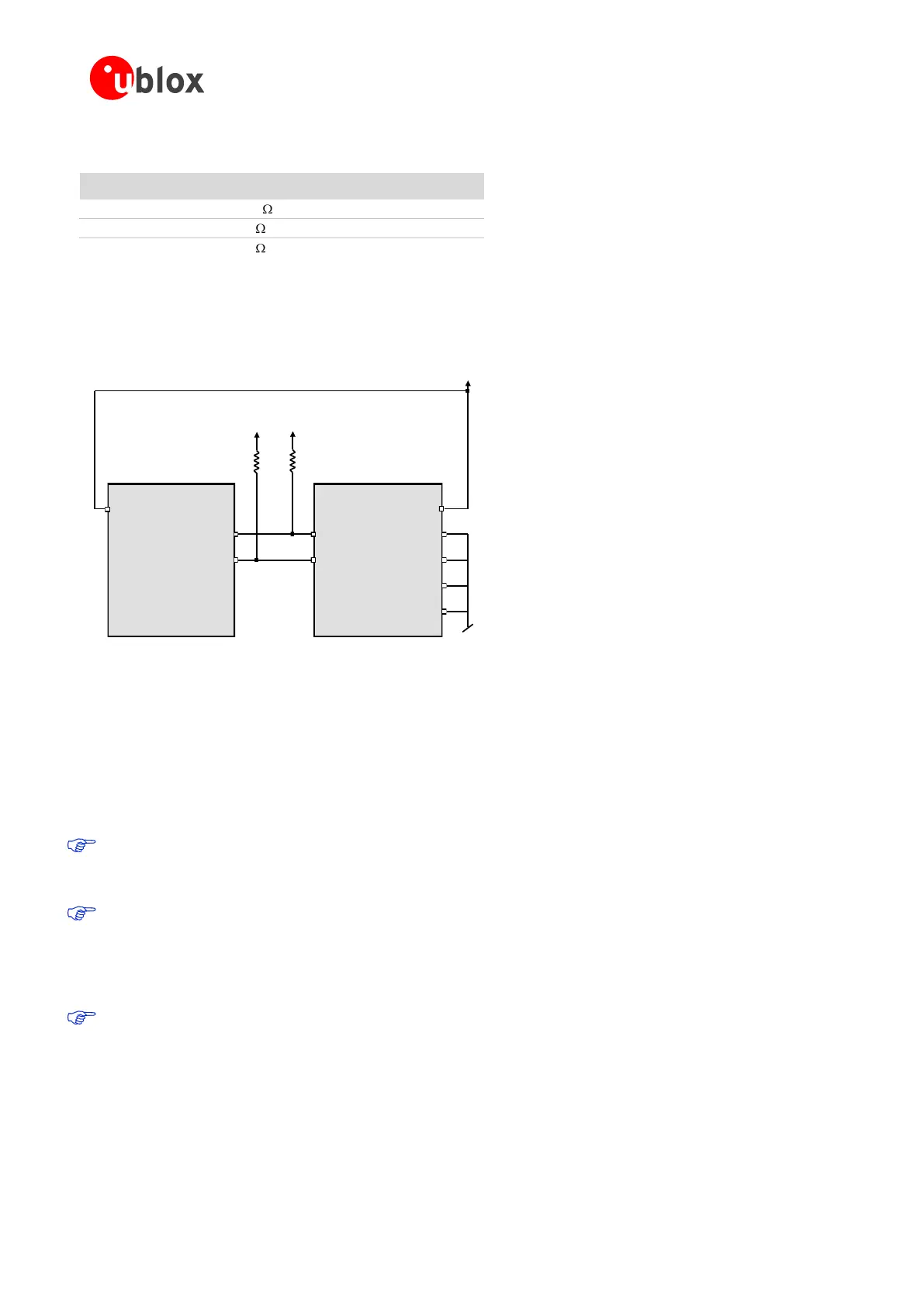

Figure 8: Connecting to SPI Master
For those u-blox 6 modules supporting SPI the SPI MOSI, MISO and SCK pins share a configuration
function at start up. To secure correct receiver operation make sure that the SS_N pin is high at start up.
Afterwards the SPI function will not affect the configuration pins.
