u-blox SARA-G3 Series - Page 32

SARA-G3 series - System Integration Manual
UBX-13000995 - R06 Objective Specification System description
Page 32 of 218
20-30 ms
IDLE MODE ACTIVE MODE IDLE MODE
300-600 µA
Active Mode
Enabled
Idle Mode
Enabled
300-600 µA
60-120 mA
0.44-2.09 s
IDLE MODE
20-30 ms
ACTIVE MODE
Time [s]
Current [mA]
100
50
0
Time [ms]
Current [mA]
100
50
0
4-5 mA
60-120 mA
RX
Enabled
20-40 mA
DSP
Enabled

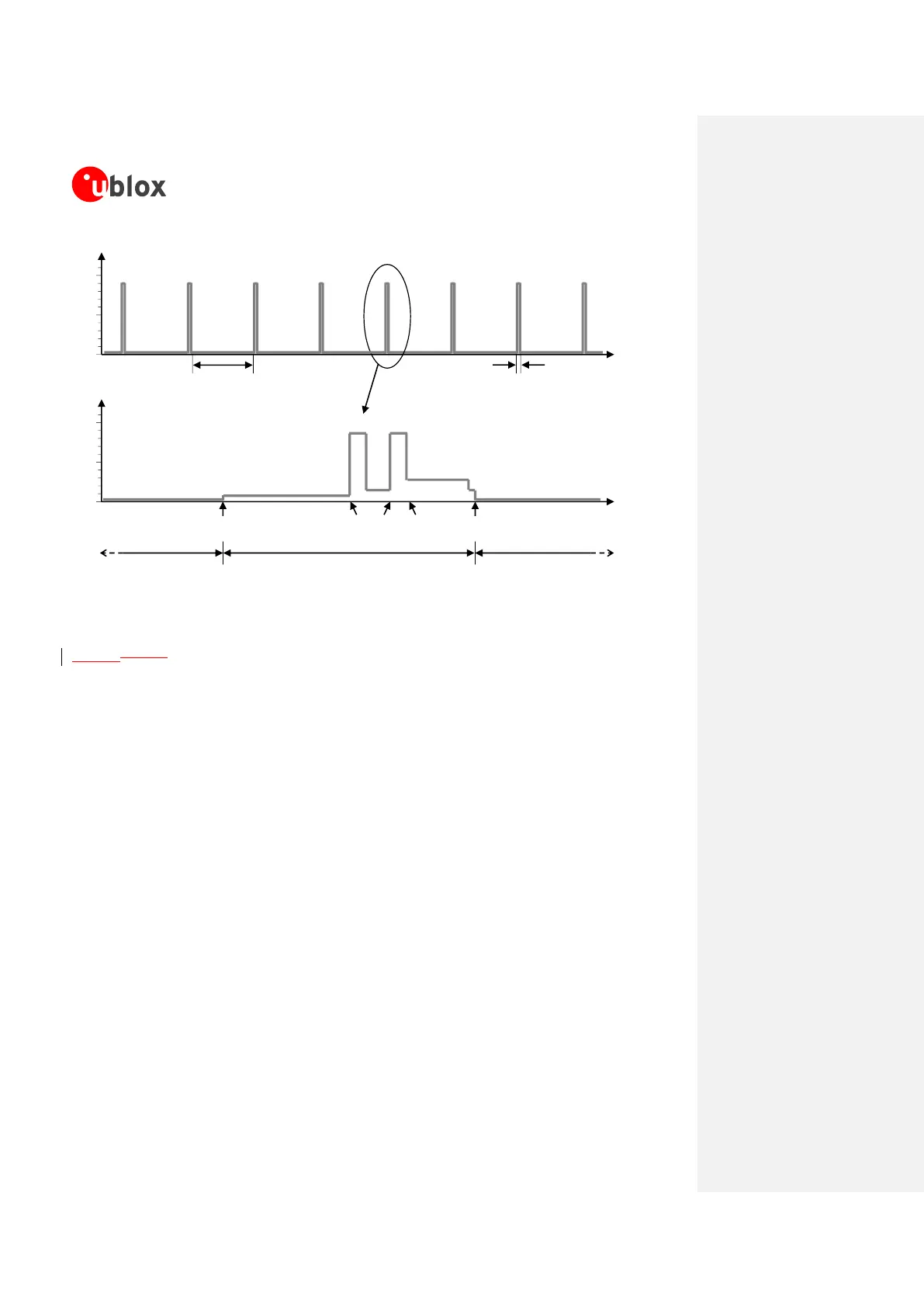

Figure 7: VCC current consumption profile versus time of the SARA-G350 modules or the SARA-G300 / SARA-G310 modules (with the
EXT32K input fed by a proper external 32 kHz signal), when registered with the network, with power saving enabled: the very low power
idle-mode is reached and periodical wake up to active-mode are performed to monitor the paging channel
Figure 8Figure 8 roughly describes the current consumption profile of SARA-G300 / SARA-G310 modules
when the EXT32K input pin is fed by the 32K_OUT output pin provided by these modules, when power
saving is enabled. The module is registered with the network, automatically enters the low power idle-
mode and periodically wakes up to active-mode to monitor the paging channel for paging block reception.
