ZED-F9P-Integration manual

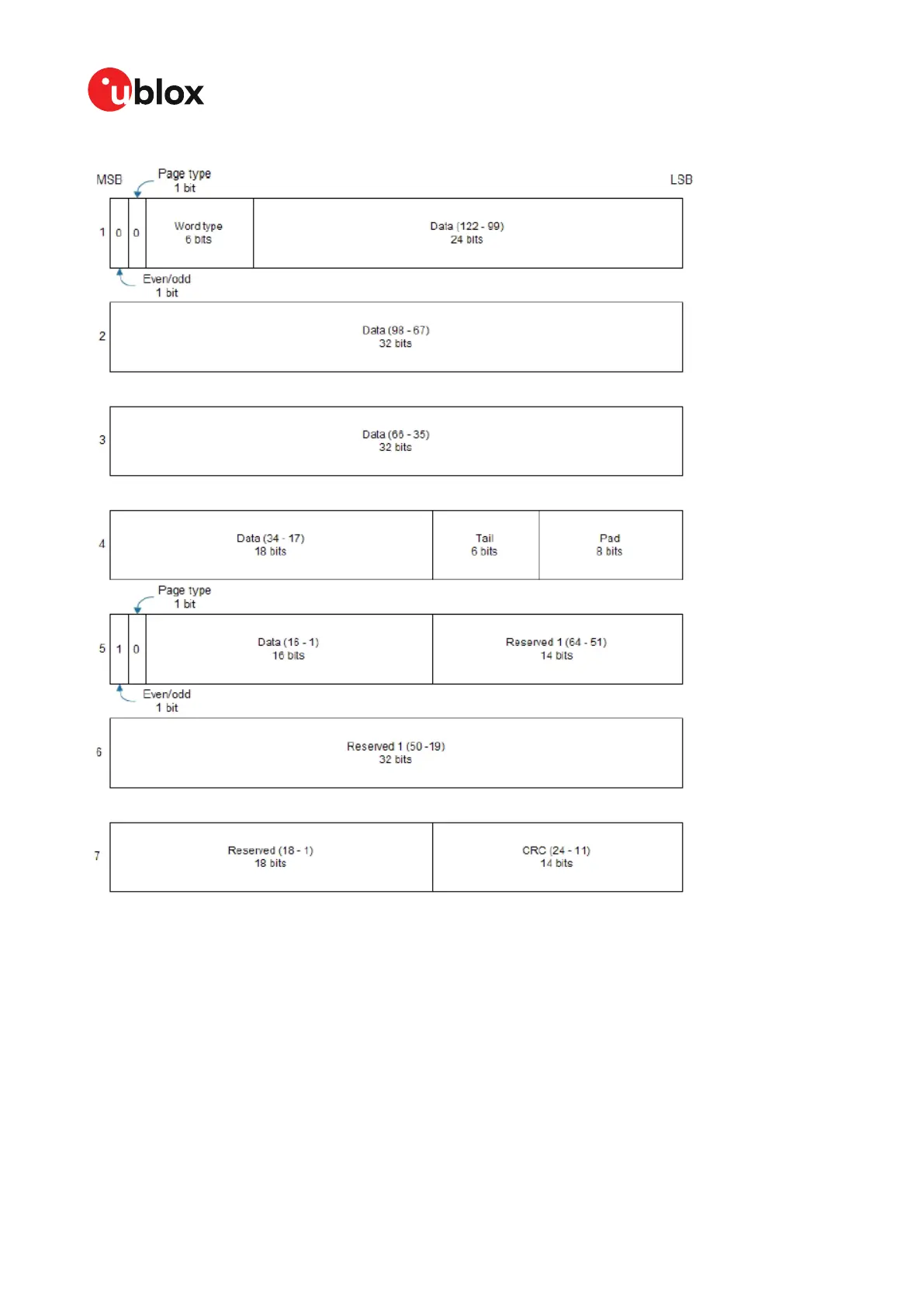

Figure 32: Galileo E5 bI/bQ subframe words
Alert pages are reported in very similar manner, but the page type bits will have value 1 and the
structure of the eight words will be slightly different (as indicated by the Galileo ICD).
3.13.1.6 SBAS
For SBAS (L1C/A) signals each reported subframe contains eight 32 data words to deliver the 250
bits transmitted in each SBAS data block.
The eight words are arranged as follows:
UBX-18010802 - R08
3 Receiver functionality Page 68 of 110
Early production information
