ZED-F9P-Integration manual

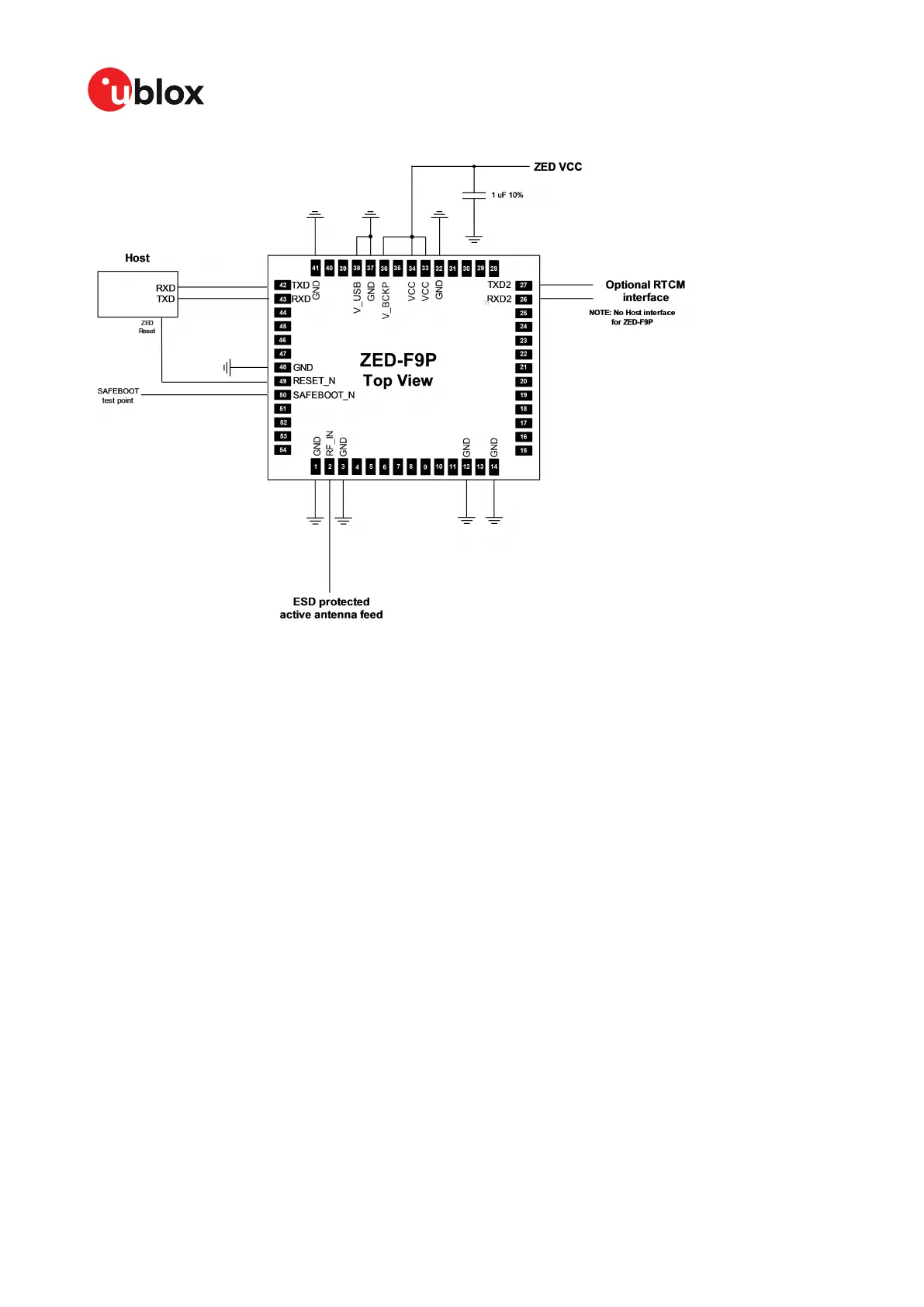

Figure 36: Minimal ZED-F9P design
For a minimal design with the ZED-F9P GNSS modules, the following functions and pins should be
considered:
• Connect the power supply to VCC and V_BCKP.
• If hot or warm start operations are needed, connect a backup battery to V_BCKP.
• If USB is not used connect V_USB to ground.
• Ensure an optimal ground connection to all ground pins of the ZED-F9P GNSS module.
• If antenna bias is required, see ZED-F9P antenna bias section.
The host interface typically supplies the RTCM messages required for RTK operation.
4.4 Antenna
u-blox recommends using an active antenna with ZED-F9P.
If an active antenna needs to be implemented in an application case, it is recommended that an
OEM active antenna module be used that meets our specification. To implement the required RF
circuitry and source the required components to meet group delay specification is not a simple
process compared to previous L1-only implementation.
UBX-18010802 - R08
4 Design Page 75 of 110
Early production information
