ZED-F9P-Integration manual

These are recommendations only and not speciﬁcations. The exact copper, solder and paste

mask geometries, distances, stencil thickness and solder paste volumes must be adapted

to the speciﬁc production processes (e.g. soldering etc.) of the customer.

Refer to the ZED-F9P Data sheet [1] for the mechanical dimensions.

4.7.2.1 Footprint

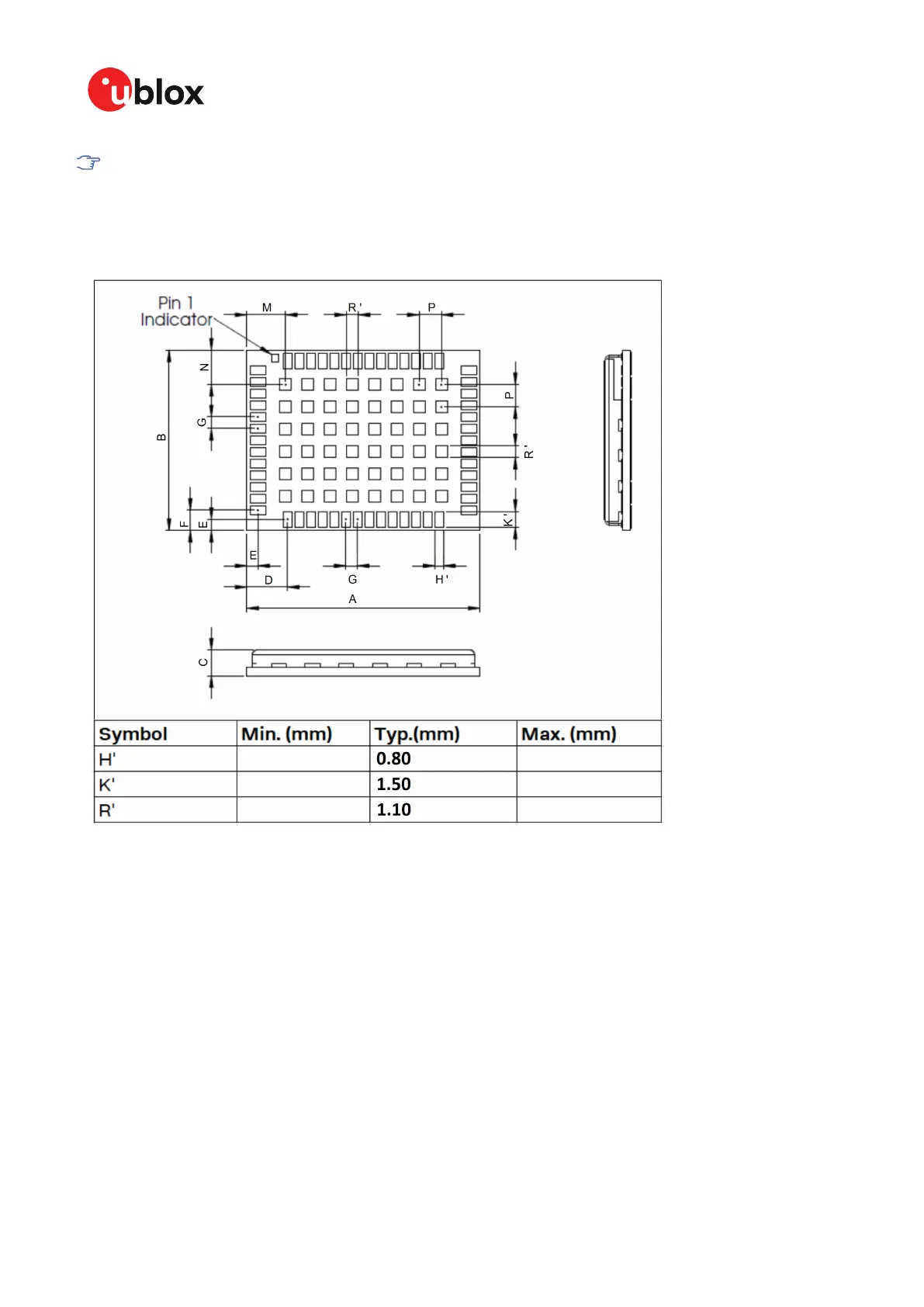

Figure 44: ZED-F9P suggested footprint (i.e. copper mask)

UBX-18010802 - R08



4 Design Page 83 of 110

Early production information
