BI2015 — Ice Maker
02/2005 7 www.U-LineService.com
™
Side-By-Side Installation
Instructions
For a complete refreshment center, install your BI2015 Ice
Maker beside a U-Line Refrigerator, Combo, or Wine
Captain Model (see Figure 11 for typical cut-out). Note
that each Side-By-Side Installation will be different.
• Cut-out width for a side-by-side installation is the total
of the widths listed under Cut-Out Dimensions in each
unit’s Installation Guide.
For example:
Placing a BI2015 Ice Maker next to a 2015 series unit
would require a cut-out width of:
15-3/16" + 15-3/16" = 30-3/8"
Placing a BI2015 Ice Maker next to a 2075 series unit
would require a cut-out width of:
15-3/16" + 24-3/16" = 39-3/8"
•
No trim kit is required. However, 1/4-inch space needs to
be maintained
between the units to ensure
unobstructed door swing.
• Units must operate from separate, properly grounded
electrical receptacles placed according to each unit’s
Electrical Specifications.
(Black and White Units Only)
Two types of custom door panels can be installed on your
Black or White unit to harmonize with or accent the
surrounding décor: a Custom 1/4" Insert or a Full Overlay.
If no custom door panel is used, go on to 5 Adjust Door.
Custom 1/4'' Door Panel Insert
Door Panel Preparation
A custom door panel can be inserted into the doorframe.
Custom door panels can be flat or raised, as long as the
maximum panel thickness where inserted into the door
reveal (channel) is 1/4"-thick. For raised panels, the depth
of the reveal is 1/4" on all four sides.
IMPORTANT
Raised panels will reduce the door’s 90° swing/zero
clearance if the unit is installed next to a wall or similar
type of structure (see Page 5).
Cut the panel insert to the following dimensions.
Custom 1/4" Dimensions:
Width: 14-1/32"
Height: 28-5/32"
The door panel must not weigh more than 20 lbs.
Door Panel Installation
Install the insert as follows:
CAUTION
Use care when handling the insert. Insert edges may be
sharp.
1. Remove top hinge screw pin (7/64" Allen wrench or
Phillips screwdriver, depending on your unit’s
construction, see Figure 12). Remove door by tilting
forward and lifting off bottom hinge pin.
1"
7"
34-1/4"
to
35-1/8"
1/4" Space
Between Appliances
23
-
11/16"

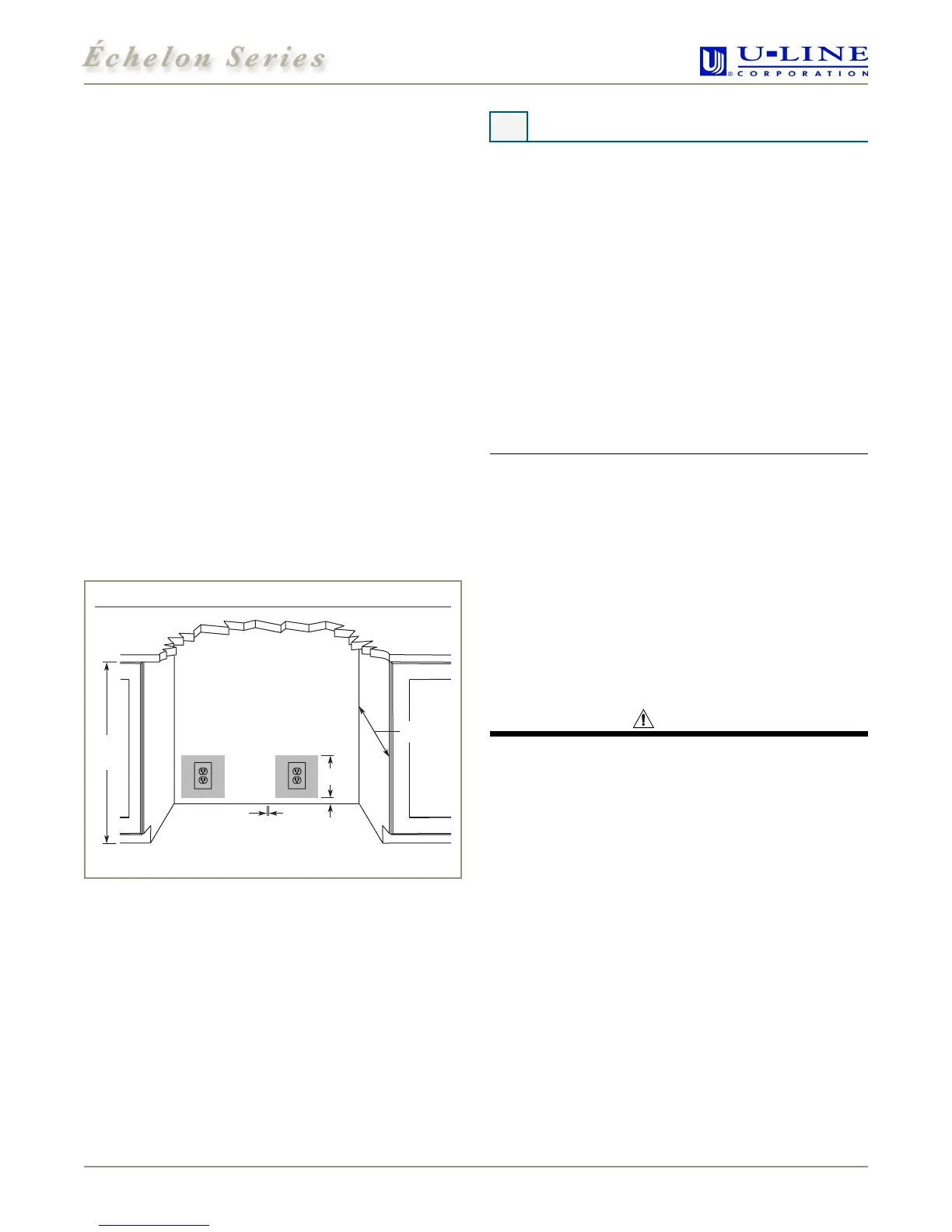

Figure 11
Typical Side-By-Side Cut-Out
4 Prepare and Install Door Panel
To Next Page
