GENERAL DESCRIPTION
H-4709 and H-4710 pallet trucks lift and transport loads
on rigid forks.
Controls for steering, braking, forward and reverse travel,
horn, lift, lower and speed control are all located on the
control handle.
NAMEPLATE AND WARNING DECAL
Nameplate and warning decal locations may vary
between models, but they are always near the steering
arm, within sight of the operator.
(See Figure 1 for H-4709 and Figure 2 for H-4710)
If the nameplate or warning decal are lost or damaged,
they should be replaced immediately. Have your
supervisor or the designated authority contact Uline for
replacement.
The nameplate shows the model number, serial number,
truck type, battery type, voltage, minimum weight and
information on load capacity and load center.
The warning decal contains warnings that also appear
in this manual.
LOAD CAPACITY
Do not overload truck. Check capacity plate for load
weight and load center information.
The load capacity depends on the load center. The
load maximum capacity listed on the capacity plate
assumes a uniform load whose center is at half the
length of the fork and centered between the forks.
The maximum load capacity is reduced when the
load center exceeds half the length of the forks or is
not centered between the forks. The fork length and
wheelbase must be adequate for the skid or bin to be
handled. (See Figure 3)
NOTE: A truck undergoing speed changes is less
stable than a standing truck. If you are not sure
that the truck can lift a certain load, consult your
supervisor or the designated authority.
GENERAL INFORMATION
Length of Forks
Load Center
Half Length

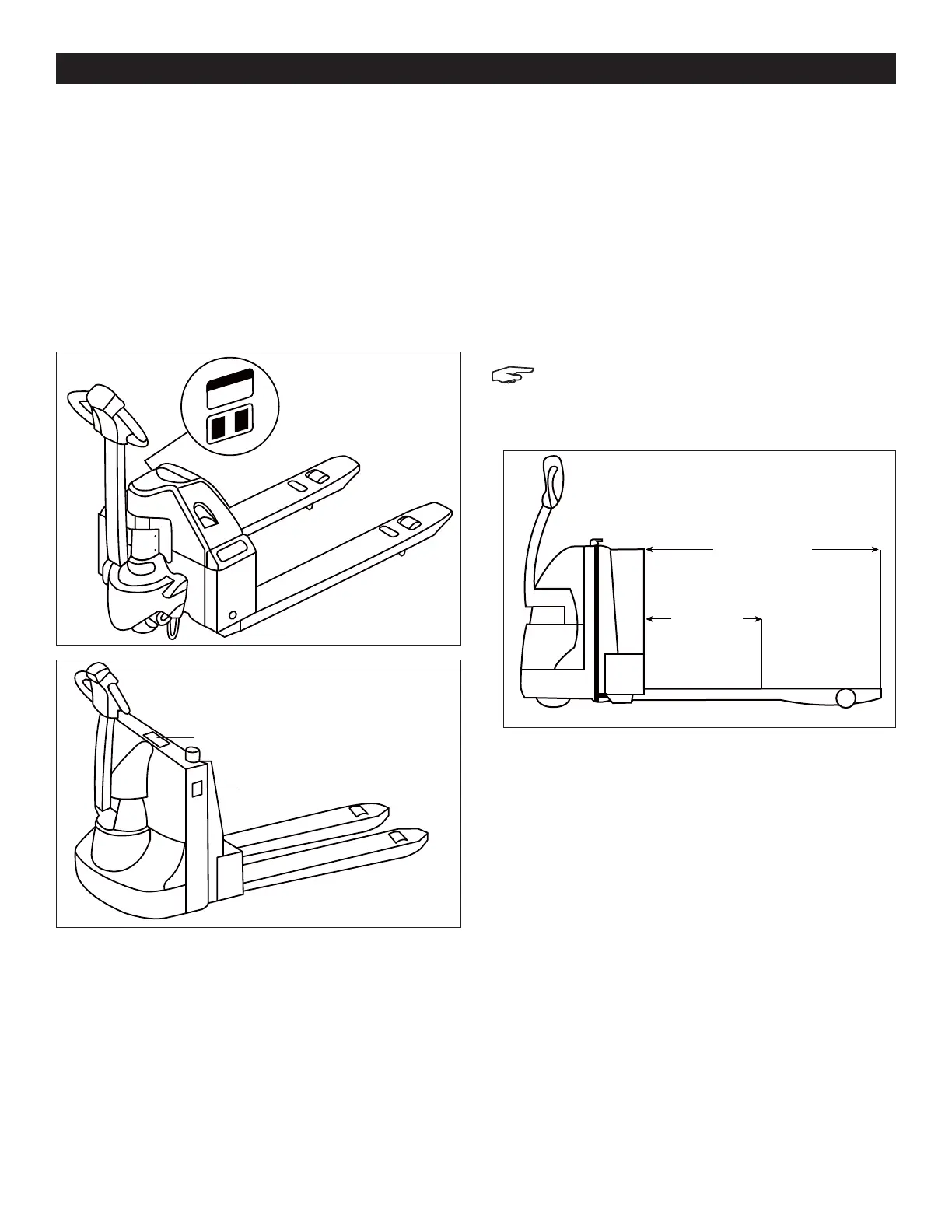

Figure 3
Nameplate
Warning Decal
Figure 1
H-4709
Nameplate
Warning Decal
Figure 2
H-4710
To Next Page
