U-Line CLR1215 User Manual

USER GUIDE
Control Operation - Service 4
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

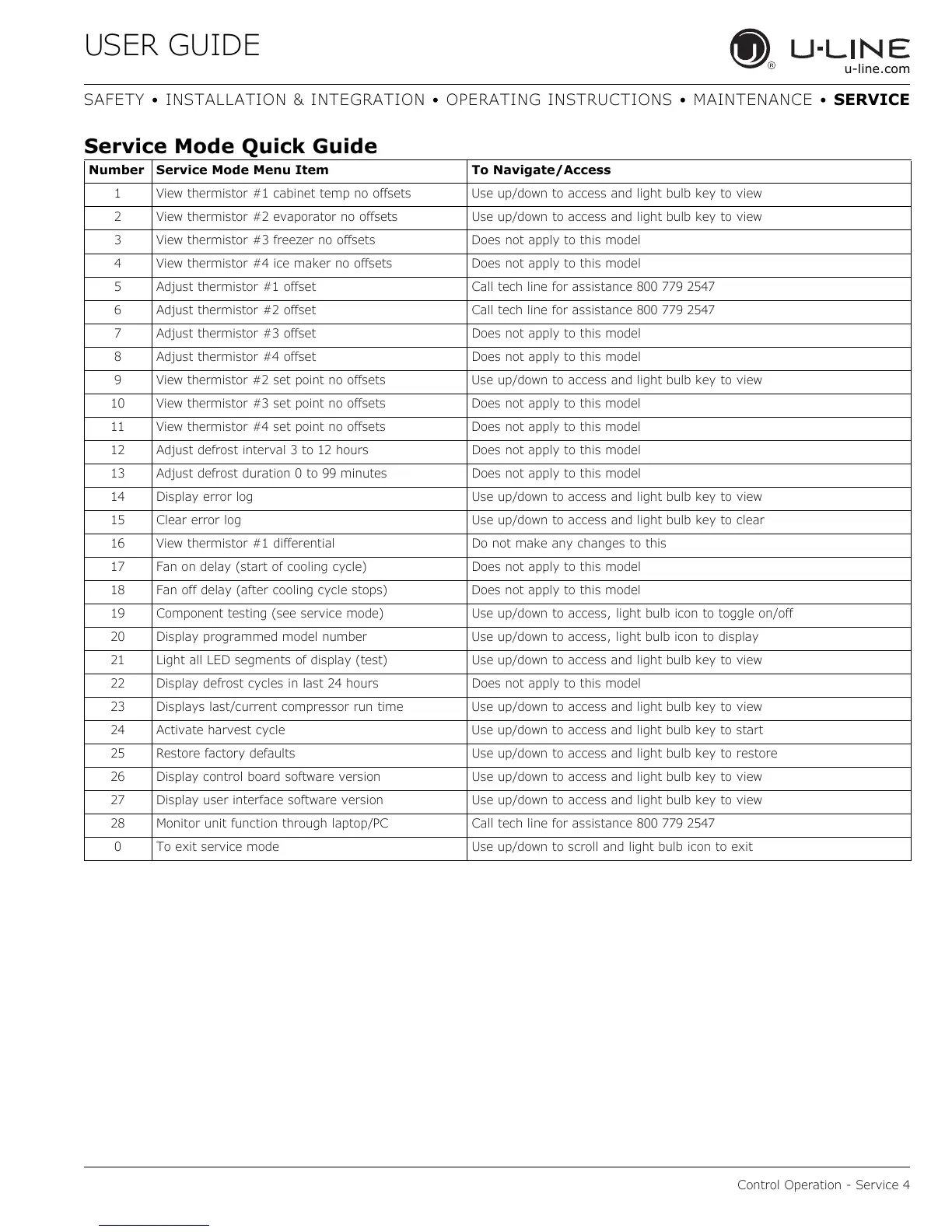

Service Mode Quick Guide
Number Service Mode Menu Item To Navigate/Access
1 View thermistor #1 cabinet temp no offsets Use up/down to access and light bulb key to view
2 View thermistor #2 evaporator no offsets Use up/down to access and light bulb key to view
3 View thermistor #3 freezer no offsets Does not apply to this model
4 View thermistor #4 ice maker no offsets Does not apply to this model
5 Adjust thermistor #1 offset Call tech line for assistance 800 779 2547
6 Adjust thermistor #2 offset Call tech line for assistance 800 779 2547
7 Adjust thermistor #3 offset Does not apply to this model
8 Adjust thermistor #4 offset Does not apply to this model
9 View thermistor #2 set point no offsets Use up/down to access and light bulb key to view
10 View thermistor #3 set point no offsets Does not apply to this model
11 View thermistor #4 set point no offsets Does not apply to this model
12 Adjust defrost interval 3 to 12 hours Does not apply to this model
13 Adjust defrost duration 0 to 99 minutes Does not apply to this model
14 Display error log Use up/down to access and light bulb key to view
15 Clear error log Use up/down to access and light bulb key to clear
16 View thermistor #1 differential Do not make any changes to this
17 Fan on delay (start of cooling cycle) Does not apply to this model
18 Fan off delay (after cooling cycle stops) Does not apply to this model
19 Component testing (see service mode) Use up/down to access, light bulb icon to toggle on/off
20 Display programmed model number Use up/down to access, light bulb icon to display
21 Light all LED segments of display (test) Use up/down to access and light bulb key to view
22 Display defrost cycles in last 24 hours Does not apply to this model
23 Displays last/current compressor run time Use up/down to access and light bulb key to view
24 Activate harvest cycle Use up/down to access and light bulb key to start
25 Restore factory defaults Use up/down to access and light bulb key to restore
26 Display control board software version Use up/down to access and light bulb key to view
27 Display user interface software version Use up/down to access and light bulb key to view
28 Monitor unit function through laptop/PC Call tech line for assistance 800 779 2547
0 To exit service mode Use up/down to scroll and light bulb icon to exit
