U-Line CLR2160 Use And Care Guide

CLR2160, CLRCO2175 17

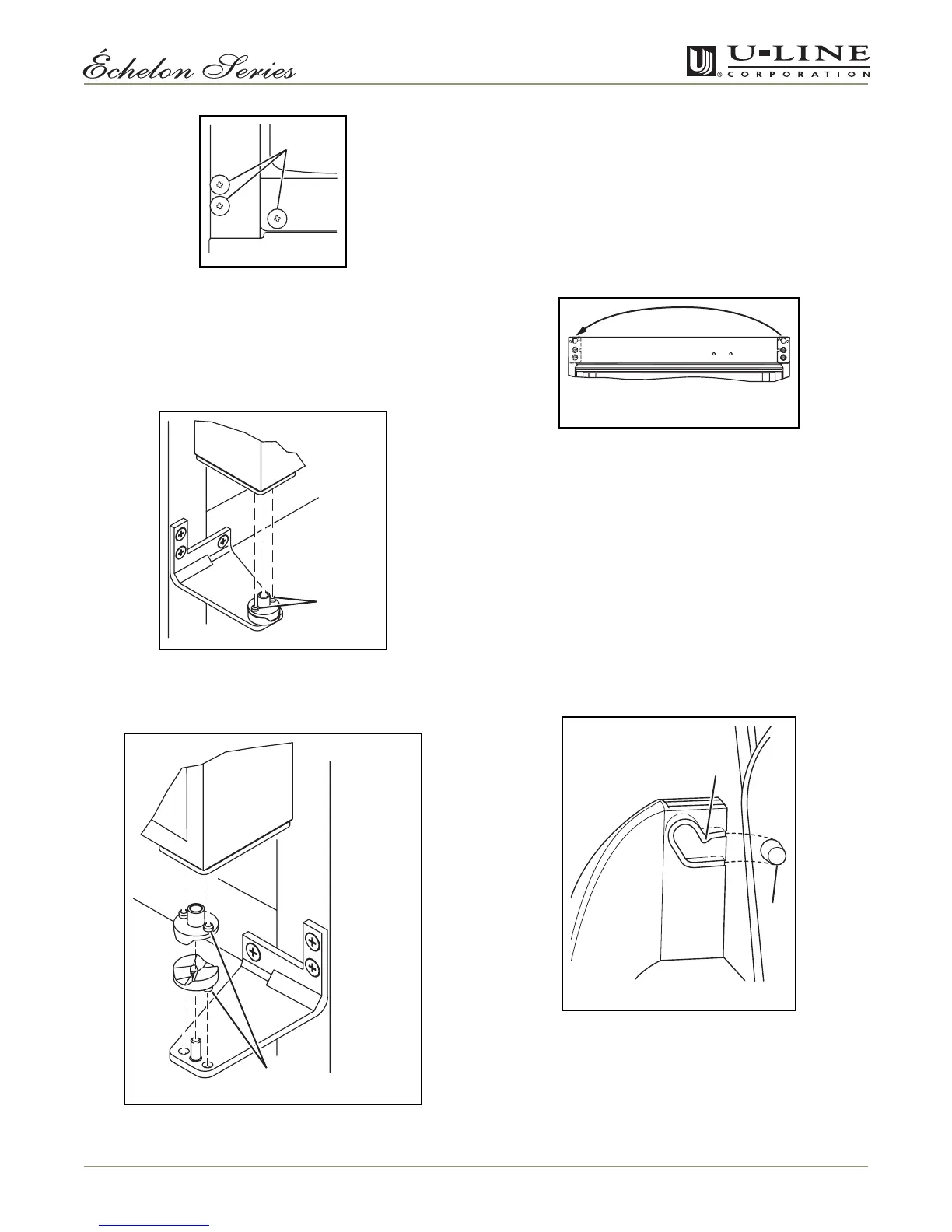

Figure 24
2. Remove plastic screw plugs (three each, top and
bottom)
(Figure 24, 1) from new hinge location. Do
not discard.
3. Remove top hinge (three screws)
(Figure 23, 2) and
reinstall hinge screw pin
(Figure 23, 1) .
Figure 25
4. Install the removed top hinge mount on opposite side
BOTTOM
(Figure 25) .
Figure 26
5. Remove the two door closer inserts (Figure 26, 1) from
the existing bottom hinge and install as shown on the
new bottom hinge (Figure 25, 1) .
6. Remove existing bottom hinge (three screws) and
remount on opposite side TOP. Remove hinge screw pin.
7. Remove the plastic hole plug from the top of the door
to allow the pivot pin to be inserted in the new
location. Install the plug into the vacated hole on the
opposite side.
Figure 27
8. With bottom of door facing up, remove pivot plate
(two screws), flip over, and remount on opposite side of
door (Figure 27) . Be sure notch in plate faces
center.
9. Holding door upright with top of door tilted forward,
place hole of door pivot plate on bottom hinge screw
pin/closer inserts
(Figure 25, 1) .
10. Tilt top of door into position in top hinge and install top
hinge screw pin.
11. Install plastic screw plugs removed in Step 2 in old hinge
holes (three each, top and bottom).
Door Shelf Removal/Insertion
Figure 28
To remove the door shelf:
1. Grasp shelf in center, lift slightly, and tilt 15°-20°.
2. Carefully pull shelf off bosses (Figure 28, 2) .
1
ULIN_0002_A
1
ULIN_0005_A
1
ULIN_0004_A
ULIN_0006_A
1
2
ULIN_0039_A
ULIN_30096_5-7-07.fm Page 17 Friday, May 11, 2007 11:06 AM
