22 CLR2160, CLRCO2175

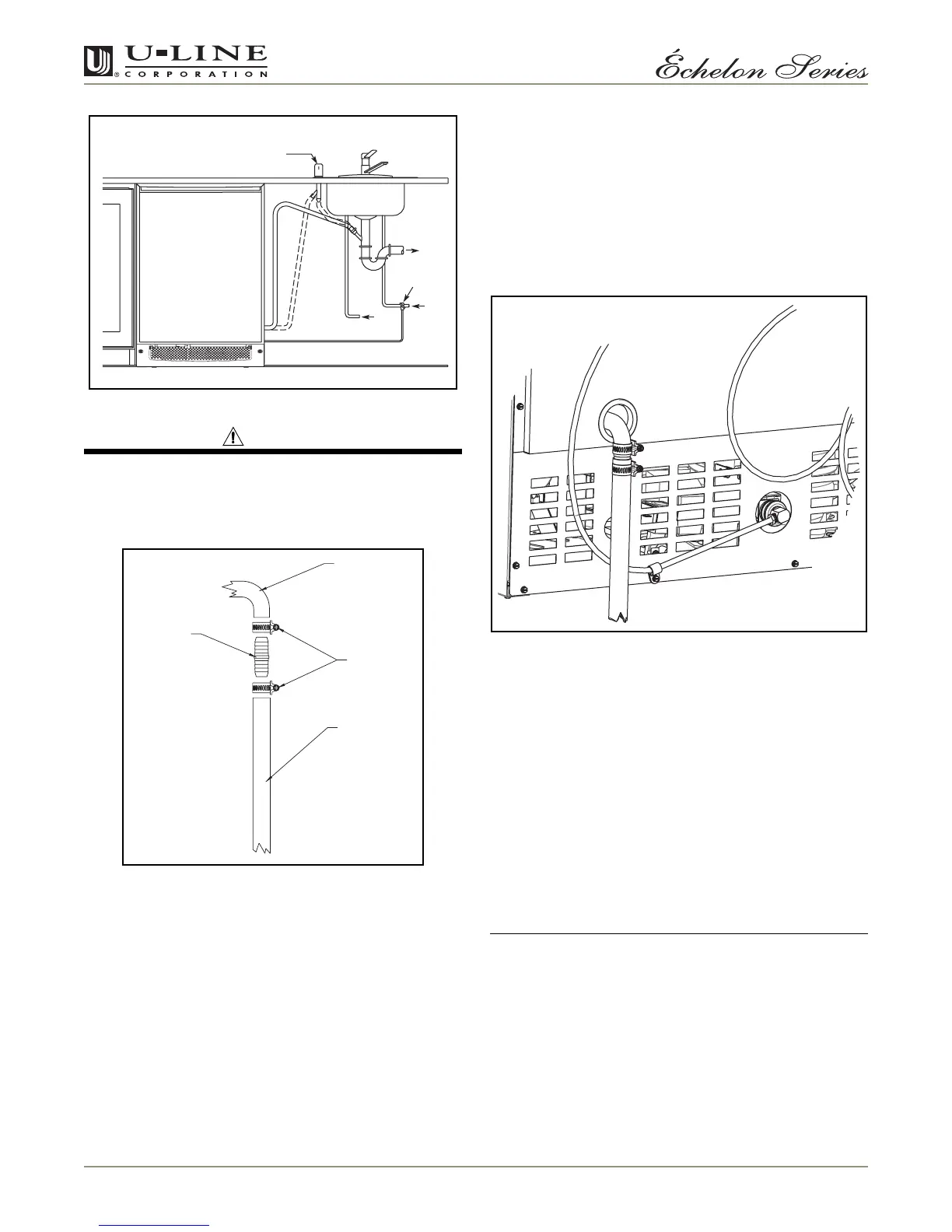

Figure 39
WARNING
To prevent accidental electrocution, make certain
that the floor surfaces surrounding the unit are
dry whenever power is removed from, or applied
to, the unit.
Figure 40
To connect to drain:
1. Slide 2 hose clamps onto the drain connection on the
rear of the appliance.
2. Insert the barbed fitting halfway into this connection.
3. On the other end of this barbed fitting attach the 5/8”
braided tubing.
4. Slide a clamp on each side of the barbed fitting as
shown
(see Figure 40).
5. Insulate the drain line, if necessary to prevent
condensation. Go on to Final Water/Drain Connection.
Page 22.
Final Water/Drain Connection
1. Connect the water supply fitting by screwing the brass
garden hose fitting to the watervalve in the rear of
the unit.
2. Tighten this fitting with pliers.
NOTE: Do not use Teflon tape or joint compound on
this fitting. The rubber washer provides an adequate
seal. Other materials could cause blockage of the valve.
Figure 41
3. Attach the copper water line to the back of the unit
using the supplied clamp and the back panel screw (see
Figure 41
, CLR2175 model shown). This will prevent
rotation of the line when moving the unit.
4. Plug in the unit and put unit into OFF mode by holding
the power key for 10 seconds. Not doing this will cause
the unit to fill with water for 3 minutes.
5. Turn on the water supply and ensure the connections
are free of leaks.
6. Begin to push the appliance into the desired cabinet
opening. The copper tubing should remain in 2 coils
behind the unit.
IMPORTANTIMPORTANT
Normal operation creates some vibration. A water
supply line contacting cabinet wall may cause
excessive noise during operation or damage to the
line.
7. While pushing the unit into the opening, continuously
reroute the drain tube to avoid kinks. The most
common installation pulls the slack into an adjacent
cabinet or basement area.
8. If installing a gravity drain, ensure you provide proper
slope.
Waste
Cold
Water
Shut-Off
Valve
Hot
Water
Air Gap
(Optional Hook-Up)
Y-Branch Tailpiece
P60 Pump Required
ULIN_0573a_A
Drain Fitting from
Back of Unit
Worm Clamps
Drain Line
5/8" x 5/8"
Barb Connector
ULIN_S_0166b2_A
ULIN_S_0166b1_A
