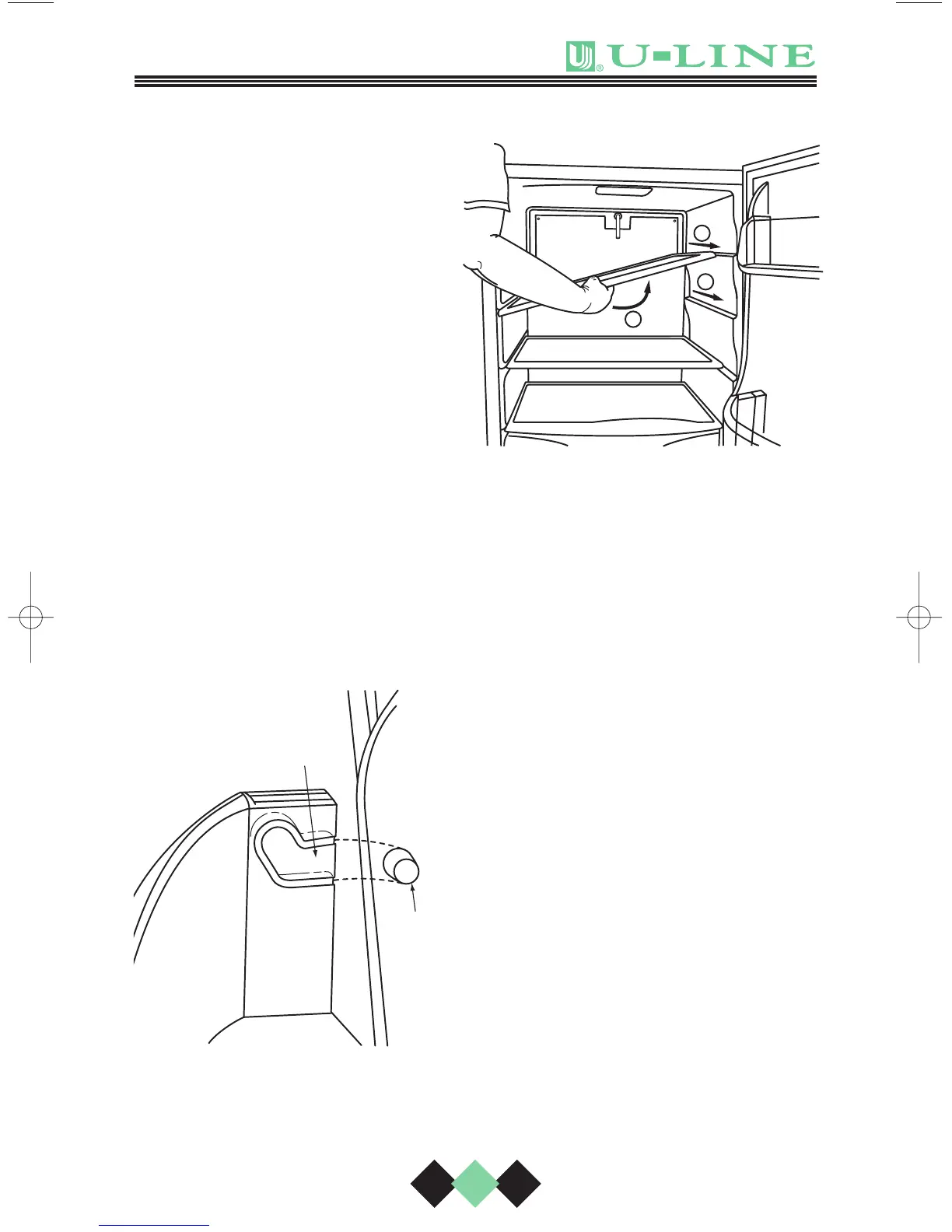

Figure 30
DOOR SHELF
REMOVAL/INSERTION
To Remove Door Shelf (see
Figure 30):
1. Grasp shelf in center, lift
slightly, and tilt 15°-20°.
2. Carefully pull shelf off bosses.
To Install Door Shelf:
1. Holding shelf in center, align
notches in shelf with bosses
in door.
2. Tilt shelf at a 15°-20° angle
and slide onto bosses at the
desired location.
GLASS SHELF REMOVAL/INSTALLATION
Removal (see Figure 29)
1. Pull shelf out about 6" until
back of shelf clears the
“hump” on the right hand
side.
2. Tilt right hand edge of shelf
up.
3. Remove shelf from unit by
pulling out.
Adjustment/Installation
1. To move to a different position in the unit, insert shelf at an angle,
approximately 15-20°, over the rib in the side of the unit where you
want to place the shelf. The shelf must be started into the unit at
an angle to clear the door.
2. Continue to slide the shelf into the unit at an angle until it clears
the door. Lower the shelf and rest it on the rib.
