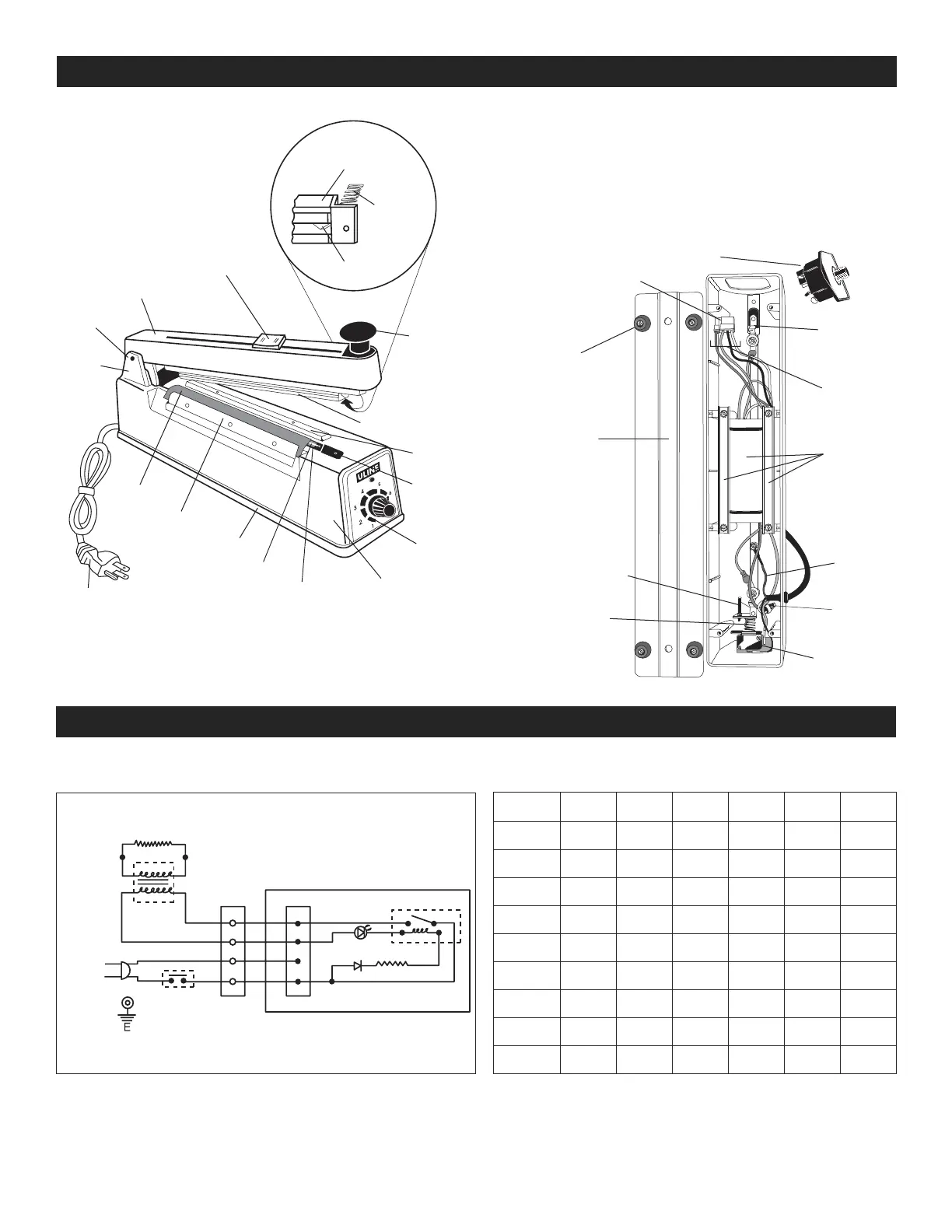

PARTS
MODEL 1 MIL 2 MIL 3 MIL 4 MIL 6 MIL 8 MIL
H-458 3 3 3 4 5 5
H-161 3 3 3 4 5 5
H-163 3 3 3 4 5 5
H-190 3 3 3.5 4 5.5 5.5
H-293 3 3 3.5 4 5.5 5.5
H-306 3 3 3.5 4 5.5 5.5
H-963 3 3 3.5 4 5 5
H-1029 3 3 3.5 4 5.5 5.5
H-1252 3 3 3.5 4 5 5
SPECIFICATIONS
RECOMMENDED SETTINGSCONNECTION DIAGRAM
BOTTOM VIEW
SEALING ARM
(H-161, H-293, H-963
and H-1252 only)
Pressure Plate
Assembly
Pressure
Plate
Spring
Cutting Blade
Handle Knob
Rubber Pressure Pad
Rear Metal
Plate
Heating
Element
Cover
Hinge
Bracket
Timer Assembly
Sealer Body
Lower Teflon Tape
Heating Element
Sealing Platform
Front Metal Plate
Teflon Cover
Power Cord
Hinge Pin
Sealing Arm
Cutting Blade
Bracket Assembly
(H-161, H-293, H-963
and H-1252 only)
Base Plate
Rubber Foot
Timer Assembly
Timer Connector
Plug
Microswitch
Adjustment
Screw
Arm Return
Spring
Bow
Spring
Assembly
Internal
Wiring
Transformer
& Support
Brackets
Ground
Wire
(green)
Wire Nut
Microswitch
Assembly
Heating Element
Transformer
Relay DC24V
Sealing Light
Control P.C.B
Timer
D R
N
L
Source
Connector
Microswitch
