ASSEMBLY
1. Verify all parts are present before beginning.
Hardware is located in a white box.
2. Flip the tabletop upside down. Take one leg at a time
and loosely attach the end of the leg to the tabletop
using one bolt, two washers and one nut. The leg
braces are an inside mount. The legs are labeled
left and right. Match the legs to the left and right
markings on the underside of the table.
(See Figure 1)
3. Insert the cross brace with the umbrella holder
facing upward and loosely bolt to the corresponding
corners using one bolt, two washers and one nut.
(See Figures 2a-b)
4. Flip the table upright and loosely attach the four
bench seats to the legs with the leg braces having
an inside mount. (See Figure 3)
5. Ensure the tabletop and bench seats are level, then
tighten each bolt, finishing with the cross brace.

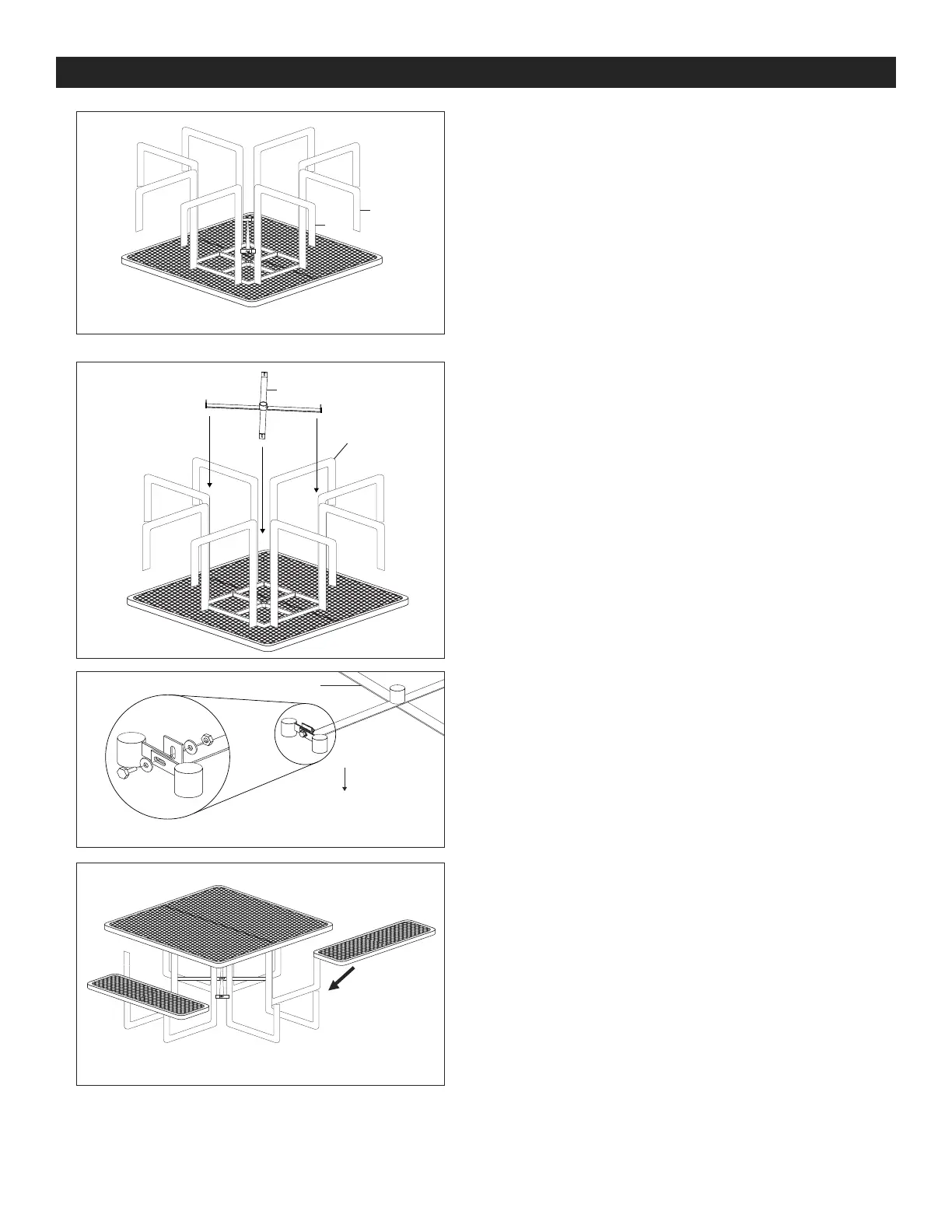

Figure 1
Figure 2a
Figure 2b
Figure 3
Left
Right
Cross Brace
Table Leg
underside
of table
Cross Brace
To Next Page
