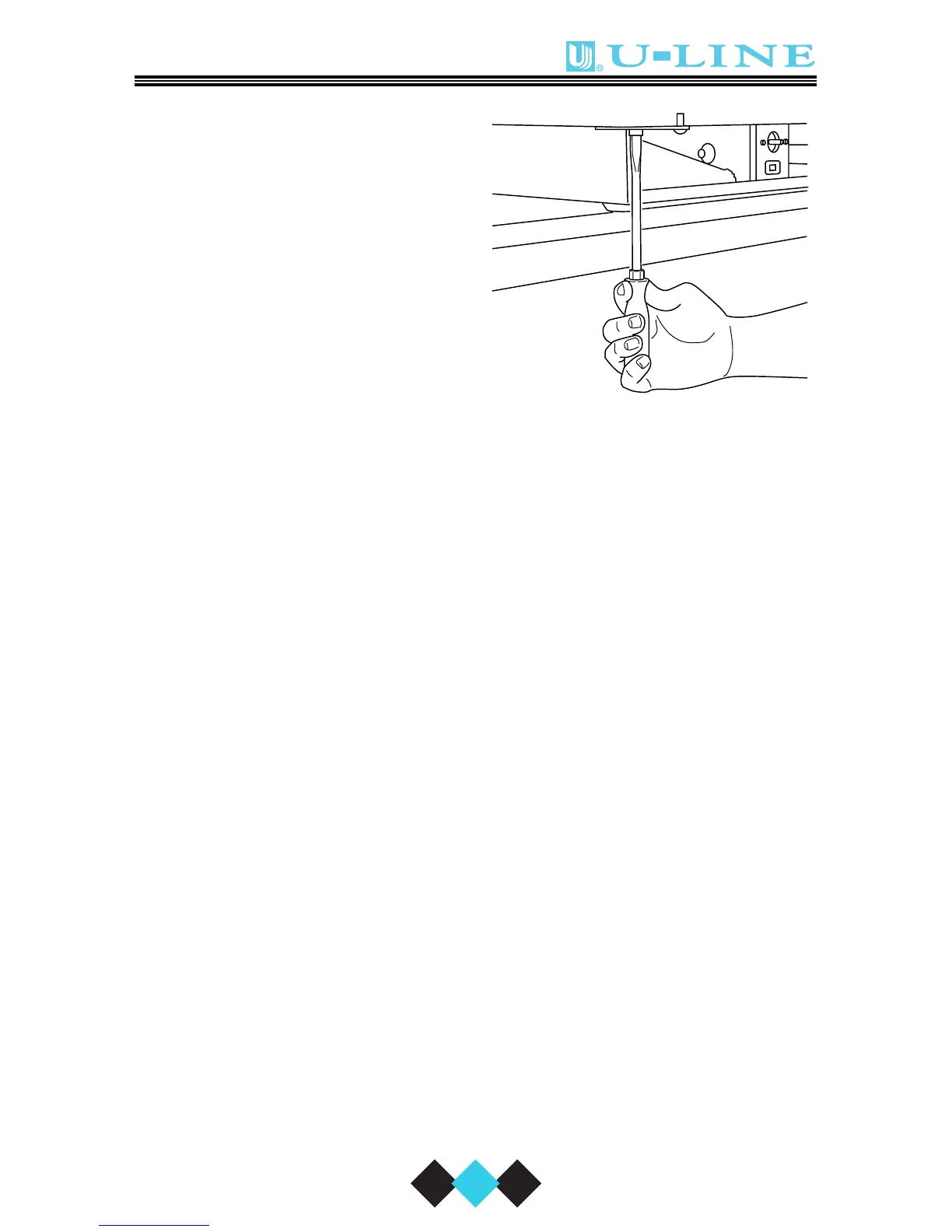

8. Install bottom hinge on cabi-
net, opposite side, aligning
flat edge of hinge with outer
edge of unit. Partially tighten
screws until door is aligned.
See Figure 23.
9. Relocate plastic spacer/
bushing on bottom of door to
opposite side, and place door
on bottom hinge pin (see
Figure 18). Clean out bush-
ing hole in door bottom with
a screwdriver if needed.
10. Place door on lower hinge pin. Align flat edge of top hinge with
outer edge of unit and fasten upper hinge to unit (4 screws).
Partially tighten screws until door is aligned. See Figure 21.
11. Adjust door to assure proper seal. Tighten upper and lower hinge
screws securely.
12. Replace four plastic plugs removed in step 5 into holes on top of
unit. Replace screws in holes in bottom of unit, opposite side.
13. Reinspect door seal and alignment. Adjust if needed.
14. Reinstall grill (1 screw).
ALIGNING THE DOOR
For proper door alignment:
1. Loosen top and bottom hinge screws (see Figure 14).
2. Align door squarely with cabinet.
3. Assure gasket is firmly in contact with cabinet all the way around
the door (no gaps).
4. Tighten bottom hinge screws.
5. Tighten top hinge screws.
15
