12 u-line.com
Door Panel Preparation
BI-95, BI-2115B(WH), WH95BTP
A custom door panel may be inserted into the doorframe. Custom
door panels can be flat or raised, as long as the maximum panel
thickness, where inserted into the door reveal (channel), is no
more than 1/4" thick. For raised panels, the depth of the reveal is
1/4" on all four sides.
Raised panels will reduce the door’s 90° swing/zero
clearance if the unit is installed next to a wall or similar
type of structure.
Panel Dimensions
The door panel must not weigh more than 20 lbs.
Door Panel Installation (98, SP18, &
ADA15)
Install the insert as follows:
Use care when handling the insert. Insert edges may be
sharp.

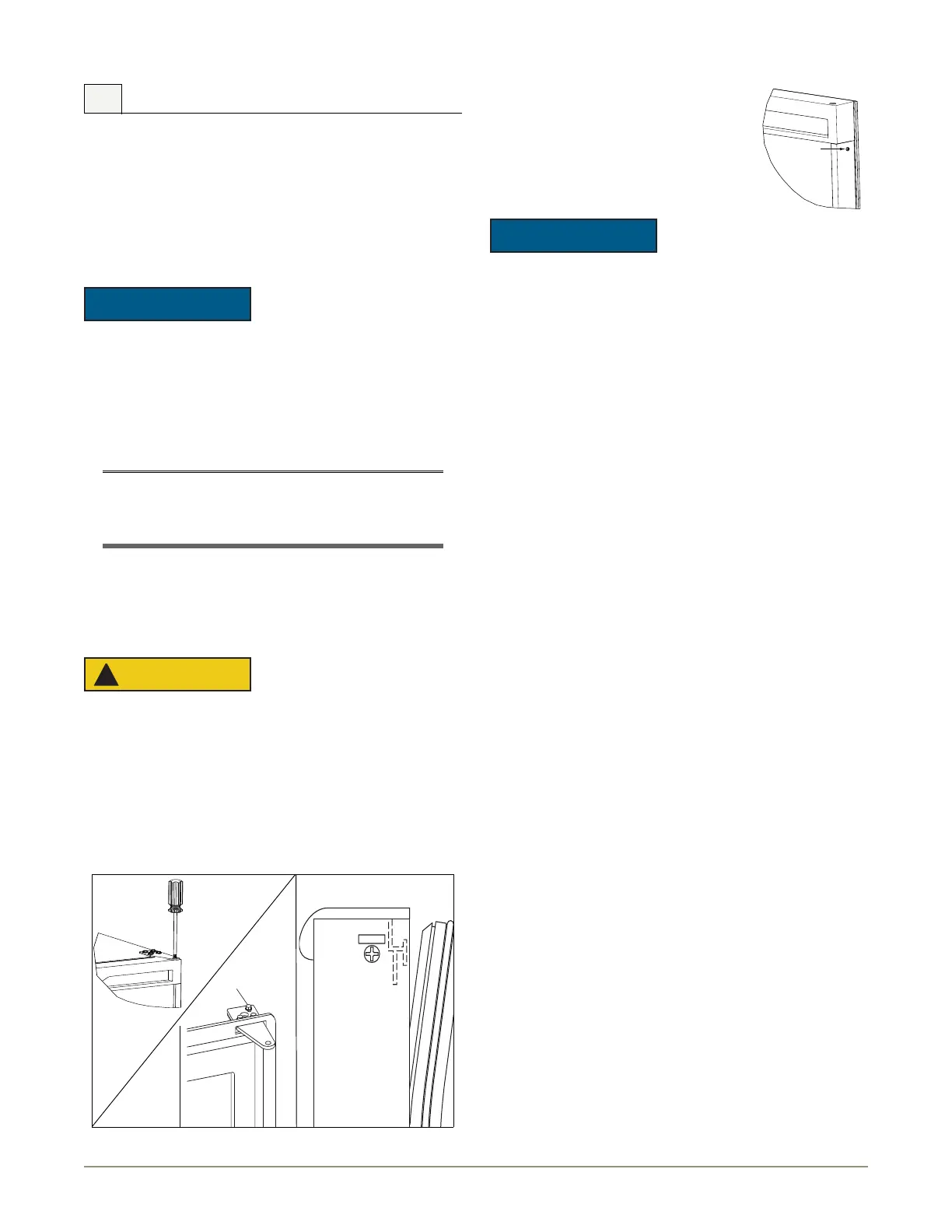

1. Remove top hinge screw pin with Phillips head screwdriver.
Remove door by tilting forward and lifting off bottom hinge pin.
2. Pull door gasket out of groove (top edge of door only). Start in
the middle and pull outward, moving toward the edge. This may
take some force.
3. Remove the two outside screws holding
door handle. Slightly separate door
handle from door.
4. Pull handle up and off.
5. Slide custom door panel insert into
1/4-inch channel in door front.
NOTICE
Some units include a magnet on the bottom of the door.
Use care not to damage magnet, when installing door
insert. Do not set door on bottom edge when pushing
insert into place.
6. Holding door gasket out of the way, replace handle on door,
making sure it is seated properly on insert and that screw holes
line up.
7. Install two small screws removed in
Step 3
.
8. Starting at the corners and working inward, push door gasket
into place on door.
9. Place door on bottom hinge pin and install upper hinge screw.
7 Door Panel Installation
Model Width Height
BI-95 12-15/16" 13-15/32"
BI-2115 14-1/32" 27-11/16"
BI95BTP 12-15/16" 13-15/32"
