REPLACING ICE MAKER ASSEMBLY (CO29F
ONLY)
1. Unplug the unit from the main power source.
2. Disconnect ice maker wire harness at plug (1).
3. Remove control capillary tube from sensing tube on ice
maker assembly (2).
4. Remove water inlet tube.
5. Remove front cover (3).
6. Advance the ejector blade to the 3 o’clock position by
turning the 5/16" hex head on the small brass gear
counterclockwise (4).
7. Remove three screws from wall of freezer housing (5).
8. Remove ice maker assembly.
9. Place new ice maker assembly into position and secure
with three screws (5).
10.Reconnect wire harness at plug.
11.Insert control capillary tube into ice maker sensing
tube.
12.Insert water inlet tube.
13.Apply Permagum
®
to all exit holes.
14.Install back panel.
15.Plug in unit and test.

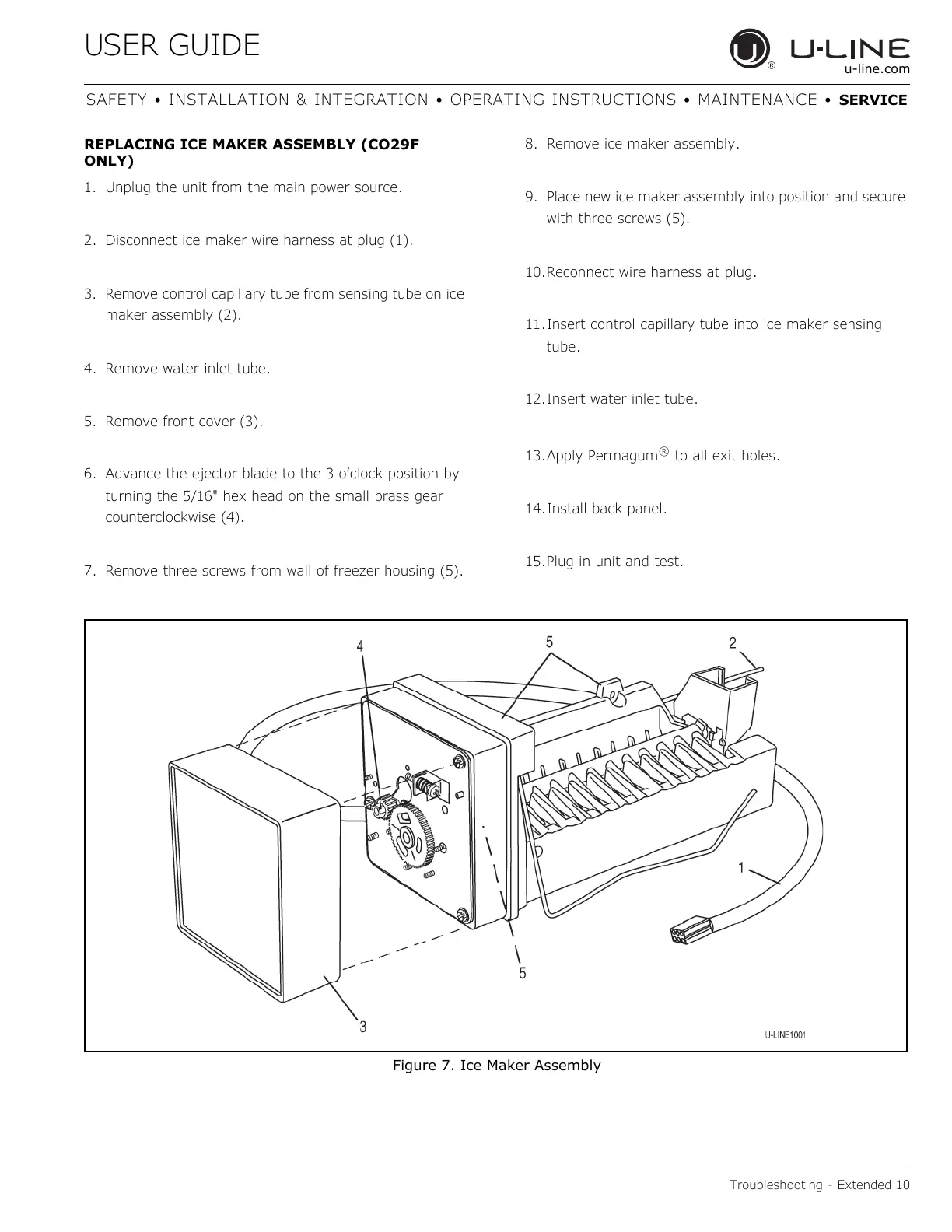

Figure 7. Ice Maker Assembly
